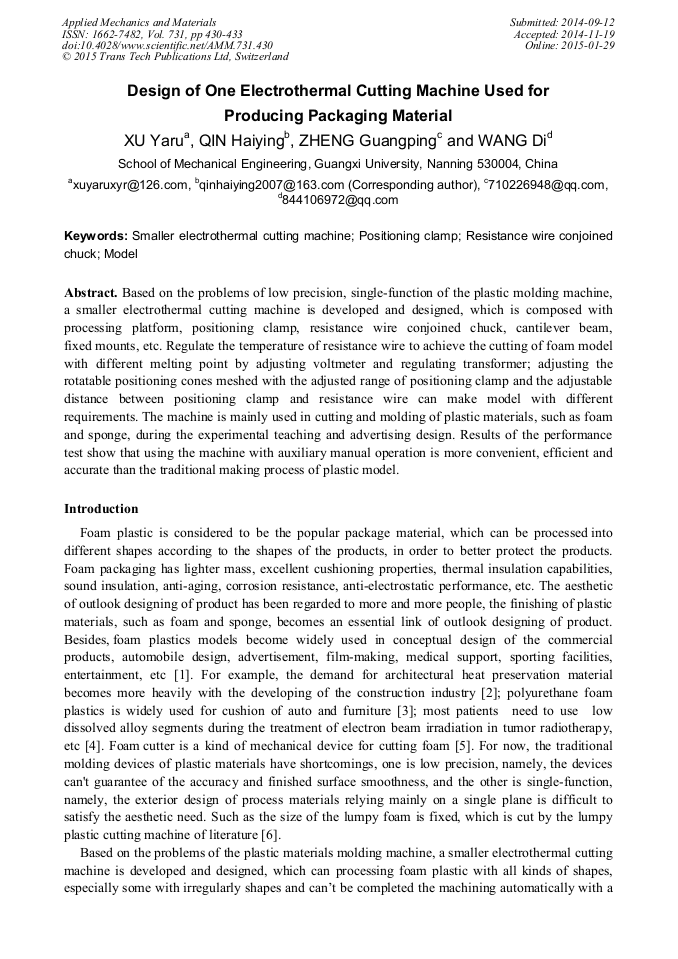

Design of one Electrothermal Cutting Machine Used for Producing Packaging Material

Abstract:

Based on the problems of low precision, single-function of the plastic molding machine, a smaller electrothermal cutting machine is developed and designed, which is composed with processing platform, positioning clamp, resistance wire conjoined chuck, cantilever beam, fixed mounts, etc. Regulate the temperature of resistance wire to achieve the cutting of foam model with different melting point by adjusting voltmeter and regulating transformer; adjusting the rotatable positioning cones meshed with the adjusted range of positioning clamp and the adjustable distance between positioning clamp and resistance wire can make model with different requirements. The machine is mainly used in cutting and molding of plastic materials, such as foam and sponge, during the experimental teaching and advertising design. Results of the performance test show that using the machine with auxiliary manual operation is more convenient, efficient and accurate than the traditional making process of plastic model.

You might also be interested in these eBooks

Advanced Printing and Packaging Materials and Technologies

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 731)

Pages:

430-433

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.731.430

Citation:

Cite this paper

Online since:

January 2015

Authors:

Ya Ru Xu, Hai Ying Qin*, Guang Ping Zheng, Di Wang

Keywords:

Model, Positioning Clamp, Resistance Wire Conjoined Chuck, Smaller Electrothermal Cutting Machine

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Brooks H, Aitchison D: Rapid Prototyping Journal, 16(5) (2010), pp.318-327.

Google Scholar

[2] Zhang Hongwei, Qin Guoxi, Wang Xiaoyu: Journal of Henan mechanical and electrical college, 20 (3) (2012), pp.10-12.

Google Scholar

[3] Jouaneh M, Hammad A, Datseris P: International Journal of Machine Tools and Manufacture, 37(4) (1997), pp.437-449.

DOI: 10.1016/s0890-6955(96)00022-3

Google Scholar

[4] Tao Huanming: Medical Equipment, 16 (11) (2004), pp.16-16.

Google Scholar

[5] Mu Cunyuan, Wang Liren, Bai Yunfeng: 2010 international seminar on industrial design and proceedings of the 15th national industrial design academic conference, (2010).

Google Scholar

[6] Li Tonglian: Plastics Technology, 1988, 3: 020.

Google Scholar
