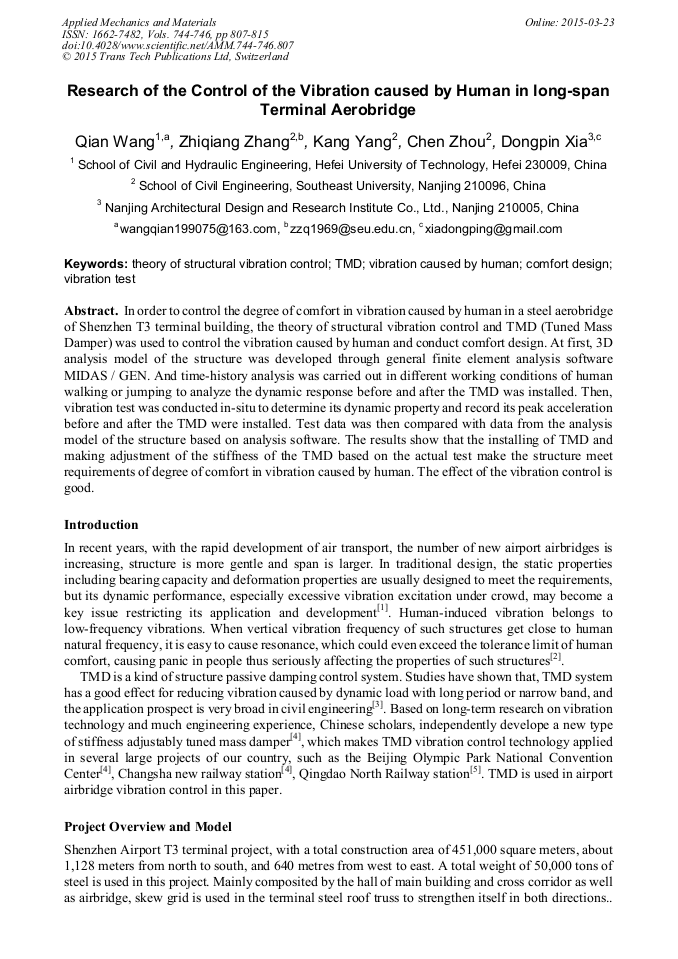

Research of the Control of the Vibration Caused by Human in Long-Span Terminal Aerobridge

Abstract:

In order to control the degree of comfort in vibration caused by human in a steel aerobridge of Shenzhen T3 terminal building, the theory of structural vibration control and TMD (Tuned Mass Damper) was used to control the vibration caused by human and conduct comfort design. At first, 3D analysis model of the structure was developed through general finite element analysis software MIDAS / GEN. And time-history analysis was carried out in different working conditions of human walking or jumping to analyze the dynamic response before and after the TMD was installed. Then, vibration test was conducted in-situ to determine its dynamic property and record its peak acceleration before and after the TMD were installed. Test data was then compared with data from the analysis model of the structure based on analysis software. The results show that the installing of TMD and making adjustment of the stiffness of the TMD based on the actual test make the structure meet requirements of degree of comfort in vibration caused by human. The effect of the vibration control is good.

• Periodical: Applied Mechanics and Materials (Volumes 744-746)
• Pages: 807-815
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.744-746.807
• Online since: March 2015
• Authors: Qian Wang, Zhi Qiang Zhang*, Kang Yang, Chen Zhou, Dong Pin Xia
• Keywords: Comfort Design, Theory of Structural Vibration Control, TMD, Vibration Caused by Human, Vibration Test

References

[1] Yu Lou, Zuochao Lv, Jian Huang. Floor vibration comfort design due to human walking [J]. Special Structures, 2011, 28(2): 1-4. （In Chinese）.

[2] Xiang Hao, Weiming Yang, Ailin Zhang. Research of effects of coupling beam slab structure and human body under pedestrian excitation [J]. Journal of Vibration and Shock, 2008, 27(10): 130-133. （In Chinese）.

[3] Qingyang Xu, Aiqun Li, Zhiqiang Zhang, et al. Research of the vibration control of long-span suspension structure Considering human comfort [J]. Journal of Vibration and Shock, 2008, 27(4): 139-142. （In Chinese）.

[4] Aiqun Li, Xin Chen, Zhiqiang Zhang. Design and analysis on vibration control of long-span floor structures [J]. Journal of building structures, 2010, 31(6): 160-170. （In Chinese）.

[5] Zhiqiang Zhang, Xinyi Hu, Xiangyong Zhang, et al. Vibration-reduction design on west-wide hall of Qingdao North Railway Station [J]. Building Structure, 2013, 43(23): 17-22. （In Chinese）.

[6] Matsumoto Y. Nishioka T. and Shiojiri H. Dynamic design of footbridges[C]: International Association for Bridge and Structural Engineering, Proceedings 1978: 17-28.

[7] American Institude of Steel Constrution, Canadian Institude of Steel Construction. Floor vibrations due to hunman sctivity (Steel design guide series 11) [S]. (1997).

[8] Sétra. Assessment of Vibrational Behavior of Footbridges under Pedestrian Loading[S]. (2006).

[9] Zhengqing Chen. Vibration and dynamic design of footbridge [M]. Beijing: China Communications Press，2009. （In Chinese）.

[10] Yu Lou, Jian Huang, Zuochao Lv. Vibration comfort design of floor system [M]. Beijing: Science Press, 2012. （In Chinese）.
