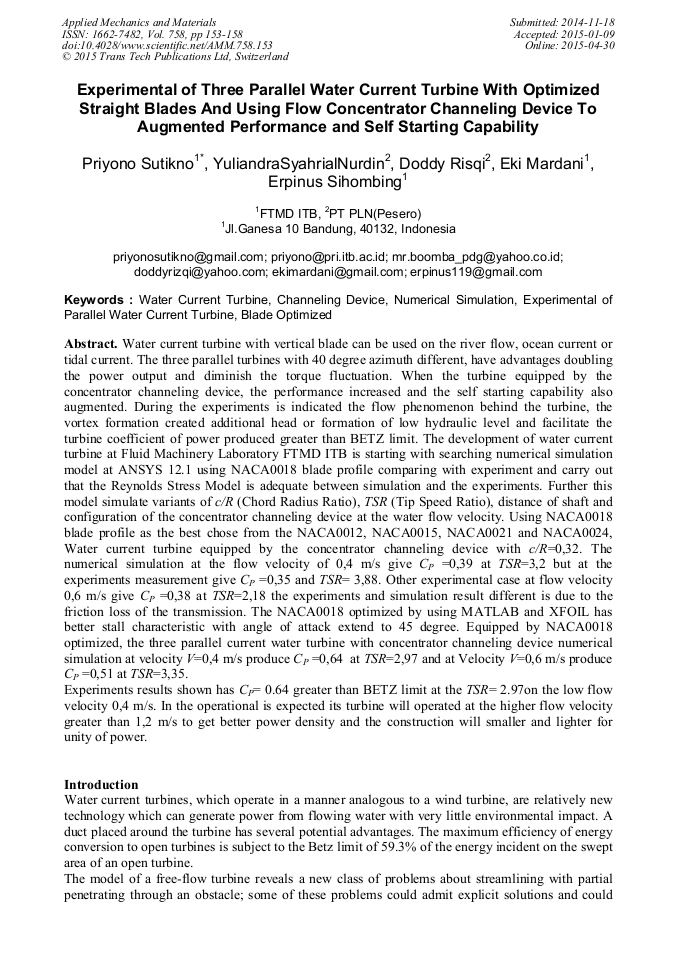

Experimental of Three Parallel Water Current Turbine with Optimized Straight Blades and Using Flow Concentrator Channeling Device to Augmented Performance and Self-Starting Capability

Abstract:

Water current turbine with vertical blade can be used on the river flow, ocean current or tidal current. The three parallel turbines with 40 degree azimuth different, have advantages doubling the power output and diminish the torque fluctuation. When the turbine equipped by the concentrator channeling device, the performance increased and the self-starting capability also augmented. During the experiments is indicated the flow phenomenon behind the turbine, the vortex formation created additional head or formation of low hydraulic level and facilitate the turbine coefficient of power produced greater than BETZ limit. The development of water current turbine at Fluid Machinery Laboratory FTMD ITB is starting with searching numerical simulation model at ANSYS 12.1 using NACA0018 blade profile comparing with experiment and carry out that the Reynolds Stress Model is adequate between simulation and the experiments. Further this model simulate variants of c/R (Chord Radius Ratio), TSR (Tip Speed Ratio), distance of shaft and configuration of the concentrator channeling device at the water flow velocity. Using NACA0018 blade profile as the best chose from the NACA0012, NACA0015, NACA0021 and NACA0024, Water current turbine equipped by the concentrator channeling device with c/R=0,32. The numerical simulation at the flow velocity of 0,4 m/s give C_P =0,39 at TSR=3,2 but at the experiments measurement give C_P =0,35 and TSR= 3,88. Other experimental case at flow velocity 0,6 m/s give C_P =0,38 at TSR=2,18 the experiments and simulation result different is due to the friction loss of the transmission. The NACA0018 optimized by using MATLAB and XFOIL has better stall characteristic with angle of attack extend to 45 degree. Equipped by NACA0018 optimized, the three parallel current water turbine with concentrator channeling device numerical simulation at velocity V=0,4 m/s produce C_P =0,64 at TSR=2,97 and at Velocity V=0,6 m/s produce C_P =0,51 at TSR=3,35. Experiments results shown has C_P= 0.64 greater than BETZ limit at the TSR= 2.97on the low flow velocity 0,4 m/s. In the operational is expected its turbine will operated at the higher flow velocity greater than 1,2 m/s to get better power density and the construction will smaller and lighter for unity of power. Keywords : Water Current Turbine, Channeling Device, Numerical Simulation, Experimental of Parallel Water Current Turbine, Blade Optimized

• Periodical: Applied Mechanics and Materials (Volume 758)
• Pages: 153-158
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.758.153
• Online since: April 2015
• Authors: Priyono Sutikno*, Yuliandra Syahrial Nurdin, Doddy Risqi, Eki Mardani, Erpinus Sihombing
• Keywords: Blade Optimized, Channeling Device, Experimental of Parallel Water Current Turbine, Numerical Simulation, Water Current Turbine

References

[1] World Energy Outlook 2011, access on April 2013 (http: /www. skepticalscience. com/WEO2011. html).

[2] Drella, M.; Youngren, H. (2001), XFOIL 6. 94 User Guide.

[3] Molland, A.F.; Bahaj, A.S.; Chaplin, J.R.; Batten, W.M. J (2004), Measurements and predictions of forces, pressures and cavitation on 2-d sections suitable for marine current turbines, Proc. Institute of Mechanical Engineers 218(M), pp.127-138.

DOI: 10.1243/1475090041651412

[4] PriyonoSutikno, Sountisack Phommachanh, Obi Shinnosuke, Ducted Helical Type Hydro Turbine with Narrow Intake For Extremely Low Head Hydro Power Utilization, Teknik Mesin FTMD ITB, (2010).

[5] D. Matsushita, K. Okuma, S. Watanabe, A. Furukawa, Simplified Structure of Ducted Darrieus-Type Hydro Turbine with Narrow Intake for Extra-low Head Hydropower Utilization, Department of Mechanical Engineering Science, Kyushu University, (2008).

DOI: 10.1299/jfst.3.387

[6] PriyonoSutikno, I Nengah Diasta, Simulation and Investigation of the Air foil Motion in Extremely Low Head Ducted Darrieus Type Water Turbine, Proceeding Of The 5th Regional Conference on New and Renewable Energy, Hanoi Vietnam, ISBN: 978-604-911-121-1, September 26-27 (2011).

[7] PriyonoSutikno, Arianto Santoso, Simulation of a Darrieus Type Cross Flow Water Turbine in Shrouded Configuration and Its Self Starting Capability, ICCHT2012-The 6th International Conference on Cooling & Heating Technologies. Xian, China, November 9-12, (2012).

[8] Sounthisack P. , PriyonoSutikno , AryadiSuwono , Obi Shinnosuke , The Experiment of the Ducted Water Current Turbine and Extremely Low Head Vertical Axis Turbine, FTEC2013 - The 8th International Conference on Fluid and Thermal Energy Conversion, Semarang, November, 8-11, 2013., Semarang, INA, (2013).

[9] DoddyRizqi , PriyonoSutikno , Investigations on the performance of multi rotor DARRIEUS-type cross-flow water turbine in parallel configuration using computational fluid dynamics and experimental, The 12th Asian International Conference on Fluid Machinery, 25-27 September 2013. Paper ID: AICFM12-056, Yogyakarta, INA, (2013).

[10] Sounthisack P. , PriyonoSutikno , Aryadi Suwono , Obi Shinnosuke , The Simulation and Experiment of the Ducted Water Current Turbine and Extremely Low Head Helical Turbine, The 12th Asian International Conference on Fluid Machinery, 25-27 September 2013. Paper ID: AICFM12-0001, Yogyakarta, INA, (2013).

[11] Yuliandra Syahrial Nurdin, Priyono Sutikno, Simulation of straight Blade Darrieus Turbine with Channeling Device in Utilize with Parallel and Shifting Angle Configuration. The 12th Asian International Conference on Fluid Machinery, 25-27 September 2013. Paper ID: AICFM12-027., Yogyakarta, INA, (2013).
