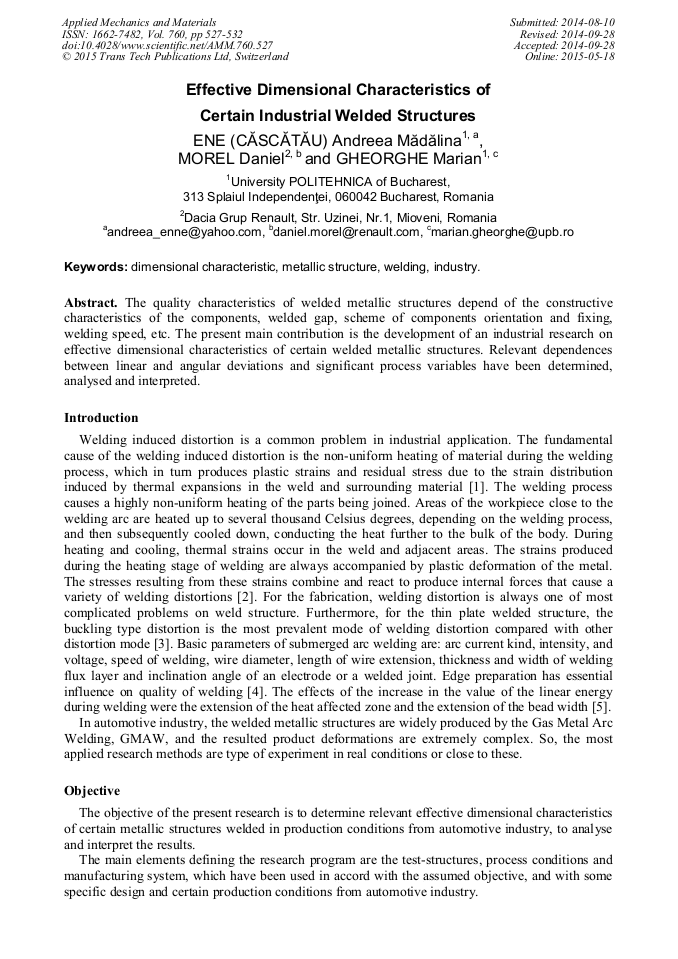

Effective Dimensional Characteristics of Certain Industrial Welded Structures

Abstract:

Various studies on the quality characteristics of products manufactured in different industrial conditions have been accomplished. The quality characteristics of welded metallic structures depend of the material and geometrical characteristics of the components, welded gap, welding speed, scheme and time of components fixing, etc. The paper presents main elements of an industrial research on the dimensional characteristics of a certain welded metallic structure. The research method used in this paper is the systematic analyse in industrial conditions, including welding robotised cell and 3D advanced measurement system.

• Periodical: Applied Mechanics and Materials (Volume 760)
• Pages: 527-532
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.760.527
• Online since: May 2015
• Authors: Andreea Mădălina Ene Căscătău*, Daniel Morel, Marian Gheorghe
• Keywords: Dimensional Characteristic, Industry, Metallic Structure, Welding

References

[1] P. Cheng et al., Correction of butt-welding induced distortions by laser forming, Transactions of NAMRI/SME, 34 (2006) 579-586.

[2] A. Pilipenko, Computer simulation of residual stress and distortion of thick plates in multi-electrode submerged arc welding, PhD Thesis, NUST N7491 Trondheim, Norway, (2001).

[3] J. Wang and H. Murakawa, Study on Transient Buckling Behavior of Thin Plate Structures during Welding Process, Transactions of JWRI, Special Issue on WSE2011, (2011) 87-90.

[4] J. Nowacki and P. Rybicki, Welding imperfections of submerged arc welded duplex steel joints in aspects of the welding heat input, Int'l Sci. CAMME, 13 (2005) 475-480.

DOI: 10.1016/j.jmatprotec.2005.02.079

[5] C. Rontescu et al., Influence of the parameters preheating temperature and linear energy on the micrographic and macrographic characteristics of welded joints, UPB Sci. Bull., Series D, Issue 2, 71 (2009) 41-52.

[6] NF EN 10025, Hot rolled products of structural steels, (2005).

[7] ISO 8015: 2011, Geometrical product specifications (GPS)-Fundamentals-Concepts, principles and rules.

DOI: 10.3403/30216346u

[8] Normalisation Renault Automobiles 01-50-026: 2008, Quality of welding arc bead ground link perimeter, (2008).

[9] NF EN ISO 14341, Wire electrode and weld deposits for gas shielded arc welding of non alloy and fine grain steels, (2011).

DOI: 10.3403/30167103u

[10] NFE 60-181, Production Facilities - Conditions of reception, (2001).

[11] A. Ene (Cascatau), P. Plassais, M. Gheorghe, Geometric Deformations of Welded Metallic Structures: submitted to Journal of Applied Mechanics and Materials, Trans Tech Publications Services Inc., and presented at IManE 2014, Kishinev, (2014).

DOI: 10.4028/www.scientific.net/amm.657.342

[12] NF EN ISO 14175, Gases and gas mixtures for fusion welding and allied processes, (2008).
