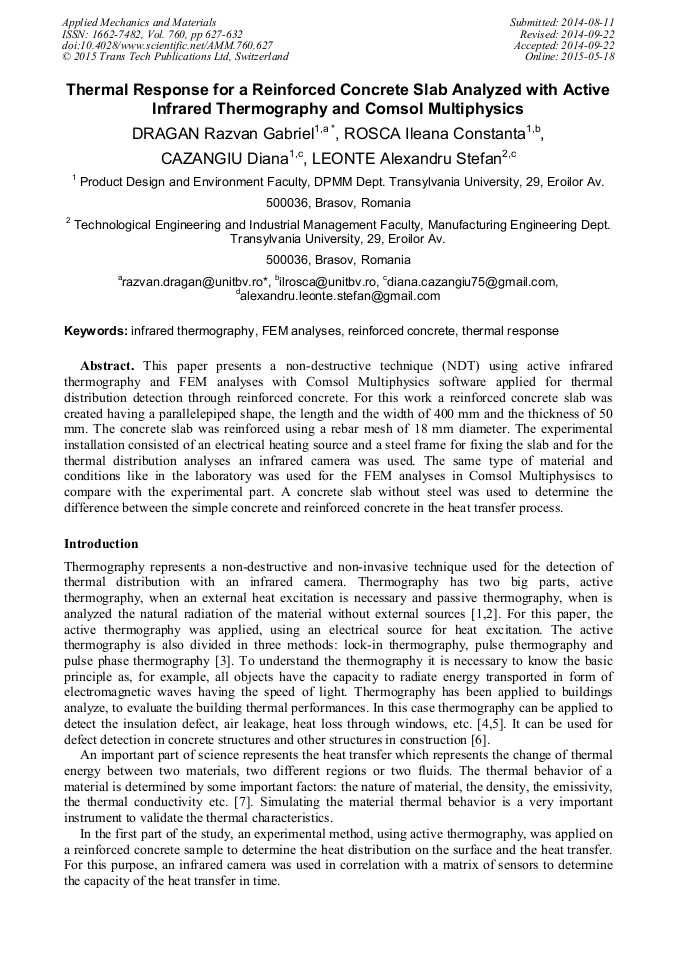

Thermal Response for a Reinforced Concrete Slab Analyzed with Active Infrared Thermography and Comsol Multiphysics

Abstract:

This paper presents a non-destructive technique (NDT) using active infrared thermography and FEM analyses with Comsol Multiphysics software applied for thermal distribution detection through reinforced concrete. For this work a reinforced concrete slab was created having a parallelepiped shape, the length and the width of 400 mm and the thickness of 50 mm. The concrete slab was reinforced using a rebar mesh of 18 mm diameter. The experimental installation consisted of an electrical heating source and a steel frame for fixing the slab and for the thermal distribution analyses an infrared camera was used. The same type of material and conditions like in the laboratory was used for the FEM analyses in Comsol Multiphysiscs to compare with the experimental part. A concrete slab without steel was used to determine the difference between the simple concrete and reinforced concrete in the heat transfer process.

• Periodical: Applied Mechanics and Materials (Volume 760)
• Pages: 627-632
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.760.627
• Online since: May 2015
• Authors: Razvan Gabriel Dragan*, Ileana Constanta Rosca, Diana Cazangiu, Alexandru Stefan Leonte
• Keywords: FEM Analyses, Infrared Thermography, Reinforced Concrete, Thermal Response

References

[1] C. Ibarra-Castanedo, F. Galmiche, A. Darabi, M. Pilla, M. Klein, A. Ziadi, S. Vallerand, J. -F. Pelletier, X. Maldague, Thermographic nondestructive evaluation: overview of recent progress, Université Laval, Quebec, (2003).

DOI: 10.1117/12.485699

[2] X. Maldague, Applications of infrared thermography in nondestructive evaluation, Laval University, Quebec, (2001).

[3] K. Chatterjee, S. Tuli, S.G. Pickering, D.P. Almond, A comparison of the pulsed, lock-in and frequency modulated thermography nondestructive evaluation techniques, NDT & E International 44 (2011) 655-667.

DOI: 10.1016/j.ndteint.2011.06.008

[4] J.M. Hart, A practical guide to infra-red thermography for building surveys, Watford, (1991).

[5] E. Barreira, V.P. de Freitas, Evaluation of building materials using infrared thermography, Construction and Building Materials, 21 (2007) 218–224.

DOI: 10.1016/j.conbuildmat.2005.06.049

[6] C. -C. Cheng, T. -M. Cheng, C. -H. Chiang, Defect detection of concrete structures using both infrared thermography and elastic waves, Automation in Construction, 18 (2008) 87–92.

DOI: 10.1016/j.autcon.2008.05.004

[7] A.A. Badea, Bazele transferului de caldură şi masă, Editura Academiei Române, Bucureşti, (2004).

[8] M. Susa, C. Ibarra-Castanedo, X. Maldague, A. Bendada, Pulse thermography applied on a complex structure sample: comparison and analysis of numerical and experimental results, IV Conferencia Panamericana de END Buenos Aires, (2007).
