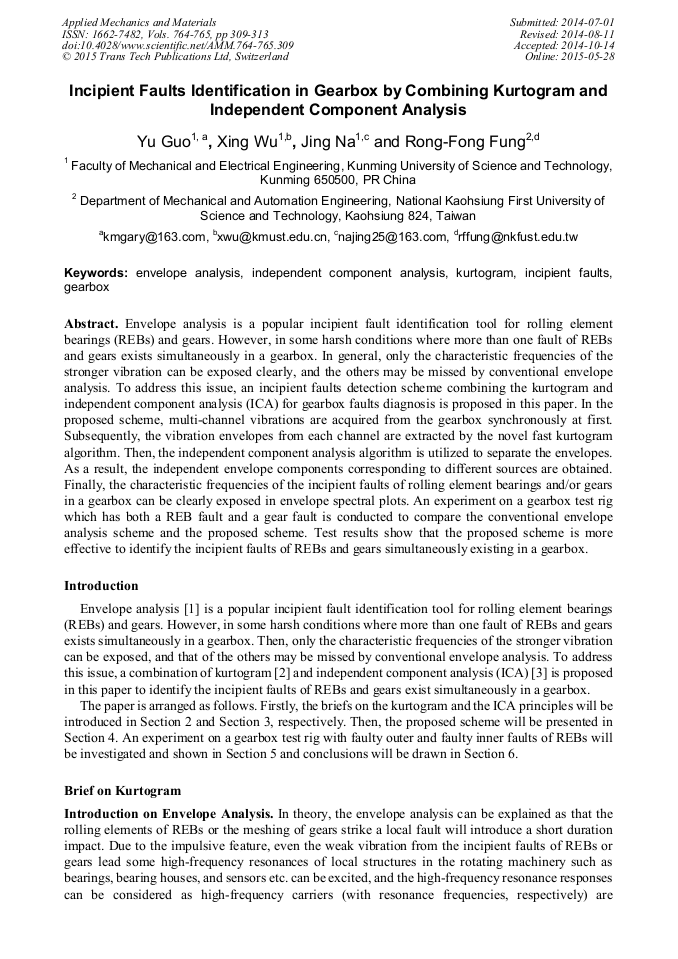

Incipient Faults Identification in Gearbox by Combining Kurtogram and Independent Component Analysis

Abstract:

Envelope analysis is a popular incipient fault identification tool for rolling element bearings (REBs) and gears. However, in some harsh conditions where more than one fault of REBs and gears exists simultaneously in a gearbox. In general, only the characteristic frequencies of the stronger vibration can be exposed clearly, and the others may be missed by conventional envelope analysis. To address this issue, an incipient faults detection scheme combining the kurtogram and independent component analysis (ICA) for gearbox faults diagnosis is proposed in this paper. In the proposed scheme, multi-channel vibrations are acquired from the gearbox synchronously at first. Subsequently, the vibration envelopes from each channel are extracted by the novel fast kurtogram algorithm. Then, the independent component analysis algorithm is utilized to separate the envelopes. As a result, the independent envelope components corresponding to different sources are obtained. Finally, the characteristic frequencies of the incipient faults of rolling element bearings and/or gears in a gearbox can be clearly exposed in envelope spectral plots. An experiment on a gearbox test rig which has both a REB fault and a gear fault is conducted to compare the conventional envelope analysis scheme and the proposed scheme. Test results show that the proposed scheme is more effective to identify the incipient faults of REBs and gears simultaneously existing in a gearbox.

• Periodical: Applied Mechanics and Materials (Volumes 764-765)
• Pages: 309-313
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.764-765.309
• Online since: May 2015
• Authors: Yu Guo*, Xing Wu, Jing Na, Rong Fong Fung
• Keywords: Envelope Analysis, Gearbox, Incipient Faults, Independent Component Analysis, Kurtogram

References

[1] P.D. McFadden and J.D. Smith: Vibration monitoring of rolling element bearings by the high-frequency resonance technique - a review, Tribology International Vol. 17 (1984), p.3.

DOI: 10.1016/0301-679x(84)90076-8

[2] J. Antoni: Fast computation of the kurtogram for the detection of transient faults, Mechanical Systems and Signal Processing Vol. 21 (2007), p.108.

DOI: 10.1016/j.ymssp.2005.12.002

[3] A. Hyvärinen, J. Karhunen and E. Oja, in: Independent Component Analysis, edited by Simon Haykin, John Wiley & Sons, Inc, NY (2001).

[4] D. Ho and R.B. Randall: Optimisation of bearing diagnostic techniques using simulated and actual bearing fault signals, Mechanical Systems and Signal Processing Vol. 14 (2000), p.763.

DOI: 10.1006/mssp.2000.1304

[5] N.G. Nikolaou and I.A. Antoniadis: Demodulation of vibration signals generated by defects in rolling element bearings using complex shifted Morlet wavelets, Mechanical Systems and Signal Processing Vol. 16 (2002), p.677.

DOI: 10.1006/mssp.2001.1459

[6] J. Antoni and R.B. Randall: Unsupervised noise cancellation for vibration signals: part II—a novel frequency-domain algorithm. Mechanical Systems and Signal Processing Vol. 18 (2004), p.103.

DOI: 10.1016/s0888-3270(03)00013-x

[7] R.B. Randall and N. Sawalhi: A new method for separating discrete components from a signal, Sound and Vibration Vol. 45 (2011), p.6.

[8] R.B. Randall and J. Antoni: Rolling element bearing diagnostics—A tutorial, Mechanical Systems and Signal Processing Vol. 25 (2011), p.485.

DOI: 10.1016/j.ymssp.2010.07.017
