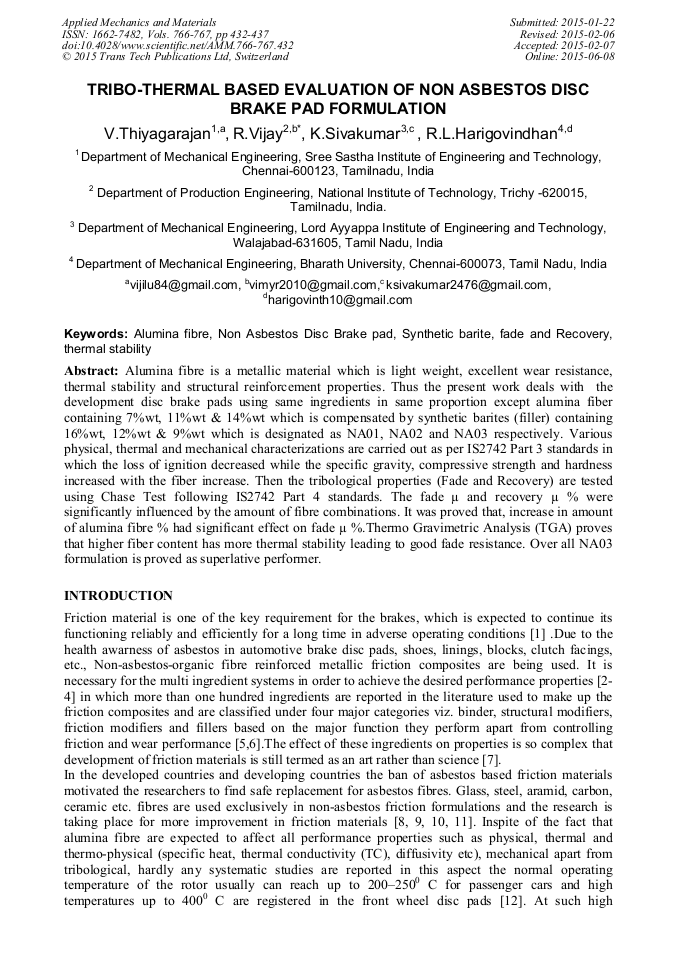

Tribo-Thermal Based Evaluation of Non Asbestos Disc Brake Pad Formulation

Abstract:

Performance of Non Asbestos brake pad requires the optimization of numerous criteria. Alumina fibre is a metallic material which is light weight, excellent wear resistance, thermal stability and structural reinforcement properties. Hence the present work deals with the development of three friction composites in the form of standard disc brake pads using same ingredients in same proportion except alumina fiber containing 7%wt, 11%wt & 14% wt which is compensated by synthetic barites (filler) containing 16%wt, 12%wt & 9% wt and designated as NA01, NA02 and NA03 respectively. Various physical, thermal and mechanical characterizations are carried out as per IS2742 Part 3 standards in which the loss of ignition decreased while the specific gravity, compressive strength and hardness increased with the fiber increase. Then the tribological properties (Fade and Recovery) are tested using Chase Test following IS2742 Part 4 standards. The fade μ and recovery μ % were significantly influenced by the amount of fibre combinations. It was proved that, increase in amount of alumina fibre % had significant effect on fade μ %.Thermo Gravimetric Analysis (TGA) proves that higher fiber content has more thermal stability leading to good fade resistance. Over all NA03 formulation is proved as superlative performer.

• Periodical: Applied Mechanics and Materials (Volumes 766-767)
• Pages: 432-437
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.766-767.432
• Online since: June 2015
• Authors: V. Thiyagarajan, R. Vijay*, K. Sivakumar, R.l. Harigovindhan
• Keywords: Alumina Fibre, Fade, Non Asbestos Disc Brake Pad, Recovery, Synthetic Barite, Thermal Stability

References

[1] Mukesh Kumar, J. Bijwe, NAO friction materials with various metal powders: Tribological evaluation on full-scale inertia dynamometer, Wear, Vol. 269, p.826–837, (2010).

DOI: 10.1016/j.wear.2010.08.011

[2] Nicholson G. Facts about friction. Winchester, Virginia: Gedoran Pub.; (1995).

[3] Bijwe.J., Composites as friction materials: recent developments in non- asbestos fiber reinforced friction materials a review, Polymer Composites, Vol. 18 (3), p.378–96, (1997).

DOI: 10.1002/pc.10289

[4] BlauPJ. Compositions, functions, and testing of friction brake materials and their additives. ORTN/TM-2001/64; September (2000).

[5] Vijay Subramanian, Friction Material for Brakes, US Patent Publication No. US 2011/0297496 A1, Publication Date: Dec 8, (2011).

[6] V. Thiyagarajan, K. Kalaichelvan, K. Srinivasan, S. Venugopal, R. Vijay, Influence of Specific Heat Capacity on Hybrid Non Asbestos Brake Pad Formulation, Journal of Balkan Tribological Association, Vol 21, No. 1, (2015) (Article In press).

[7] B.K. Satapathy and J. Bijwe, Performance of friction materials based on variation in nature of organic fibres—part I: fade and recovery behaviour, Wear, vol. 257, no. 5-6, p.573–584, (2004).

DOI: 10.1016/j.wear.2004.03.003

[8] Yuji Handa, Takahisa Kato , Effects of Cu Powder, BaSO4 and Cashew Dust on the Wear and Friction Characteristics of Automotive Brake Pads, Tribology Transactions, Volume 39: pp.346-353, (2008).

DOI: 10.1080/10402009608983537

[9] R. P. Talegaonkar and K. Gopinath, Influence of alumina fiber content on properties of non-asbestos organic brake friction material, Journal of Reinforced Plastics and Composites, vol. 28, no. 17, p.2069–2081, (2009).

DOI: 10.1177/0731684408091684

[10] Arnab Ganguly and Raji George, Asbestos Free Friction Composition for Brake Linings, Bulletins of Material Science, Vol. 31 No. 1, pp.19-22, (February 2008).

DOI: 10.1007/s12034-008-0004-6

[11] Lu Y, Tang CF, Zhao Y, Wright MA, Optimization of a semi metallic friction material formulation, Journal of Reinforced Plastics Composites, Vol 23, p.1537–45, (2004).

DOI: 10.1177/0731684404039791

[12] R. Vijay, M. Jees Janesh, M.A. Saibalaji, and V. Thiyagarajan, Optimization of Tribological Properties of Non asbestos Brake Pad Material by Using Steel Wool, Advances in Tribology, vol. 2013, Article ID 165859, 9 pages, (2013).

DOI: 10.1155/2013/165859

[13] W. Osterley, M. Griepentrog, Th. Gross, I. Urban, Chemical and micro structural changes induced by friction and wear of brakes, Wear, Vol. 251; p.1469–1476, (2001).

DOI: 10.1016/s0043-1648(01)00785-2

[14] Chan . D, Stachowiak .G. W, Review of automotive brake friction materials, Proceedings of the Institution of Mechanical Engineers Part D Journal of Automobile Engineering Vol. 218, p.953–66, (2004).

DOI: 10.1243/0954407041856773
