Numerical Modeling of Laminated Glass Units

Alena Zemanova; Jan Zeman; Michal Sejnoha

doi:10.4028/www.scientific.net/AMM.769.316

Paper Titles

Composite Slabs with Prepressed Embossments – Longitudinal Shear Resistance
p.289

Influence of Type of Contact of RC Beam and Strengthening Slab on Limit States of Strengthened Element
p.294

Using Thermo-Steel Panels as Wall Bearing Structure
p.302

Effect of Fibre Type in Concrete on Crack Initiation
p.308

Composite Laminates under Hygrothermal Environment
p.312

Numerical Modeling of Laminated Glass Units
p.316

Software Modelling of Composite Steel and Concrete Structures
p.320

Optimal Design of Structures Made of Fiber Reinforced Concrete
p.326

Experiment and Elastic-Plastic Modelling of the IPN160 Beam
p.331

HomeApplied Mechanics and MaterialsApplied Mechanics and Materials Vol. 769Numerical Modeling of Laminated Glass Units

Numerical Modeling of Laminated Glass Units

Abstract:

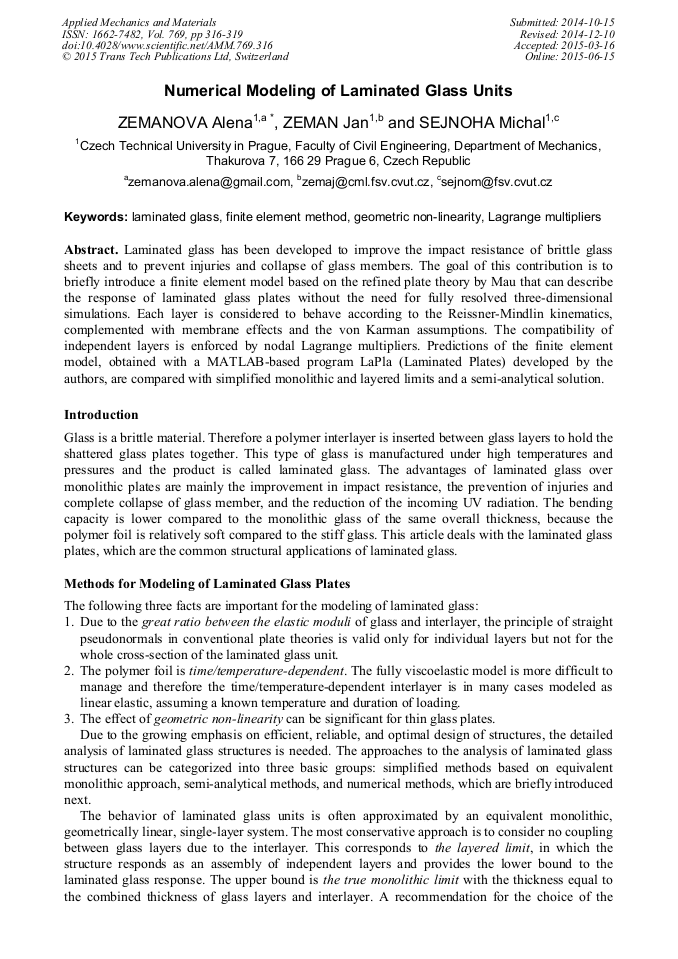

Laminated glass has been developed to improve the impact resistance of brittle glass sheets and to prevent injuries and collapse of glass members. The goal of this contribution is to briefly introduce a finite element model based on the refined plate theory by Mau that can describe the response of laminated glass plates without the need for fully resolved three-dimensional simulations. Each layer is considered to behave according to the Reissner-Mindlin kinematics, complemented with membrane effects and the von Karman assumptions. The compatibility of independent layers is enforced by nodal Lagrange multipliers. Predictions of the finite element model, obtained with a MATLAB-based program LaPla (Laminated Plates) developed by the authors, are compared with simplified monolithic and layered limits and a semi-analytical solution.
