Effects of Surface Tension on the Liquid Holdup and Wave Characteristics in Horizontal Annular Two-Phase Flow

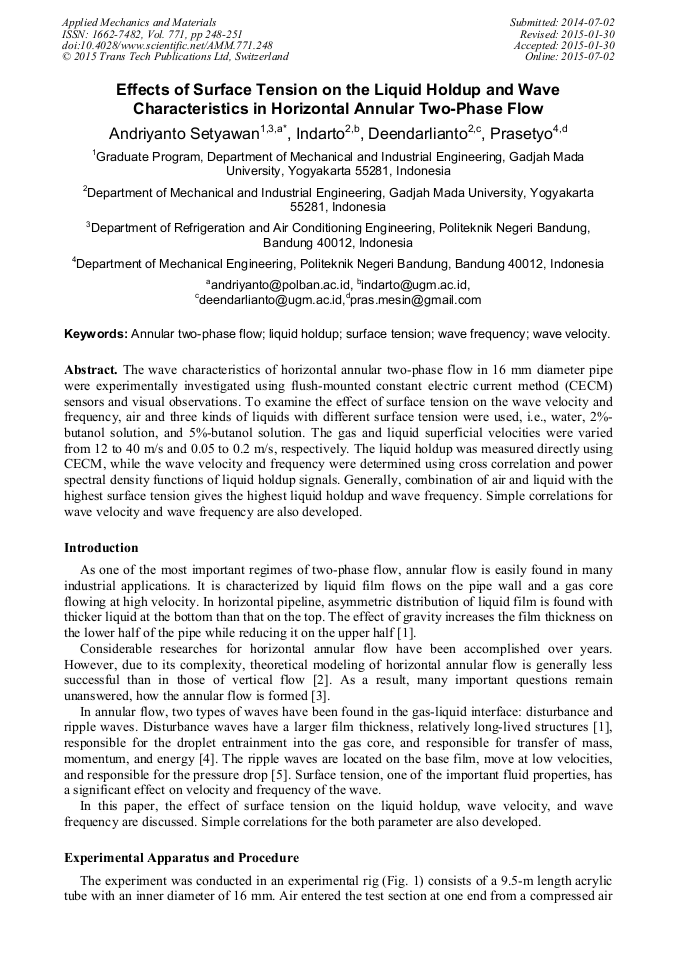

Article Preview

Abstract:

The wave characteristics of horizontal annular two-phase flow in 16 mm diameter pipe were experimentally investigated using flush-mounted constant electric current method (CECM) sensors and visual observations. To examine the effect of surface tension on the wave velocity and frequency, air and three kinds of liquids with different surface tension were used, i.e., water, 2%-butanol solution, and 5%-butanol solution. The gas and liquid superficial velocities were varied from 12 to 40 m/s and 0.05 to 0.2 m/s, respectively. The liquid holdup was measured directly using CECM, while the wave velocity and frequency were determined using cross correlation and power spectral density functions of liquid holdup signals. Generally, combination of air and liquid with the highest surface tension gives the highest liquid holdup and wave frequency. Simple correlations for wave velocity and wave frequency were also developed.

You might also be interested in these eBooks
Instrumentation and Measurement Systems View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 771)

Pages:

248-251

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.771.248

Citation:

Cite this paper

Online since:

July 2015

Authors:

Andriyanto Setyawan*, Indarto Indarto, Deendarlianto Deendarlianto, Prasetyo Prasetyo

Keywords:

Annular Two-Phase Flow, Liquid Holdup, Surface Tension, Wave Frequency, Wave Velocity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] T. A. Shedd, Characteristics of the liquid film in horizontal two-phase flow, Ph. D. Thesis, the University of Illinois at Urbana-Champaign, (2001).

Google Scholar

[2] L. Weidong, Z. Fangde, L. Rongxian, Z. Lixing, Experimental study on the characteristics of liquid layer and disturbance waves in horizontal annular flow, J. Therm. Sci. 8 (1999) 235-241.

Google Scholar

[3] J.M. Rodriguez. Numerical simulation of two-phase annular flow, Ph. D. Thesis, Faculty of Rensselaer Polytechnic Institute, (2009).

Google Scholar

[4] P. Sawant, M. Ishii, T. Hazuku, T. Takamasa, M. Mori, Properties of disturbance waves in vertical annular two-phase flow, Nucl. Eng. and Des. 238 (2008) 3528–3541.

DOI: 10.1016/j.nucengdes.2008.06.013

Google Scholar

[5] D. Schubring, T.A. Shedd, Wave behavior in horizontal annular air–water flow, Int. J. Multiphase Flow 34 (2008) 636–646.

DOI: 10.1016/j.ijmultiphaseflow.2008.01.004

Google Scholar

[6] S. Jayanti, G.F. Hewitt, S.P. White, Time-dependent behavior of the liquid film in horizontal annular flow, Int. J. Multiphase Flow 16 (1990) 1097-1116.

DOI: 10.1016/0301-9322(90)90108-u

Google Scholar

[7] A. Setyawan, Indarto, Deendarlianto, Experimental investigation on disturbance wave velocity and frequency in air-water horizontal annular flow, Modern Applied Science 8 (2014) 84-96.

DOI: 10.5539/mas.v8n4p84

Google Scholar

[8] J.M. Mandhane, G.A. Gregory, K. Aziz, A flow pattern map for gas-liquid flow in horizontal pipes, Int. J. Multiphase Flow 1 (1974) 537-553.

DOI: 10.1016/0301-9322(74)90006-8

Google Scholar

[9] T. Fukano, Measurement of time varying thickness of liquid film flowing with high speed gas flow by CECM, Nucl. Eng. Des. 184 (1998) 363–377.

DOI: 10.1016/s0029-5493(98)00209-x

Google Scholar

[10] Deendarlianto, A. Ousaka, A. Kariyasaki, T. Fukano, Investigation of liquid film behavior at the onset of flooding during adiabatic counter-current air–water two-phase flow in an inclined pipe, Nucl. Eng. Des., 235 (2005) 2281–2294.

DOI: 10.1016/j.nucengdes.2005.03.006

Google Scholar

[11] Deendarlianto, A. Ousaka, Indarto, A. Kariyasaki, D. Lucas, K. Vierow, C. Vallee, K. Hogan, The effects of surface tension on flooding in counter-current two-phase flow in an inclined tube, Exp. Therm. Fluid Sci. 34 (2010) 813–826.

DOI: 10.1016/j.expthermflusci.2010.01.010

Google Scholar

[12] A. Ousaka, Deendarlianto, A. Kariyasaki, T. Fukano, Prediction of flooding gas velocity in gas–liquid counter-current two-phase flow in inclined pipes, Nucl. Eng. Des. 236 (2006) 1282–1292.

DOI: 10.1016/j.nucengdes.2005.12.001

Google Scholar

[13] I. Mantilla, Mechanistic modeling of liquid entrainment in gas in horizontal pipes, Ph. D. Diss., the University of Tulsa, (2008).

Google Scholar

[14] A. Al-Sarkhi, C. Sarica, K. Magrini, Inclination effects on wave characteristics in annular gas–liquid flows, AIChE J. 58 (2012) 1018-1029.

DOI: 10.1002/aic.12653

Google Scholar

[15] S.V. Paras, A.J. Karabelas, Properties of the liquid layer in horizontal annular flow, Int. J. Multiphase Flow 17 (1991) 439-454.

DOI: 10.1016/0301-9322(91)90041-z

Google Scholar

[16] T. Fukano, A. Ousaka, T. Morimoto, K. Sekoguchi, Air-water annular two-phase flow in a horizontal tube (2nd report, Circumferential variations of film thickness parameters), Bull. JSME 26 (1983) 1387-1395.

DOI: 10.1299/jsme1958.26.1387

Google Scholar
