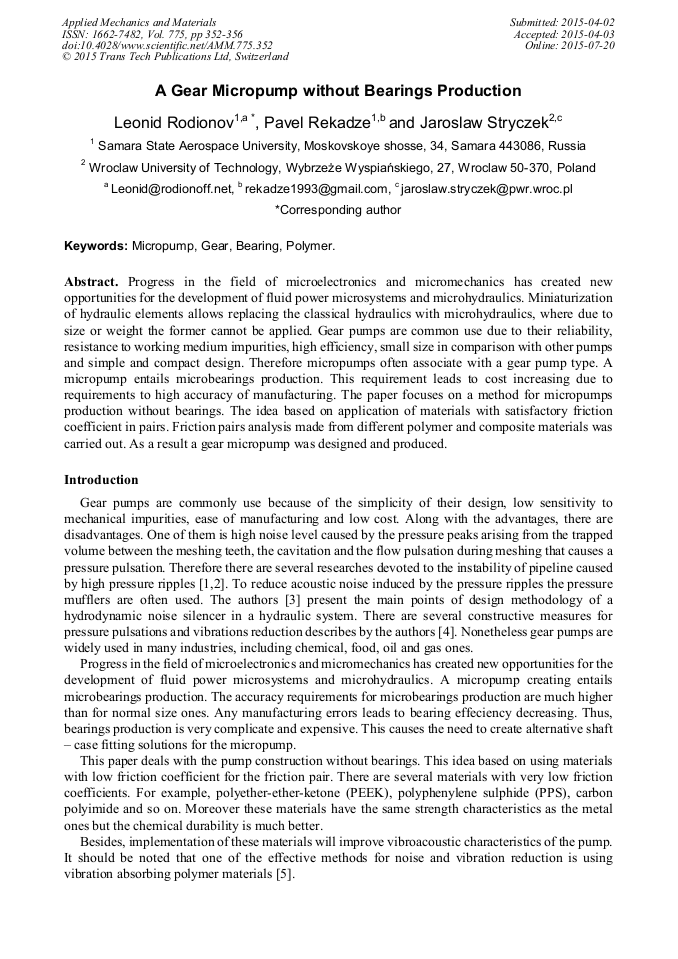

A Gear Micropump without Bearings Production

Abstract:

Progress in the field of microelectronics and micromechanics has created new opportunities for the development of fluid power microsystems and microhydraulics. Miniaturization of hydraulic elements allows replacing the classical hydraulics with microhydraulics, where due to size or weight the former cannot be applied. Gear pumps are common use due to their reliability, resistance to working medium impurities, high efficiency, small size in comparison with other pumps and simple and compact design. Therefore micropumps often associate with a gear pump type. A micropump entails microbearings production. This requirement leads to cost increasing due to requirements to high accuracy of manufacturing. The paper focuses on a method for micropumps production without bearings. The idea based on application of materials with satisfactory friction coefficient in pairs. Friction pairs analysis made from different polymer and composite materials was carried out. As a result a gear micropump was designed and produced.

• Periodical: Applied Mechanics and Materials (Volume 775)
• Pages: 352-356
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.775.352
• Online since: July 2015
• Authors: Leonid Rodionov, Pavel Rekadze, Jarosław Stryczek
• Keywords: Bearing, Gear, Micropump, Polymer

References

[1] E.V. Shakhmatov, A.B. Prokofiev, A.N. Kruchkov, G.M. Makaryants, The Instability of the Pipeline due to Transporting Fluid's Pressure Ripples, Proceedings of the 28th Congress of the International Council of the Aeronautical Sciences, Brisbane, Australia, 23–28 September, (2012).

[2] A.B. Prokofiev, G.M. Makariyants, E.V. Shakhmatov, Modeling of Pipeline Vibration under the Pressure Ripples in the Working Fluid, Proceedings of the 17th International Congress on Sound & Vibration, Cairo, Egypt, 18–22 July, (2010).

[3] G.M. Makaryants, S.A. Gafurov, I.A. Zubrilin, A.N. Kruchkov, A.B. Prokofiev, E.V. Shakhmatov, Design Methodology of Hydrodynamic Noise Silencer, Proceedings of the 20th International Congress on Sound & Vibration, Bangkok, Thailand, 7–11 July, (2013).

[4] S.A. Gafurov, A.B. Prokofiev, E.V. Shakhmatov, Reduction of Vibroacoustic Loads in Aviation Combined Pumps, Proceedings of the 29th Congress of the International Council of the Aeronautical Sciences, St. Petersburg, Russia, 7–12 September, (2014).

[5] V.A. Sagomonova, Y.V. Syty, Basic concepts of creation damping materials for aviation (2001), [Online] available: http: /viam-works. ru/en/articles?year=2013&num=11.

[6] B. Chen, J. Wang, F. Yan, Comparative investigation on the tribological behaviors of CF/PEEK composites under sea water lubrication, submitted to Tribology International, vol. 52, p.170–177, (2012).

DOI: 10.1016/j.triboint.2012.03.017

[7] J. Paulo Davim, R. Cardoso, Effect of the reinforcement (carbon or glass fibres) on friction and wear, submitted to Wear, vol. 266, Is. 7–8, p.795–799, (2009).

DOI: 10.1016/j.wear.2008.11.003

[8] Y. Liu, J.A. Schaefer, The sliding friction of thermoplastic polymer composites tested at low speeds, submitted to Wear, vol. 261, Is. 5–6, p.568–577, (2006).

DOI: 10.1016/j.wear.2006.01.002

[9] R. Schroeder, F.W. Torres, C. Binde, A.N. Klein, J.D.B. de Mello, Failure mode in sliding wear of PEEK based composites, submitted to Wear of Materials, vol. 301, Is. 1–2, p.717–726, (2013).

DOI: 10.1016/j.wear.2012.11.055

[10] Information on http: /www. slaviza. ru.

[11] A.A. Igolkin, A.I. Safin, G.M. Makaryants, A.N. Kruchkov, E.V. Shakhmatov, Non-contact Registration and Analysis of the Product Machine Vibration with a Three-Component Laser Scanner, submitted to Applied Physics, Is. 4, рр. 49-53, (2013).
