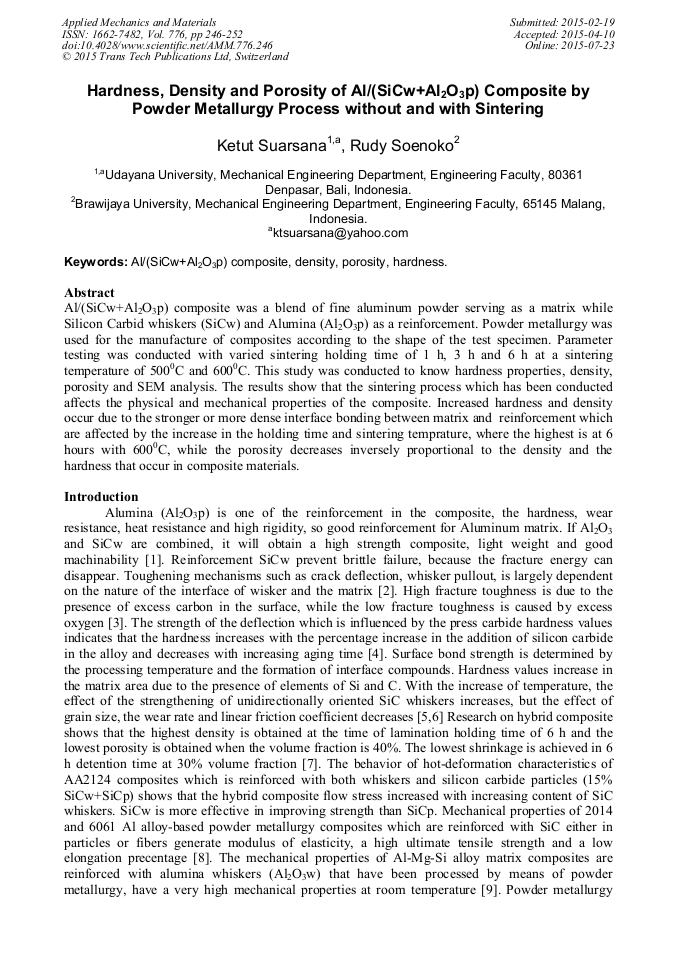

Hardness, Density and Porosity of Al/(SiCw+Al₂O₃p) Composite by Powder Metallurgy Process without and with Sintering

Abstract:

Al/(SiCw+Al₂O₃p) composite was a blend of fine aluminum powder serving as a matrix while Silicon Carbid whiskers (SiCw) and Alumina (Al₂O₃p) as a reinforcement. Powder metallurgy was used for the manufacture of composites according to the shape of the test specimen. Parameter testing was conducted with varied sintering holding time of 1 h, 3 h and 6 h at a sintering temperature of 500°C and 600°C. This study was conducted to know hardness properties, density, porosity and SEM analysis. The results show that the sintering process which has been conducted affects the physical and mechanical properties of the composite. Increased hardness and density occur due to the stronger or more dense interface bonding between matrix and reinforcement which are affected by the increase in the holding time and sintering temprature, where the highest is at 6 hours with 600°C, while the porosity decreases inversely proportional to the density and the hardness that occur in composite materials.

• Periodical: Applied Mechanics and Materials (Volume 776)
• Pages: 246-252
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.776.246
• Online since: July 2015
• Authors: Ketut Suarsana*, Rudy Soenoko
• Keywords: Al/(SiCw+Al₂O₃p) Composite, Density, Hardness, Porosity

References

[1] L. Froyen, B. Verlinden, Aluminum Matrix Composites Materials. Talat 1402. Belgium. European Aluminum Associations (EAA), (1994).

[2] Garnier, V., Fantozzi, G., Nguyen, D., Dubois, J., & Thollet, G. Influence of SiC whisker morphology and nature of SiC / Al2O3 interface on thermo mechanical properties of SiC reinforced Al2O3 composites. Journal of the European Ceramic Society, 25, 3485-3493. doi : 10. 1016/ j. jeurceramsoc. (2004).

DOI: 10.1016/j.jeurceramsoc.2004.09.026

[3] Homeny, J., Vaughn, W. L., & Ferber, M. K. Silicon Carbide Whisker/Alumina Matrix Composites: Effect of Whisker Surface Treatment on Fracture Toughness. Journal of the American Ceramic Society, 73(2), 394-402. doi: 10. 1111/j. 1151-2916. (1990).

DOI: 10.1111/j.1151-2916.1990.tb06524.x

[4] Kalkanli, a, & Yilmaz, S. Synthesis and characterization of aluminum alloy 7075 reinforced with silicon carbide particulates. Materials & Design, 29(4), 775-780. doi: 10. 1016/j. matdes. (2007). 01. 007.

DOI: 10.1016/j.matdes.2007.01.007

[5] Lim, D., Park, D., Han, B., Kan, T., & Jang, H. Temperature effects on the tribological behavior of alumina reinforced with unidirectionally oriented SiC whiskers. Science, (2001). 251, 1452-1458.

DOI: 10.1016/s0043-1648(01)00784-0

[6] Sozhamannan, G. G., & Prabu, S. B. Influence of interface compounds on interface bonding characteristics of aluminium and silicon carbide. Materials Characterization, 60(9), 986-990. Elsevier Inc. doi: 10. 1016/j. matchar. (2009). 04. 005.

DOI: 10.1016/j.matchar.2009.04.005

[7] Widyastuti, Dedi Priadi., Struktur mikro daerah laminasi Komposit Lamina Isotropik Al/SiC-Al/Al2O3, Dengan Variasi Waktu Tahan Sinter. Prosiding Seminar Nasional Sains dan Teknologi-II. ( 2008). Universitas Lampung in Indonesia.

[8] Srinivasa, C. (1996). 2014 and 6061 Aluminium powder metallurgy composites containing silicon carbide particles / fibres. Materials & Design, 3069(96), 359-366.

DOI: 10.1016/0261-3069(96)00015-5

[9] J. Corrochano, C. Cerecedo, V. Valcárcel, M. Lieblich, and F. Guitián, Whiskers of Al2O3 as reinforcement of a powder metallurgical 6061 aluminium matrix composite, Image (Rochester, N.Y. ), vol. 62, 2008, pp.103-105.

DOI: 10.1016/j.matlet.2007.04.080

[10] ASTM., , Annual book of ASTM Standards, (2003). Section 3, Volume 03. 01, pp.234-235, Baltimore, MD,. U.S. A.

[11] Zainuri, M., Siradj, E. S., Priadi, D., Zulfia, A, . (2008). Pengaruh Pelapisan Permukaan Partikel SiC dengan Oksida Metal terhadap Modulus Elastisitas Komposit Al /SiC. Metalurgi, Matrix, 12(2),. 126.
