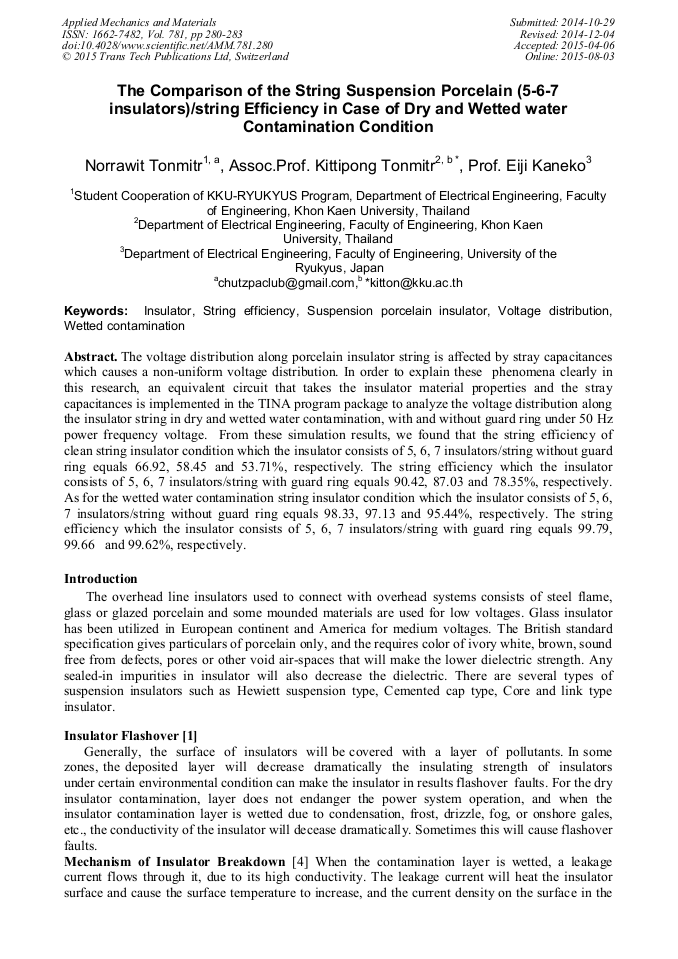

The Comparison of the String Suspension Porcelain (5-6-7 Insulators)/String Efficiency in Case of Dry and Wetted Water Contamination Condition

Abstract:

The voltage distribution along porcelain insulator string is affected by stray capacitances which causes a non-uniform voltage distribution. In order to explain these phenomena clearly in this research, an equivalent circuit that takes the insulator material properties and the stray capacitances is implemented in the TINA program package to analyze the voltage distribution along the insulator string in dry and wetted water contamination, with and without guard ring under 50 Hz power frequency voltage. From these simulation results, we found that the string efficiency of clean string insulator condition which the insulator consists of 5, 6, 7 insulators/string without guard ring equals 66.92, 58.45 and 53.71%, respectively. The string efficiency which the insulator consists of 5, 6, 7 insulators/string with guard ring equals 90.42, 87.03 and 78.35%, respectively. As for the wetted water contamination string insulator condition which the insulator consists of 5, 6, 7 insulators/string without guard ring equals 98.33, 97.13 and 95.44%, respectively. The string efficiency which the insulator consists of 5, 6, 7 insulators/string with guard ring equals 99.79, 99.66 and 99.62%, respectively.

• Periodical: Applied Mechanics and Materials (Volume 781)
• Pages: 280-283
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.781.280
• Online since: August 2015
• Authors: Norrawit Tonmitr, Kittipong Tonmitr*, Eiji Kaneko
• Keywords: Insulator, String Efficiency, Suspension Porcelain Insulator, Voltage Distribution, Wetted Contamination

References

[1] Dhalaan, S.M.A.; Elhirbawy, M.A., 2003. Investigation on the characteristics of a string of insulator due to the effect of dirt, Transmission and Distribution Conference and Exposition, IEEE PES; September., 3, 915 – 920. doi: 10. 1109/TDC. 2003. 1335059.

DOI: 10.1109/tdc.2003.1335059

[2] Dhalaan, S.M.A. Elhirbawy., M.A. 2003. Simulation of voltage distribution calculation methods over a string of suspension insulators, Transmission and Distribution Conference and Exposition, IEEE, PES; 3, 909 – 914. doi: 10. 1109/TDC. 2003. 1335058.

DOI: 10.1109/tdc.2003.1335058

[3] Chisholm , W. A., P. G. Buchan , and T. Jarv . 1994 . Accurate Measurement of Low Insulator Contamination Levels , , IEEE Transactions on Power Delivery , Vol. 9 , No. 3 (July), p.1552 – 1557.

DOI: 10.1109/61.311211

[4] IEC Standard 60060-1, 1989, High voltage test technique, Part 1: General Definitions and test requirements.
