UHF TV Band Transparent Antenna for Indoor Television Reception

Abstract:

The characteristics of transparent antenna for indoor television reception are investigated. It operates at Ultra High Frequency (UHF) band. The proposed antenna was made from silver coated polyester film (AgHT-4), the transparent conductive material and it is attached on a layer of glass substrate at both sides. The overall antenna length and width is at 150 mm x 50 mm. It has not fully ground plane and fed by a 50 Ω feedline. The meander line is designed at the feedline to broader the bandwidth. The simulated bandwidth obtained is 505.37 MHz to 802.45 MHz at level -6 dB. The rough impedance bandwidth is 297.08 MHz or 45.43 %. All the radiation patterns over the UHF band show bi-directional for E-plane and omni-directional at H-plane. The maximum gain obtained is 1.88 dBi.

You might also be interested in these eBooks

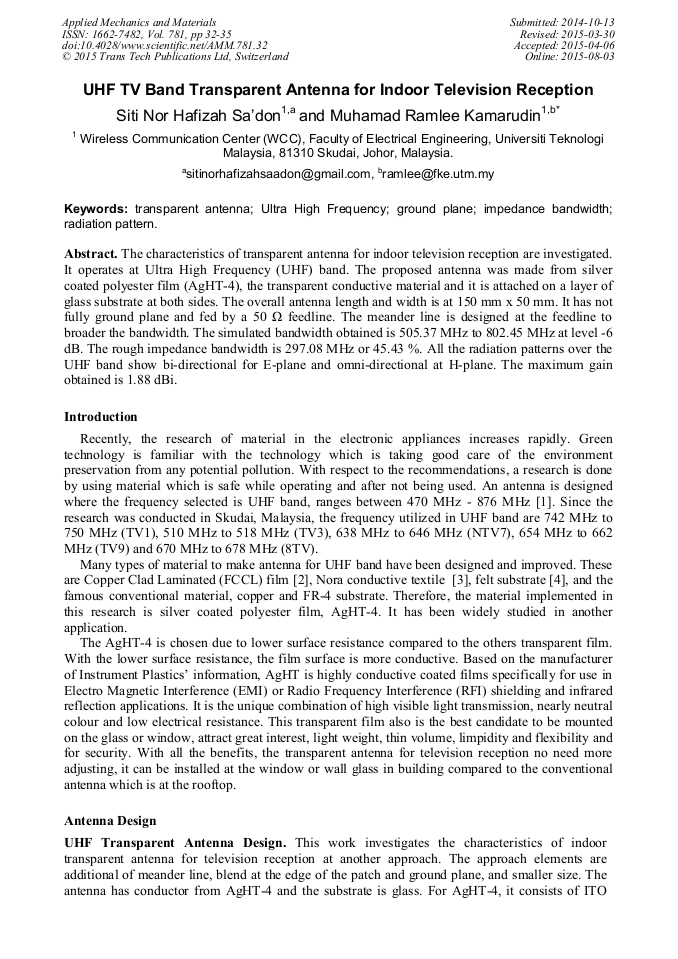

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 781)

Pages:

32-35

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.781.32

Citation:

Cite this paper

Online since:

August 2015

Authors:

Siti Nor Hafizah Sa’don, Muhammad Ramlee Kamarudin*

Keywords:

Ground Plane, Impedance Bandwidth, Radiation Pattern, Transparent Antenna, Ultra-High Frequency (UHF)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Unlicensed Operation in the TV Broadcast Bands, Third Memorandum Opinion and Order, (2012) 04-186.

Google Scholar

[2] C. Hsien-Yi, L. Chi-Hui, C. Yen-Yu, C. Po-Wen, S. Kuo-Ying, L. Yung-Ta, Y. Chang-Fa, and M. Tzyh-Ghuang, A miniaturized built-in antenna for USB digital television (DTV) tuners, IEEE International Symposium on Antennas and Propagation (APSURSI), (2010).

DOI: 10.1109/aps.2010.5561254

Google Scholar

[3] D. L. Paul, M. G. Paterson, and G. S. Hilton, A low-profile textile antenna for reception of digital television and wireless communications, Radio and Wireless Symposium (RWS), (2012) 51-54.

DOI: 10.1109/rws.2012.6175344

Google Scholar

[4] D. L. Paul, C. Jayatissa, G. S. Hilton, and C. J. Railton, Conformability of a textile antenna for reception of digital television, Antennas and Propagation Conference (LAPC) Loughborough, (2010) 225-228.

DOI: 10.1109/lapc.2010.5666168

Google Scholar
