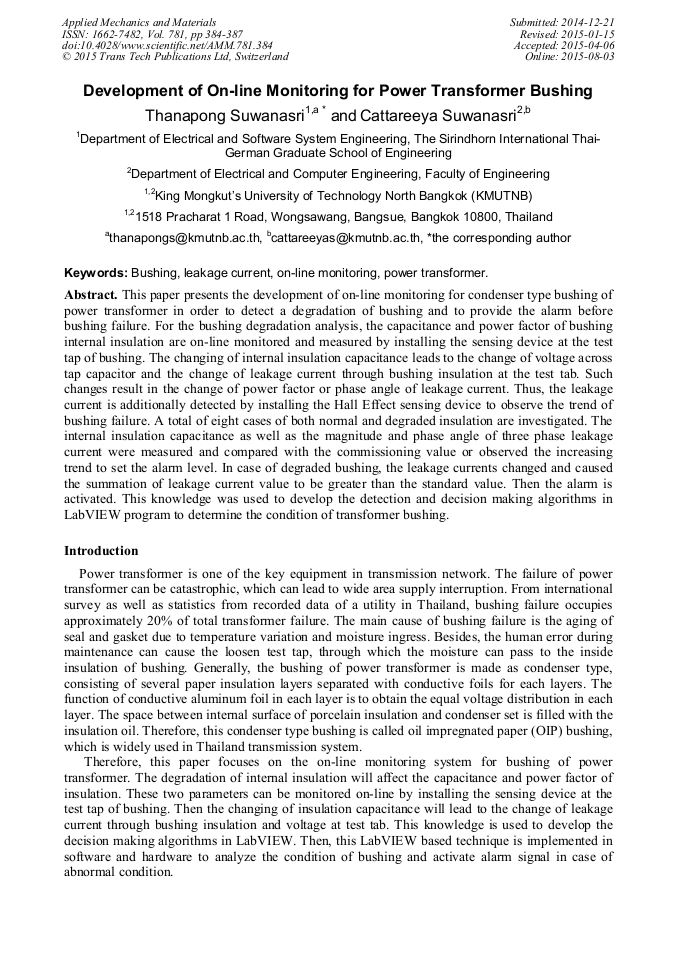

Development of On-Line Monitoring for Power Transformer Bushing

Abstract:

This paper presents the development of on-line monitoring for condenser type bushing of power transformer in order to detect a degradation of bushing and to provide the alarm before bushing failure. For the bushing degradation analysis, the capacitance and power factor of bushing internal insulation are on-line monitored and measured by installing the sensing device at the test tap of bushing. The changing of internal insulation capacitance leads to the change of voltage across tap capacitor and the change of leakage current through bushing insulation at the test tab. Such changes result in the change of power factor or phase angle of leakage current. Thus, the leakage current is additionally detected by installing the Hall Effect sensing device to observe the trend of bushing failure. A total of eight cases of both normal and degraded insulation are investigated. The internal insulation capacitance as well as the magnitude and phase angle of three phase leakage current were measured and compared with the commissioning value or observed the increasing trend to set the alarm level. In case of degraded bushing, the leakage currents changed and caused the summation of leakage current value to be greater than the standard value. Then the alarm is activated. This knowledge was used to develop the detection and decision making algorithms in LabVIEW program to determine the condition of transformer bushing.

• Periodical: Applied Mechanics and Materials (Volume 781)
• Pages: 384-387
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.781.384
• Online since: August 2015
• Authors: Thanapong Suwanasri*, Cattareeya Suwanasri
• Keywords: Bushing, Leakage Current, On-Line Monitoring, Power Transformer

References

[1] A. Setayeshmehr, A. Akbari, H. Borsi, E. Gockenbach, On-line monitoring and diagnoses of power transformer bushings, IEEE Trans. Dielectr. Electr. Insul., vol. 13, no. 3, June 2006, pp.608-615.

DOI: 10.1109/tdei.2006.1657975

[2] IEEE Standard General Requirements and Test Procedure for Power Apparatus Bushings, IEEE Standard C57. 19. 00, (2004).

DOI: 10.1109/ieeestd.2005.96100

[3] IEEE Standard Performance Characteristics and Dimensions for Outdoor Apparatus Bushings, IEEE Standard C57. 19. 01, (2000).

DOI: 10.1109/ieeestd.1992.114386

[4] M.F. Lachman, W. Walter, P.A. von Guggenberg, On-line diagnostics of high-voltage bushings and current transformers using the sum current method, IEEE Trans. on Power Del., vol. 15, no. 1, Jan. 2000, pp.155-162.

DOI: 10.1109/61.847244
