Design of A2DOF Controller with Smith Predictor for LLC Current-Resonant DC-DC Converters

Abstract:

LLC current-resonant converters have greater non-linear characteristics as compared to conventional DC-DC converters. Thus controlling LLC converters is difficult. In particular, the influence of an input delay time isn’t negligible at heavy load. In this paper, an A2DOF (Approximate 2-Degree-Of Freedom) controller with Simith predictor is proposed to compensate the input delay time of LLC current-resonant DC-DC converter. Experimental studies using a microprocessor for the controller demonstrate that this type of digital controller is effective to suppress the influences of the input delay time and the output variations at the sudden load change.

You might also be interested in these eBooks

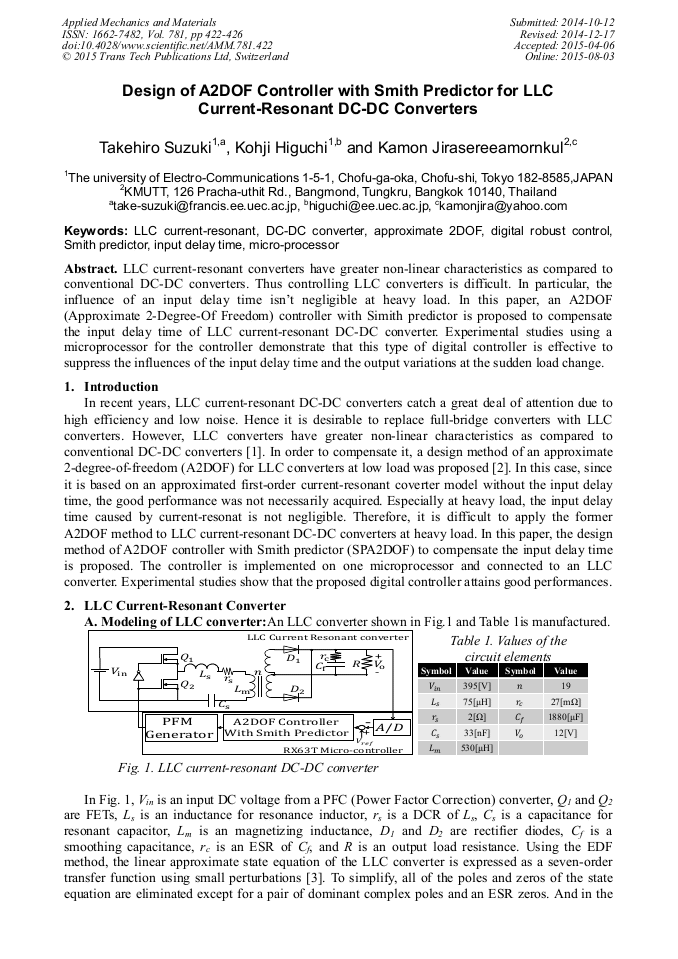

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 781)

Pages:

422-426

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.781.422

Citation:

Cite this paper

Online since:

August 2015

Authors:

Tekehiro Suzuki*, Kohji Higuchi, Kamon Jirasereeamornkul

Keywords:

Approximate 2DOF, Dc-Dc Converter, Digital Robust Control, Input Delay Time, LLC Current-Resonant, Micro-Processor, Smith Predictor

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Meeravali Shaik and Ramesh Kankanala, Microchip Technology Inc. Digital Compensator Design for LLC Resonant Converter, Application Notes, DS01477A, pp.1-25, (2012).

Google Scholar

[2] B. Yang, Topology Investigation for Front End DC/DC Power Conversion for Distributed Power System, Dissertation, Virginia Polytechninc Institue and State University, (2003).

Google Scholar

[3] T. Nishimura, Y. Adachi and Y. Ohta, Robust digital control for an LLC current-resonant DC-DC converter", ECTI-CON, 2012 9th International Conference, pp.71-77, (2012).

DOI: 10.1109/ecticon.2012.6254168

Google Scholar

[4] K. Higuchi, K. Nakano, T. Kajikawa, E. Takegami, S. Tomioka, K. Watanabe, A New Design of Robust Digital Controller for DC-DC Converters, IFAC 16th Triennial World Congress, (2005).

DOI: 10.3182/20050703-6-cz-1902.01796

Google Scholar
