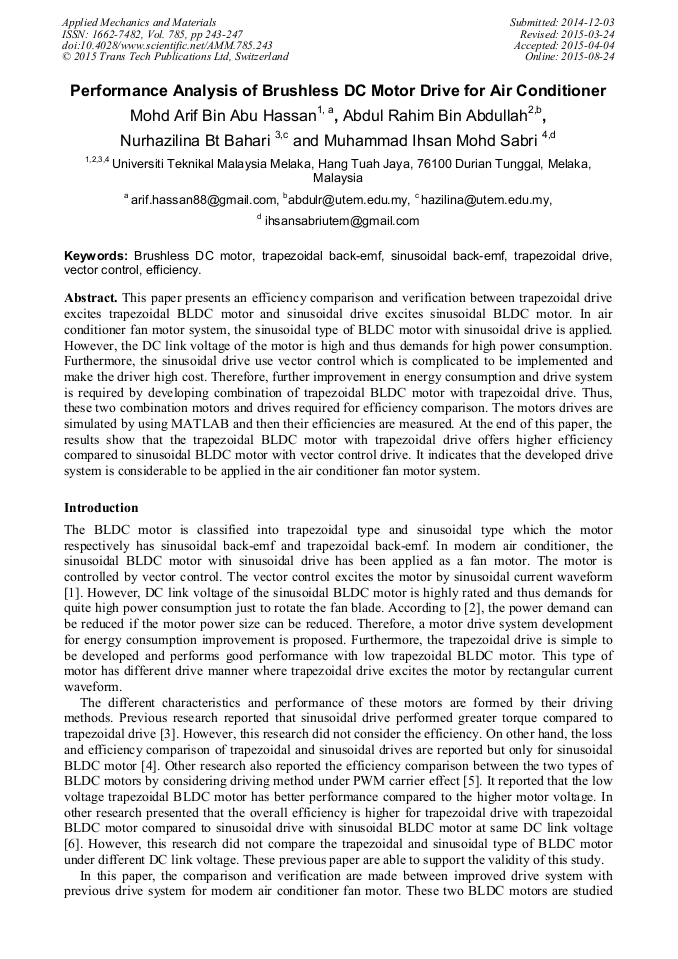

Performance Analysis of Brushless DC Motor Drive for Air Conditioner

Abstract:

This paper presents an efficiency comparison and verification of two types of Brushless DC (BLDC) motors and drives combination. The trapezoidal BLDC motor is excited by trapezoidal drive and sinusoidal BLDC motor is excited by sinusoidal drive. In air conditioner fan motor system, the sinusoidal type of BLDC motor with sinusoidal drive is applied. However, the DC link voltage of the motor is high and thus demands for high power consumption. Furthermore, the sinusoidal drive use vector control which is complicated to be implemented and make the driver high cost. Therefore, further improvement in energy consumption and drive system is required by develop combination of trapezoidal BLDC motor with trapezoidal drive. Thus, these two combination motors and drives required for efficiency comparison. The motors drives are simulated by using MATLAB and then their efficiencies are measured. At the end of this paper, the results show that the trapezoidal BLDC motor with trapezoidal drive offers higher efficiency compared to sinusoidal BLDC motor with vector control drive. It indicates that the developed drive system is considerable to be applied in the air conditioner fan motor system.

• Periodical: Applied Mechanics and Materials (Volume 785)
• Pages: 243-247
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.785.243
• Online since: August 2015
• Authors: Mohd Arif bin Abu Hassan*, Abdul Rahim bin Abdullah, Nurhazilina bt Bahari, Muhammad Ihsan Mohd Sabri
• Keywords: Brushless Dc Motor, Efficiency, Sinusoidal Back-Emf, Trapezoidal Back-Emf, Trapezoidal Drive, Vector Control

References

[1] J. Singh, B. Singh, S.P. Singh, R. Chaurasia, S. Sachan, Performance investigation of Permanent Magnet Synchronous Motor drive using vector controlled technique, Power, Control and Embedded Systems (ICPCES), 2nd International Conference on , vol., no., p.1, 11. (2012).

DOI: 10.1109/icpces.2012.6508040

[2] D.S. Parker and J. R. Sherwin, Development of high efficiency air conditioner condenser fan, Transaction American Society of Heating Refrigerating and Air Conditioning Engineers. (2005).

[3] Z.Q. Zhu, J.X. Shen, D. Howe, Flux-weakening characteristics of trapezoidal back-emf machines in brushless DC and AC modes, Proc. Int. Power Electronics and Motion Control Conf., IPEMC, (2006), Shanghai, China.

[4] G. Liu, W.G. Dunford, Comparison of sinusoidal excitation and trapezoidal excitation of a brushless permanent magnet motor, Power Electronics and Variable-Speed Drives, 1991., Fourth International Conference, p.446, 450, (1991).

[5] M. Miyamasu, K. Akatsu, Efficiency comparison between Brushless dc motor and Brushless AC motor considering driving method and machine design, IECON 2011 - 37th Annual Conference on IEEE Industrial Electronics Society, p.1830, 1835. (2011).

DOI: 10.1109/iecon.2011.6119584

[6] E. Klintberg, Comparison of Control Approaches for Permanent Magnet Motors, Master of Science Thesis, (2013), Chalmers University of Technology.

[7] J.P. John, S.S. Kumar, B. Jaya, Space Vector Modulation based Field Oriented Control scheme for Brushless DC motors, Emerging Trends in Electrical and Computer Technology (ICETECT), 2011 International Conference on , vol., no., p.346, 351. (2011).

DOI: 10.1109/icetect.2011.5760141

[8] M.A.A. Hassan, A.R. Abdullah, N. Bahari Speed Control Analysis of Brushless DC Motor Based on Maximum Amplitude DC Current Feedback. MATEC Web of Conferences, 13 . 03007p1-03007p6. ISSN 2261-236X. (2014).

DOI: 10.1051/matecconf/20141303007

[9] Y. S. Lai, F. S. Shyu, and Y. K. Lin, Novel PWM technique without causing reversal DC-link current for brushless DC motor drives with bootstrap driver, in Proc. of IEEE IAS, Vol. 3, pp.2182-2188. (2005).

DOI: 10.1109/ias.2005.1518749

[10] Mitsubishi School Text Inverter Practical Course.
