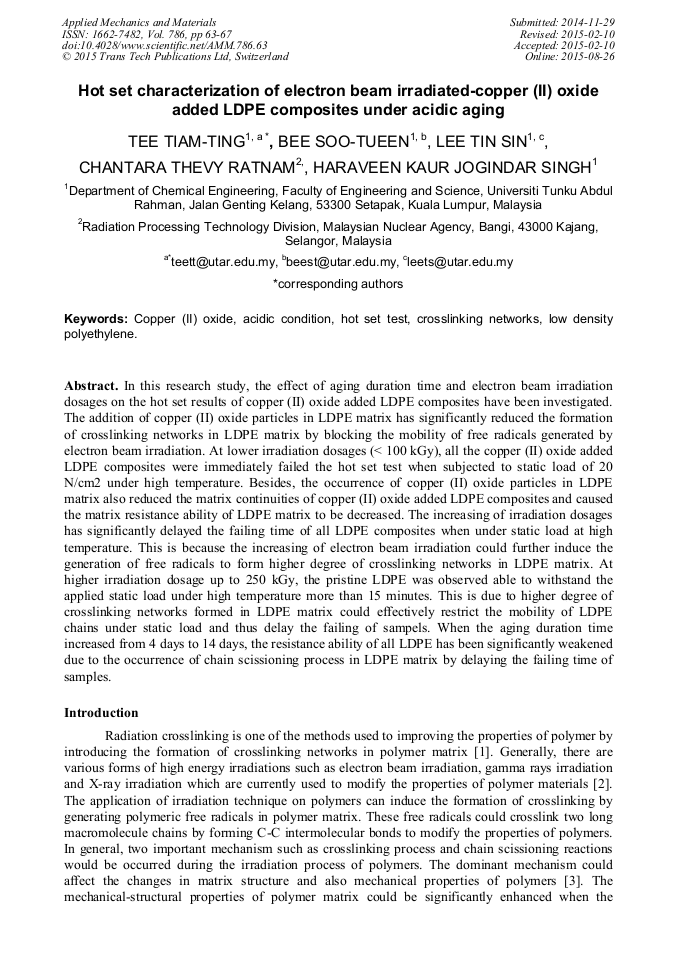

Hot Set Characterization of Electron Beam Irradiated-Copper (II) Oxide Added LDPE Composites under Acidic Aging

Abstract:

In this research study, the effect of aging duration time and electron beam irradiation dosages on the hot set results of copper (II) oxide added LDPE composites have been investigated. The addition of copper (II) oxide particles in LDPE matrix has significantly reduced the formation of crosslinking networks in LDPE matrix by blocking the mobility of free radicals generated by electron beam irradiation. At lower irradiation dosages (< 100 kGy), all the copper (II) oxide added LDPE composites were immediately failed the hot set test when subjected to static load of 20 N/cm2 under high temperature. Besides, the occurrence of copper (II) oxide particles in LDPE matrix also reduced the matrix continuities of copper (II) oxide added LDPE composites and caused the matrix resistance ability of LDPE matrix to be decreased. The increasing of irradiation dosages has significantly delayed the failing time of all LDPE composites when under static load at high temperature. This is because the increasing of electron beam irradiation could further induce the generation of free radicals to form higher degree of crosslinking networks in LDPE matrix. At higher irradiation dosage up to 250 kGy, the pristine LDPE was observed able to withstand the applied static load under high temperature more than 15 minutes. This is due to higher degree of crosslinking networks formed in LDPE matrix could effectively restrict the mobility of LDPE chains under static load and thus delay the failing of sampels. When the aging duration time increased from 4 days to 14 days, the resistance ability of all LDPE has been significantly weakened due to the occurrence of chain scissioning process in LDPE matrix by delaying the failing time of samples.

• Periodical: Applied Mechanics and Materials (Volume 786)
• Pages: 63-67
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.786.63
• Online since: August 2015
• Authors: Tiam Ting Tee*, Soo Tueen Bee, Lee Tin Sin, Chantara Thevy Ratnam, Haraveen Kaur Jogindar Singh
• Keywords: Acidic Condition, Copper (II) Oxide, Crosslinking Networks, Hot Set Test, Low Density Polyethylene

References

[1] D. Abliz, Y. Duan, X. Zhao, D. Li, Low-energy electron beam cured tape placement for out-of-autoclave fabrication of advanced polymer composites Compos. Part A: Appl. Sci. Manuf. 65 (2014) 73-82.

DOI: 10.1016/j.compositesa.2014.06.004

[2] K. A. Murray, J. E. Kennedy, B. McEvoy, O. Vrain, D Ryan, R. Cowman, C. L. Higginbotham, The effects of high energy electron beam irradiation in air on accelerated aging and on the structure property relationships of low density polyethylene, Nucl. Instrum. Methods Phys. Res. B 297 (2013).

DOI: 10.1016/j.nimb.2012.12.001

[3] J. Raghavan, Evolution of cure, mechanical properties, and residual stress during electron beam curing of a polymer composite, Compos. Part A: Appl. Sci. Manuf. 40 (2009) 300-308.

DOI: 10.1016/j.compositesa.2008.12.010

[4] P. Rytlewski, R. Malinowski, K. Moraczewski, M. Zenkiewicz, Influence of some cross-linking agents on thermal and mechanical properties of electron beam irradiated polylactide. Radiat. Phys. Chem. 70 (2010) 1052–1057.

DOI: 10.1016/j.radphyschem.2010.04.013

[5] S. Bahadur, D. Gong, The role of copper compounds as fillers in transfer film formation and wear of nylon. Wear 154 (1992), 207-223.

DOI: 10.1016/0043-1648(92)90155-2

[6] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, L. T. Sin, Effects of Montmorillonite on the Electron Beam Irradiated Alumina Trihydrate Added Polyethylene and Ethylene Vinyl Acetate Nanocomposite, Polym Compos. 33(11) (2012) 1883-1892.

DOI: 10.1002/pc.22328

[7] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, L. T. Sin, Investigation of nano-size montmorillonite on electron beam irradiated flame retardant polyethylene and ethylene vinyl acetate blends, Nuc Inst Meth Phys Res B, 299 (2013) 42-50.

DOI: 10.1016/j.nimb.2013.01.040

[8] S. Dadbin, M. Frounchi, M. H. Saeid, F. Gangi, Molecular structure and physical properties of E-beam cross-linked low-density polyethylene for wire and cable insulation applications, J. Appl Polym Sci, 86 (2002) 1959-(1969).

DOI: 10.1002/app.11111

[9] S. T. Bee, C. T. Ratnam, L. T. Sin, T. T. Tee, W. K. Wong, J. X. Lee, A. R. Rahmat, Effects of electron beam irradiation on the structural properties of polylactic acid/ polyethylene blends, Nuc Inst Meth Phys Res B, 334 (2014) 18-27.

DOI: 10.1016/j.nimb.2014.04.024

[10] S. T. Bee, C. T. Ratnam, L. T. Sin, T. T. Tee, D. Hui, A. A. Kadhum, A. R. Rahmat, J. Lau, Effects of electron beam irradiation on mechanical properties and nanostructural-morphology of montmorillonite polyvinyl alcohol composite, Compos B, 63 (2014).

DOI: 10.1016/j.compositesb.2014.03.021

[11] H. M. Ng, S. T. Bee, C. T. Ratnam, L. T. Sin, Y. Y. Phang, T. T. Tee, A. R. Rahmat, Effectiveness of trimethylopropane trimethacrylate for the electron-beam-irradiation-induced cross-linking of polylactic acid, Nuc Inst Meth Phys Res B, 319 (2014).

DOI: 10.1016/j.nimb.2013.10.027

[12] J. Sharif, K. Z. Mohd Dahlan, W. M. Z. Wan Yunus, Radiation effects on LDPE/EVA blends, Radit Phys Chem, 58 (2000) 191-195.

[13] L. T. Sin, A. R. Rahmat, W. A. W. A. Rahman, Polylactic Acid: PLA Biopolymer Technology and Application, William Andrew, United State American, 2013, pp.177-192.

[14] L. T. Sin, S. T. Bee, T. T. Tee, A. A. H. Kadhum, C. Ma, A. R. Rahmat, P. Veerasamy, Characterization of α-tocopherol as interacting agent in polyvinyl alcohol-starch blends, Carbohyd Polym, 98 (2013) 1281-1287.

DOI: 10.1016/j.carbpol.2013.07.069

[15] T. T. Tee, L. T. Sin, R. Gobinath, S. T. Bee, D. Hui, A. R. Rahmat, I. Kong, Q. H. Fang, Investigation of nano-size montmorilonite on enhancing polyvinyl alcohol-starch blends prepared via solution cast approach, Compos B, 47 (2012) 238-247.

DOI: 10.1016/j.compositesb.2012.10.033

[16] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, L. T. Sin, D. Hui, Dispersion and roles of montmorillonite on structural, flammability, thermal and mechanical behaviours of electron beam irradiated flame retarded nanocomposite, Compos B, 61 (2014).

DOI: 10.1016/j.compositesb.2014.01.035

[17] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, T. S. Lee, Interactions of montmorillonite and electron beam irradiation in enhancing the properties of alumina trihydrate-added polyethylene and ethylene vinyl acetate blends, J. Compos Mater, 48(10) (2014).

DOI: 10.1177/0021998313484073

[18] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, L. T. Sin, Effects of irradiation on mechanical, electrical and flammability properties of (low-density polyethylene)/(ethylene-[vinyl-acetate] copolymer) blends containing alumina trihydrate, J. Viny Addit Technol, 20(2) (2014).

DOI: 10.1002/vnl.21340

[19] S. T. Bee, A. Hassan, C. T. Ratnam, T. T. Tee, L. T. Sin, Investigation of enhancing effect of nano-montmorillonite on fire-retardant added low-density polyethylene-ethylene vinyl acetate hybrid system, J. Thermoplast Mater, 27(11) (2014).

DOI: 10.1177/0892705712474978
