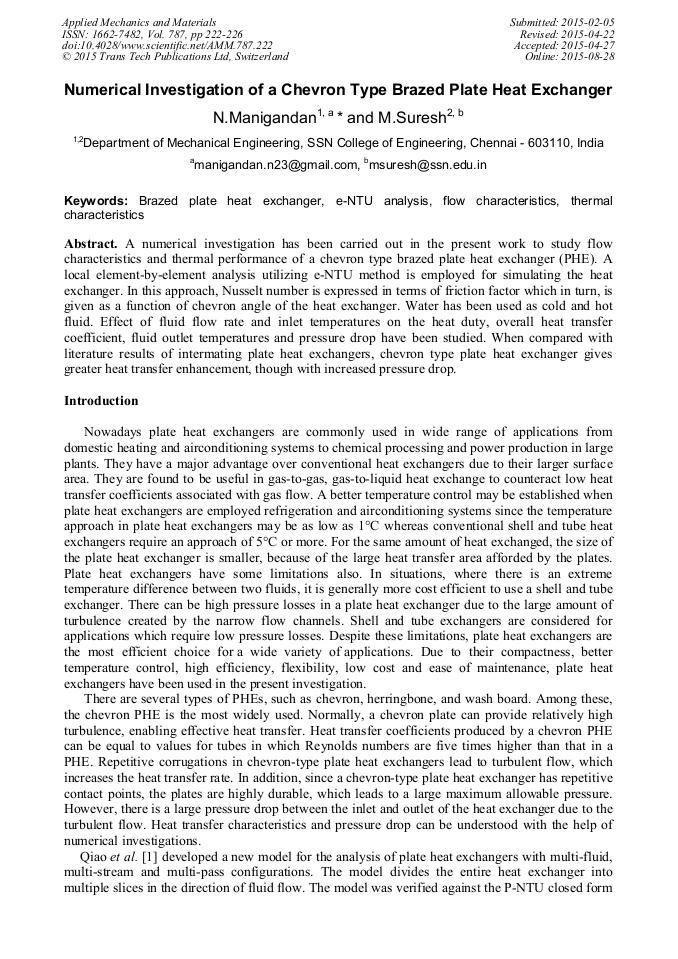

Numerical Investigation of a Chevron Type Brazed Plate Heat Exchanger

Abstract:

A numerical investigation has been carried out in the present work to study flow characteristics and thermal performance of a chevron type brazed plate heat exchanger (PHE). A local element-by-element analysis utilizing e-NTU method is employed for simulating the heat exchanger. In this approach, Nusselt number is expressed in terms of friction factor which in turn, is given as a function of chevron angle of the heat exchanger. Water has been used as cold and hot fluid. Effect of fluid flow rate and inlet temperatures on the heat duty, overall heat transfer coefficient, fluid outlet temperatures and pressure drop have been studied. When compared with literature results of intermating plate heat exchangers, chevron type plate heat exchanger gives greater heat transfer enhancement, though with increased pressure drop.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 222-226
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.222
• Online since: August 2015
• Authors: N. Manigandan*, M. Suresh
• Keywords: Brazed Plate Heat Exchanger, e-NTU Analysis, Flow Characteristics, Thermal Characteristics

References

[1] H. Qiao, V. Aute, H. Lee, K. Saleh, R Radermacher, A new model for plate heat exchangers with generalized flow configurations and phase change, Int. J. Refrigeration. 36 (2013) 622-632.

DOI: 10.1016/j.ijrefrig.2012.11.020

[2] I. Gherasim, N. Galanis, C. T. Nguyen, Heat transfer and fluid flow in a plate heat exchanger. Part II: Assessment of laminar and two-equation turbulent models, Int. J. Thermal Sciences. 50 (2011) 1499-1511.

DOI: 10.1016/j.ijthermalsci.2011.03.017

[3] T. Chen, J. Kim, H. Cho, Theoretical analysis of the thermal performance of a plate heat exchanger at various chevron angles using lithium bromide solution with nanofluid, Int. J. Refrigeration. 48 (2014) 233-244.

DOI: 10.1016/j.ijrefrig.2014.08.013

[4] A. K. Tiwari, P. Ghosh, J. Sarkar, H. Dahiya, J. Parekh, Numerical investigation of heat transfer and fluid flow in plate heat exchanger using nanofluids, Int. J. Thermal Sciences. 85 (2014) 93-103.

DOI: 10.1016/j.ijthermalsci.2014.06.015

[5] J. Lee, K. S. Lee, Flow characteristics and thermal performance in chevron type plate heat exchangers. Int. J. Heat and Mass Transfer. 78 (2014) 699-706.

DOI: 10.1016/j.ijheatmasstransfer.2014.07.033

[6] A. G. Kanaris, A. A. Mouza, S. V. Paras, Flow and Heat Transfer in a Corrugated Plate heat Exchanger using a CFD code, Chem. Engg. Tech. 29(8) (2006) 923-930.

DOI: 10.1002/ceat.200600093

[7] J. E. Hesselgreaves, Compact Heat Exchangers-Selection, Design and Operation, first edition, Pergamon, UK, (2001).
