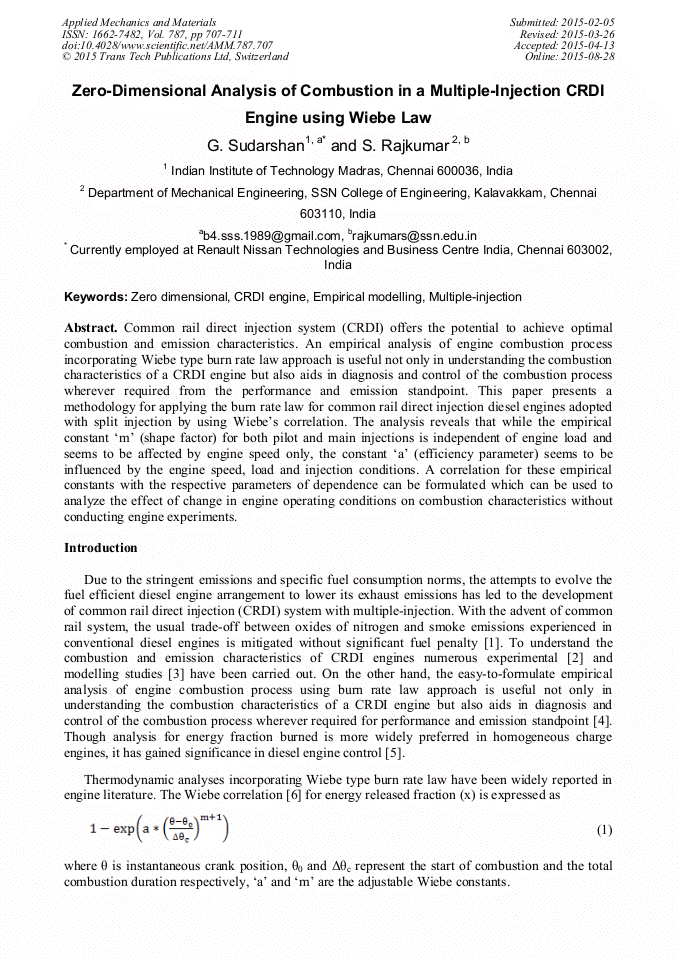

Zero-Dimensional Analysis of Combustion in a Multiple-Injection CRDI Engine Using Wiebe Law

Abstract:

Common rail direct injection system (CRDI) offers the potential to achieve optimal combustion and emission characteristics. An empirical analysis of engine combustion process incorporating Wiebe type burn rate law approach is useful not only in understanding the combustion characteristics of a CRDI engine but also aids in diagnosis and control of the combustion process wherever required from the performance and emission standpoint. This paper presents a methodology for applying the burn rate law for common rail direct injection diesel engines adopted with split injection by using Wiebe’s correlation. The analysis reveals that while the empirical constant ‘m’ (shape factor) for both pilot and main injections is independent of engine load and seems to be affected by engine speed only, the constant ‘a’ (efficiency parameter) seems to be influenced by the engine speed, load and injection conditions. A correlation for these empirical constants with the respective parameters of dependence can be formulated which can be used to analyze the effect of change in engine operating conditions on combustion characteristics without conducting engine experiments.

• Periodical: Applied Mechanics and Materials (Volume 787)
• Pages: 707-711
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.787.707
• Online since: August 2015
• Authors: G. Sudarshan*, S. Rajkumar
• Keywords: CRDI Engine, Empirical Modelling, Multiple-Injection, Zero Dimensional

References

[1] S. Rajkumar, P.S. Mehta and S. Bakshi, Parametric investigation for NOx and Soot emissions in multiple-injection CRDI engine using phenomenological model. SAE Paper 2011-01-1810.

DOI: 10.4271/2011-01-1810

[2] M. Zheng and R. Kumar, Implementation of multiple-pulse injection strategies to enhance the homogeneity for simultaneous low NOx and soot diesel combustion, International Journal of Thermal Sciences. 48 (2009) 1829–1841.

DOI: 10.1016/j.ijthermalsci.2009.02.009

[3] T. Hiroyasu, M. Miki, M. Kim S. Watanabe, H. Hiroyasu and H. Miao, Reduction of heavy duty diesel engine emission and fuel economy with multi-objective genetic algorithm and phenomenological model. SAE Paper 2004-01-0531.

DOI: 10.4271/2004-01-0531

[4] U. Asad and M. Zheng, Fast heat release characterization of a diesel engine, International Journal of Thermal Sciences. 47 (2008) 1688-1700.

DOI: 10.1016/j.ijthermalsci.2008.01.009

[5] M.F.J. Brunt and K.C. Platts, Calculation of heat release in direct injection diesel engines. SAE Paper 1999-01-0187.

DOI: 10.4271/1999-01-0187

[6] J.B. Heywood, Internal combustion engine fundamentals, 2nd ed, Tata McGraw-Hill, New Delhi, (1988).

[7] G. Woschni and F. Anisits, Experimental investigation and mathematical presentation of rate of heat release in diesel engines dependent upon engine operating conditions. SAE Paper 740086.

DOI: 10.4271/740086

[8] N. Miyamoto, T. Chikahisa, T. Murayama and R. Sawyer, Description and analysis of diesel engine rate of combustion and performance using Wiebe's functions. SAE Paper 850107.

DOI: 10.4271/850107

[9] Y. Huang, L. Zhang and V. Liu, The optimum of heat release patterns in high speed D.I. diesel engine. SAE Paper 94169.

DOI: 10.4271/941694

[10] R. Kumar, G.T. Reader and M. Zheng, A preliminary study of ignition consistency and heat release analysis for a common rail diesel engine. SAE Paper 2004-01-0932.

DOI: 10.4271/2004-01-0932

[11] T. Katrasnik, F. Trenc and S.R. Opresnik, A new criterion to determine start of combustion in diesel engines, Journal of Engineering for Gas Turbines and Power. 128 (2006) 928-933.

DOI: 10.1115/1.2179471

[12] P.J. Shayler, M.W. Wisernan and T. Ma, Improving the Determination of Mass Fraction Burnt. SAE Paper 900351.

[13] K. Anand, R.P. Sharma and P.S. Mehta, Experimental investigations on combustion, performance, and emissions characteristics of a neat biodiesel-fuelled, turbocharged, direct injection diesel engine, Proceedings in the Institution of Mechanical Engineers. 4 (2010).

DOI: 10.1243/09544070jauto1342

[14] S.C. Chapra and R. P. Canale, Numerical methods for engineers, 4th ed, Tata McGraw-Hill, New Delhi, (2002).
