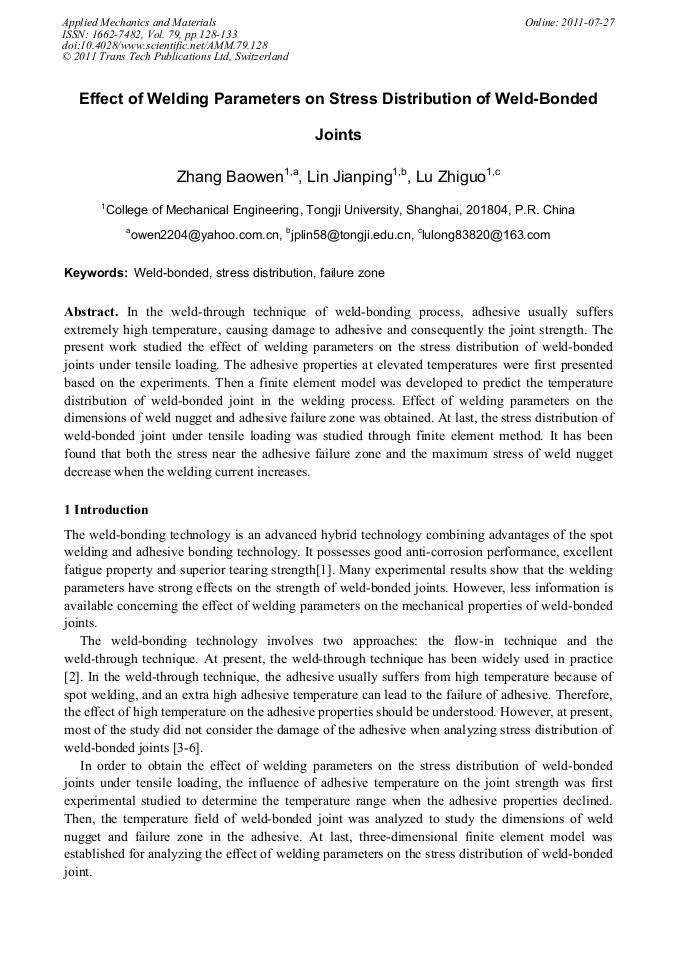

Effect of Welding Parameters on Stress Distribution of Weld-Bonded Joints

Abstract:

In the weld-through technique of weld-bonding process, adhesive usually suffers extremely high temperature, causing damage to adhesive and consequently the joint strength. The present work studied the effect of welding parameters on the stress distribution of weld-bonded joints under tensile loading. The adhesive properties at elevated temperatures were first presented based on the experiments. Then a finite element model was developed to predict the temperature distribution of weld-bonded joint in the welding process. Effect of welding parameters on the dimensions of weld nugget and adhesive failure zone was obtained. At last, the stress distribution of weld-bonded joint under tensile loading was studied through finite element method. It has been found that both the stress near the adhesive failure zone and the maximum stress of weld nugget decrease when the welding current increases.

• Periodical: Applied Mechanics and Materials (Volume 79)
• Pages: 128-133
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.79.128
• Online since: July 2011
• Authors: Bao Wen Zhang, Jian Ping Lin, Zhi Guo Lu
• Keywords: Failure Zone, Stress Distribution, Weld-Bonded

References

[1] S.M.H. DARWISH, A. GHANYA: Materials Processing Technology Vol. 105 (2000), pp.221-229.

[2] Sun Haitao, Zhang Yansong and Lai Xinmin: Transactions of the China Welding Institution Vol. 30(2009), pp.17-20.

[3] Chang Baohua, Shi Yaowu and Lu Liangqing: Chinese Journal of Mechanical Engineering Vol. 36(2000), pp.106-110.

[4] M. Marya, X.Q. Gayden: Welding Journal, Vol. 84(2005), pp.172-182.

[5] You Min, Li Zhi: Transactions of the China Welding Institution Vol. 30( 2009), pp.13-16.

[6] You Min, Yan Jialing and Zheng Xiaoling: Journal of Aeronautical Materials Vol. 29(2009), pp.98-101.

[7] Z.G. Hou, I.S. Kim and Y.X. Wang: Materials Processing Technology Vol. 185 (2007), pp.160-165.
