Building the Structure and the Neuroemulator Angular Velocity's Learning Algorithm Selection of the Electric Drive of TVR-IM Type

Abstract:

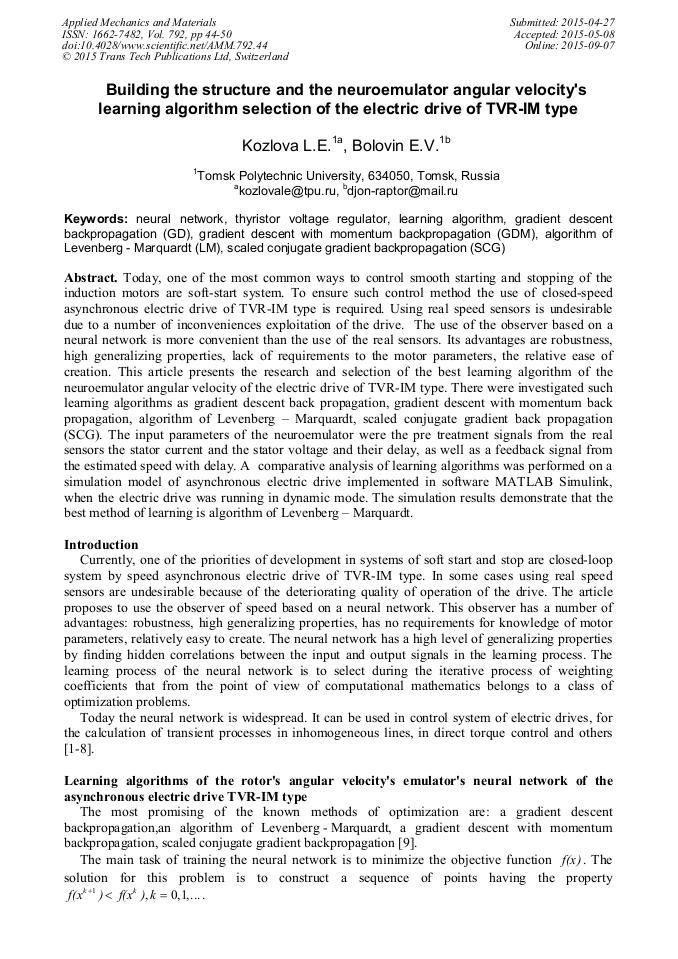

Today, one of the most common ways to control smooth starting and stopping of the induction motors are soft-start system. To ensure such control method the use of closed-speed asynchronous electric drive of TVR-IM type is required. Using real speed sensors is undesirable due to a number of inconveniences exploitation of the drive. The use of the observer based on a neural network is more convenient than the use of the real sensors. Its advantages are robustness, high generalizing properties, lack of requirements to the motor parameters, the relative ease of creation. This article presents the research and selection of the best learning algorithm of the neuroemulator angular velocity of the electric drive of TVR-IM type. There were investigated such learning algorithms as gradient descent back propagation, gradient descent with momentum back propagation, algorithm of Levenberg – Marquardt, scaled conjugate gradient back propagation (SCG). The input parameters of the neuroemulator were the pre treatment signals from the real sensors the stator current and the stator voltage and their delay, as well as a feedback signal from the estimated speed with delay. A comparative analysis of learning algorithms was performed on a simulation model of asynchronous electric drive implemented in software MATLAB Simulink, when the electric drive was running in dynamic mode. The simulation results demonstrate that the best method of learning is algorithm of Levenberg – Marquardt.

• Periodical: Applied Mechanics and Materials (Volume 792)
• Pages: 44-50
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.792.44
• Online since: September 2015
• Authors: L.E. Kozlova, E.V. Bolovin
• Keywords: Algorithm of Levenberg - Marquardt (LM), Gradient Descent Backpropagation (GD), Gradient Descent with Momentum Backpropagation (GDM), Learning Algorithm, Neural Network, Scaled Conjugate Gradient Backpropagation (SCG), Thyristor Voltage Regulator
