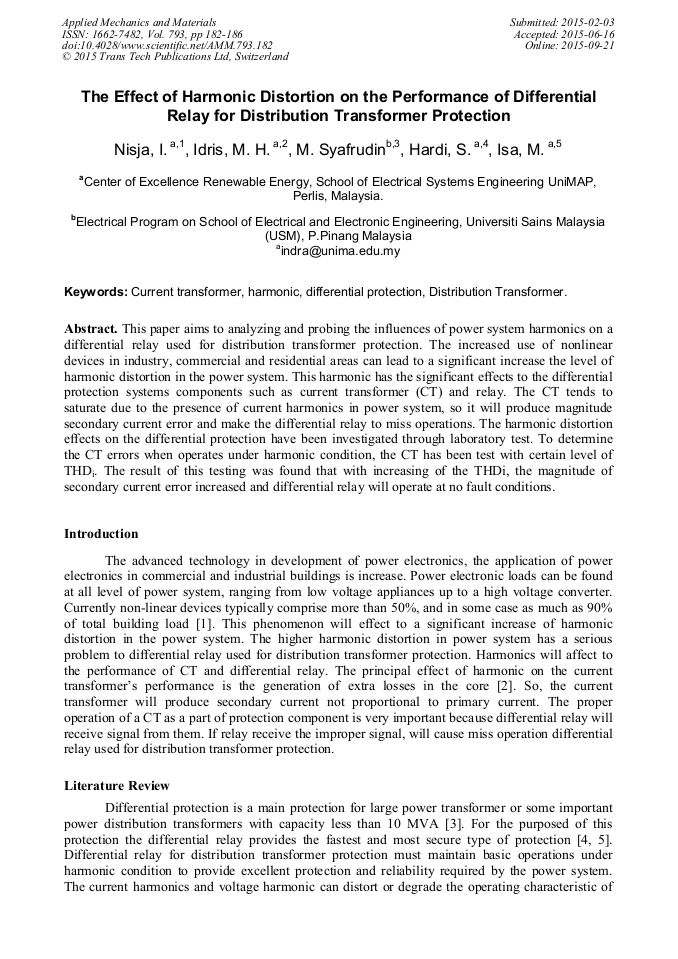

The Effect of Harmonic Distortion on the Performance of Differential Relay for Distribution Transformer Protection

Abstract:

This paper aims to analyzing and probing the influences of power system harmonics on a differential relay used for distribution transformer protection. The increased use of nonlinear devices in industry, commercial and residential areas can lead to a significant increase the level of harmonic distortion in the power system. This harmonic has the significant effects to the differential protection systems components such as current transformer (CT) and relay. The CT tends to saturate due to the presence of current harmonics in power system, so it will produce magnitude secondary current error and make the differential relay to miss operations. The harmonic distortion effects on the differential protection have been investigated through laboratory test. To determine the CT errors when operates under harmonic condition, the CT has been test with certain level of THD_i. The result of this testing was found that with increasing of the THDi, the magnitude of secondary current error increased and differential relay will operate at no fault conditions.

• Periodical: Applied Mechanics and Materials (Volume 793)
• Pages: 182-186
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.793.182
• Online since: September 2015
• Authors: Indra Nisja*, M.H. Idris, M. Syafrudin, S. Hardi, M. Isa
• Keywords: Current Transformer, Differential Protection, Distribution Transformer, Harmonic

References

[1] Aiello, M., Cataliotti, A., Cosentino, V. and Nuccio, S. (2005), A Self-Synchronizing Instrument for Harmonic Source Detenction in Power System, IEEE Transaction on Instr. and Measur., Vol. 54, No. 1, pp.15-23, February.

DOI: 10.1109/tim.2004.834600

[2] Jayasinghe, N. R., Lucas, J. R. and Perera, K. B. I. M. (2003) Power System Harmonic Effects on Distribution Transformers and New Design Considerations for K Factor Transformers, IEE Sri Lanka Annual Sessions – September.

[3] Ho, J. M. and Liu, C. C. (2001).

[4] Arrillaga, J., Smith, B. C. Watson, N. R. and Wood, A. R. (1997), Power System Harmonic Analysis, John Wiley & Sons.

[5] Kennedy, S. P. and Barry, W. (2000), Power Quality Primer, Mc Graw Hill.

[6] Hayward, C. D. (1941), Harmonic-Current-Restrained Relays for Transformer Differential Protection, AIEE Transactions, Vol. 60, pp.377-382.

DOI: 10.1109/ee.1941.6432171

[7] Leonard, L. G. (2001), The Electric Power Engineering Handbook, The engineering handbook series ISBN 0-8493-8578-4, by CRC Press LLC.

[8] Sankaran, C. (2002), Power Quality, CRC Press.

[9] Schweitzer and Daqing, H. (1993), Filtering for Protective Relays, Schweitzer Engineering Laboratories, Inc. Pullman, Washington. 47th Annual Georgia Tech Conference April 28-30.
