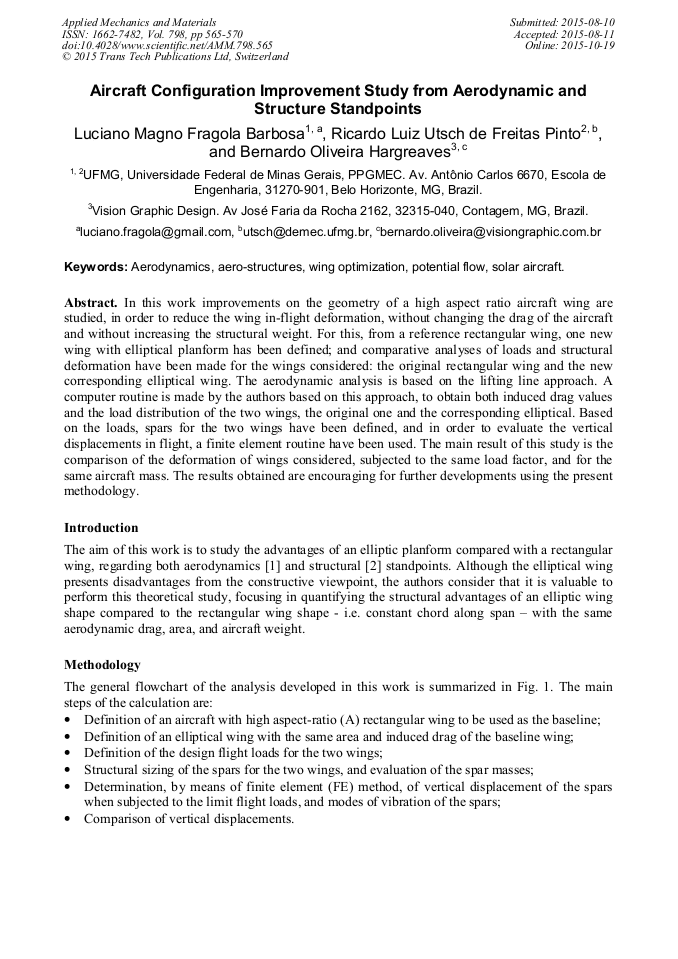

Aircraft Configuration Improvement Study from Aerodynamic and Structure Standpoints

Abstract:

In this work improvements on the geometry of a high aspect ratio aircraft wing are studied, in order to reduce the wing in-flight deformation, without changing the drag of the aircraft and without increasing the structural weight. For this, from a reference rectangular wing, one new wing with elliptical planform has been defined; and comparative analyses of loads and structural deformation have been made for the wings considered: the original rectangular wing and the new corresponding elliptical wing. The aerodynamic analysis is based on the lifting line approach. A computer routine is made by the authors based on this approach, to obtain both induced drag values and the load distribution of the two wings, the original one and the corresponding elliptical. Based on the loads, spars for the two wings have been defined, and in order to evaluate the vertical displacements in flight, a finite element routine have been used. The main result of this study is the comparison of the deformation of wings considered, subjected to the same load factor, and for the same aircraft mass. The results obtained are encouraging for further developments using the present methodology.

• Periodical: Applied Mechanics and Materials (Volume 798)
• Pages: 565-570
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.798.565
• Online since: October 2015
• Authors: Luciano Magno Fragola Barbosa*, Ricardo Luiz Utsch de Freitas Pinto, Bernardo Oliveira Hargreaves
• Keywords: Aerodynamics, Aero-Structures, Potential Flow, Solar Aircraft, Wing Optimization

References

[1] H. Schlichting, E. Truckenbrodt: Aerodynamics of the Airplane (McGraw-Hill, USA 1979).

[2] M. Niu: Airframe Structural Design (Conmilit Press Ltd, Hong Kong, 1988).

[3] NASA, Information on http: /www. nasa. gov/centers/dryden/news/ResearchUpdate/Helios.

[4] B. McCormick: Aerodynamics, Aeronautics and Flight Mechanics (John Wiley, USA 1979).

[5] Barbosa, L., Oliveira, P: Weight Analysis for Low-Speed and Sun-Powered Aircraft (SAE paper 2014-36-0508, Brazil 2014).

DOI: 10.4271/2014-36-0508

[6] FAA, USA, information on https: /www. faa. gov/regulations_policies/faa_regulations.

[7] Altair Engineering Inc., USA, information on http: /www. altairhyperworks. com.
