Influence of Crumb Rubber on Impact Energy of Steel Fiber Concrete Beams

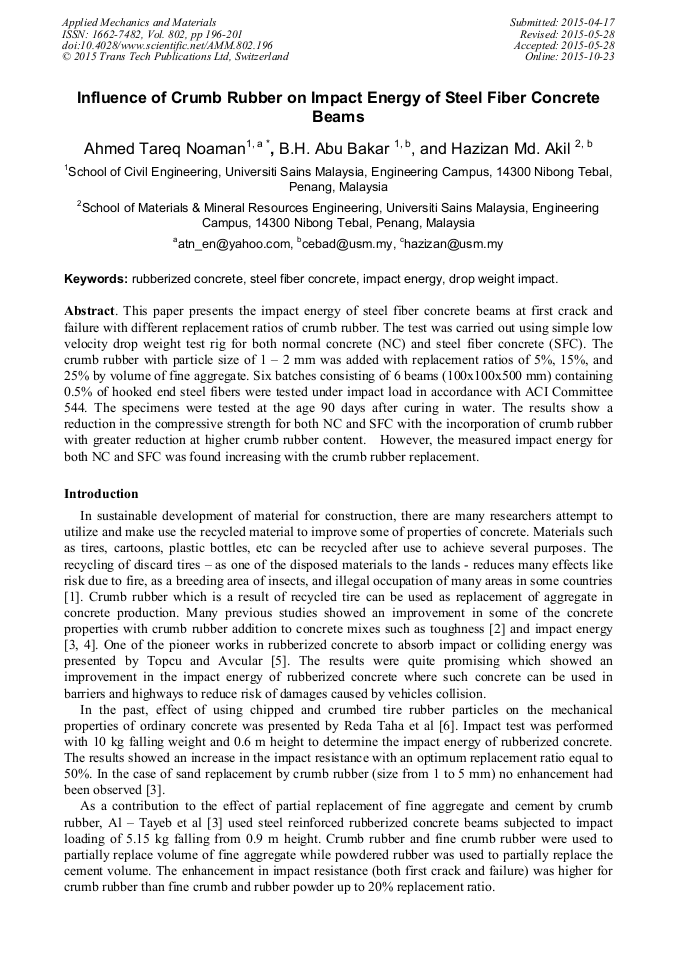

Article Preview

Abstract:

This paper presents the impact energy of steel fiber concrete beams at first crack and failure with different replacement ratios of crumb rubber. The test was carried out using simple low velocity drop weight test rig for both normal concrete (NC) and steel fiber concrete (SFC). The crumb rubber with particle size of 1 – 2 mm was added with replacement ratios of 5%, 15%, and 25% by volume of fine aggregate. Six batches consisting of 6 beams (100x100x500 mm) containing 0.5% of hooked end steel fibers were tested under impact load in accordance with ACI Committee 544. The specimens were tested at the age 90 days after curing in water. The results show a reduction in the compressive strength for both NC and SFC with the incorporation of crumb rubber with greater reduction at higher crumb rubber content. However, the measured impact energy for both NC and SFC was found increasing with the crumb rubber replacement.

You might also be interested in these eBooks

Modern Civil Engineering in Trend of the Sustainable Infrastructure Development

Info:

Periodical:

Applied Mechanics and Materials (Volume 802)

Pages:

196-201

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.802.196

Citation:

Cite this paper

Online since:

October 2015

Authors:

Ahmed Tareq Noaman*, Badorul Hisham Abu Bakar, Hazizan Md. Akil

Keywords:

Drop Weight Impact, Impact Energy, Rubberized Concrete, Steel Fiber Concrete

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] R. Siddique, T.R. Naik, Properties of concrete containing scrap tire rubber – an overview, Waste Manag. 24 (2004) 563-9.

DOI: 10.1016/j.wasman.2004.01.006

[2] M.M. Al-Tayeb, B.H. Abu Bakar, H.M. Akil, H. Ismail, Effect of partial replacements of sand and cement by waste rubber on the fracture characteristics of concrete, Polymer-Plastics Techn. and Eng. 51 (2012) 583-89.

DOI: 10.1080/03602559.2012.659307

[3] M.M. Al-Tayeb, B.H. Abu Bakar, H. Ismail, H.M. Akil, Impact resistance of concrete with partial replacements of sand and cement by waste rubber, Polymer-Plastics Techn. and Eng. 51 (2012) 1230-36.

DOI: 10.1080/03602559.2012.696767

[4] B.H. Abu Bakar, M.M. Al-Tayeb, H. Ismail, H.M. Akil, Impact energy for first crack of reinforced concrete with partial replacements of sand by rubber 1 mm particle size, Advanced Materials Research. 701 (2013) 261-64. 5.

DOI: 10.4028/www.scientific.net/amr.701.261

[5] I.B. Topçu, N. Avcular, Collision behaviours of rubberized concrete, Cem. and Concrete Research. 27 (1997) 1893 – 98.

DOI: 10.1016/s0008-8846(97)00204-4

[6] M.M. Reda Taha, A.S. El-Dieb, M.A. Abd El-Wahab, M.E. Abdel-Hameed, Mechanical, fracture, and microstructural investigations of rubber concrete, J. of Materials in Civil Eng. 20 (2008) 640-49.

DOI: 10.1061/(asce)0899-1561(2008)20:10(640)

[7] A. Turatsinze, J.L. Granju, S. Bonnet, Positive synergy between steel-fibres and rubber aggregates: effect on the resistance of cement-based mortars to shrinkage cracking, Cem. and Concrete Research. 36 (2006) 1692-97.

DOI: 10.1016/j.cemconres.2006.02.019

[8] X. Yi, X. Fan, Flexural-tensile properties of layered steel fiber reinforced rubber concrete, J. of Wuhan Univ. of Technology-Mater. Sci. Ed. 24 (2009) 846-48.

DOI: 10.1007/s11595-009-5846-2

[9] F. Liu,G. Chen, L. Li,Y. Guo, Study of impact performance of rubber reinforced concrete, Const. and Building Materials. 36 (2012) 604-16.

DOI: 10.1016/j.conbuildmat.2012.06.014

[10] P. Sukontasukkul, S. Jamnam, M. Sappakittipakorn, N. Banthia, Preliminary study on bullet resistance of double-layer concrete panel made of rubberized and steel fiber reinforced concrete, Materials and Structures. 47 (2013) 117-25.

DOI: 10.1617/s11527-013-0049-x

[11] American Concrete Institute (ACI), ACI Committee 544 Measurement of properties of fiber reinforced concrete, in ACI Material Journal. (1988) 583–93.

DOI: 10.14359/2355

[12] American Society for Testing and Materials (ASTM), ASTM C192/C192M. 14. Standard Practice for Making and Curing Concrete Test Specimens in the Laboratory. PA, USA. 4. 02 (2014).

[13] Y. Mohammadi, R. Carkon-Azad, S.P. Singh, S.K. Kaushik, Impact resistance of steel fibrous concrete containing fibres of mixed aspect ratio, Const. and Building Materials. 23 (2009) 183-89.

DOI: 10.1016/j.conbuildmat.2008.01.002

[14] N. Banthia, Impact Resistance of Concrete, Univ. of British Columbia, Canada, (1987).

[15] A.M. Ghaly, J.D. Cahill IV, Correlation of strength, rubber content, and water to cement ratio in rubberized concrete, Canadian J. of Civil Eng. 32 (2005) 1075-81.

DOI: 10.1139/l05-063
