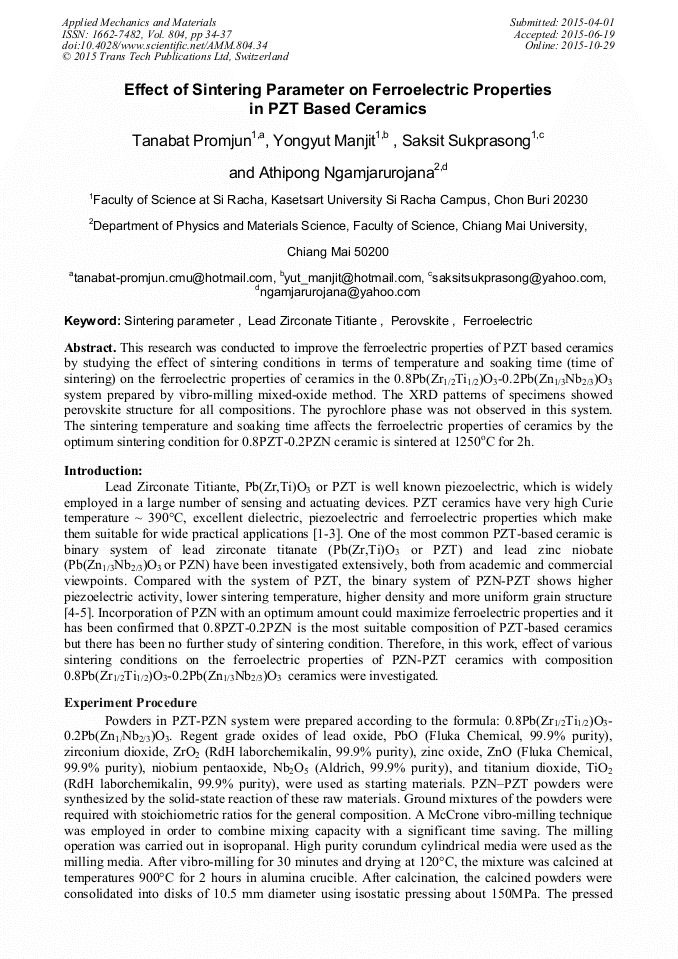

Effect of Sintering Parameter on Ferroelectric Properties in PZT Based Ceramics

Abstract:

This research was conducted to improve the ferroelectric properties of PZT based ceramics by studying the effect of sintering conditions in terms of temperature and soaking time (time of sintering) on the ferroelectric properties of ceramics in the 0.8Pb (Zr_1/2Ti_1/2)O₃-0.2Pb (Zn_1/3Nb_2/3)O₃ system prepared by vibro-milling mixed-oxide method. The XRD patterns of specimens showed perovskite structure for all compositions. The pyrochlore phase was not observed in this system. The sintering temperature and soaking time affects the ferroelectric properties of ceramics by the optimum sintering condition for 0.8PZT-0.2PZN ceramic is sintered at 1250°C for 2h.

You might also be interested in these eBooks

Innovative Materials and Technology for Sustainable Development of Society

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 804)

Pages:

34-37

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.804.34

Citation:

Cite this paper

Online since:

October 2015

Authors:

Tanabat Promjun, Yongyut Manjit, Saksit Sukprasong, Athipong Ngamjarurojana*

Keywords:

Ferroelectric, Lead Zirconate Titiante, Perovskite, Sintering Parameter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] B. Jaffe, W. R. Cook, H. Jaffe, Piezoelectric ceramic, Academic Press, (1971).

Google Scholar

[2] S.L. Fu, S.Y. Cheng, C.C. Wei, Effects of doping pairs on the preparation and dielectricity of PLZT ceramics, J. Ferroelectrics. 67 (1) (1986) 93-102.

DOI: 10.1080/00150198608245011

Google Scholar

[3] G.A. Somlenski, A.I. Agramovaskaya, Dielectric polarization of a number of complex compounds, Sov. Phys. Solid State. 1 (10) (1960) 1429-1437.

Google Scholar

[4] D.W. Wang, M.S. Cao, J. Yuan, R. Lu, H. -B. Li, H. -B. Lin, Q. -L. Zhao, D. -Q. Zhang, Effect of sintering temperature and time on densification, microstructure and properties of the PZT/ZnO nanowhisker piezoelectric composites, J. Aloysl. Comp. 509 (24) (2014).

DOI: 10.1016/j.jallcom.2011.03.186

Google Scholar

[5] W. Liu, J. Xu, R. Lv, Y. Wang, H. Xu, J. Yang, Effects of sintering behavior on piezoelectric properties of porous PZT ceramics, Cera. Inter. 40 (1) (2014) 2005-(2010).

DOI: 10.1016/j.ceramint.2013.07.110

Google Scholar

[6] Z. Yang, Y. Chang, H. Li, Piezoelectric and dielectric properties of PZT–PZN–PMS ceramics prepared by molten salt synthesis method, Mater. R. Bull., 2005, 40 (12): 2110-2119.

DOI: 10.1016/j.materresbull.2005.07.010

Google Scholar

[7] S. Zhao, H. Wu, Q. Sun, Study on PSN–PZN–PZT quaternary piezoelectric ceramics near the morphotropic phase boundary, Mater. Sci. Enginee. B. 123(3) (2005) 203-210.

DOI: 10.1016/j.mseb.2005.08.001

Google Scholar

[8] Y. -D. Hou, M. -K. Zhu, H. Wang, B. Wang, H. Yan, C. -S. Tian, Piezoelectric properties of new MnO2-added 0. 2 PZN–0. 8 PZT ceramic, Mater. Lett. 58 (9) (2004) 1508-1512.

DOI: 10.1016/j.matlet.2003.10.013

Google Scholar

[9] N. Vittayakorn, G. Rujijanagul, T. Tunkasiri, X. Tan, D. P. Cann, Influence of processing conditions on the phase transition and ferroelectric properties of Pb(Zn1/3Nb2/3)O3−Pb(Zr1/2Ti1/2)O3 ceramics, Mater. Sci. Enginee. B. 108 (3) (2004).

DOI: 10.1016/j.mseb.2004.01.006

Google Scholar
