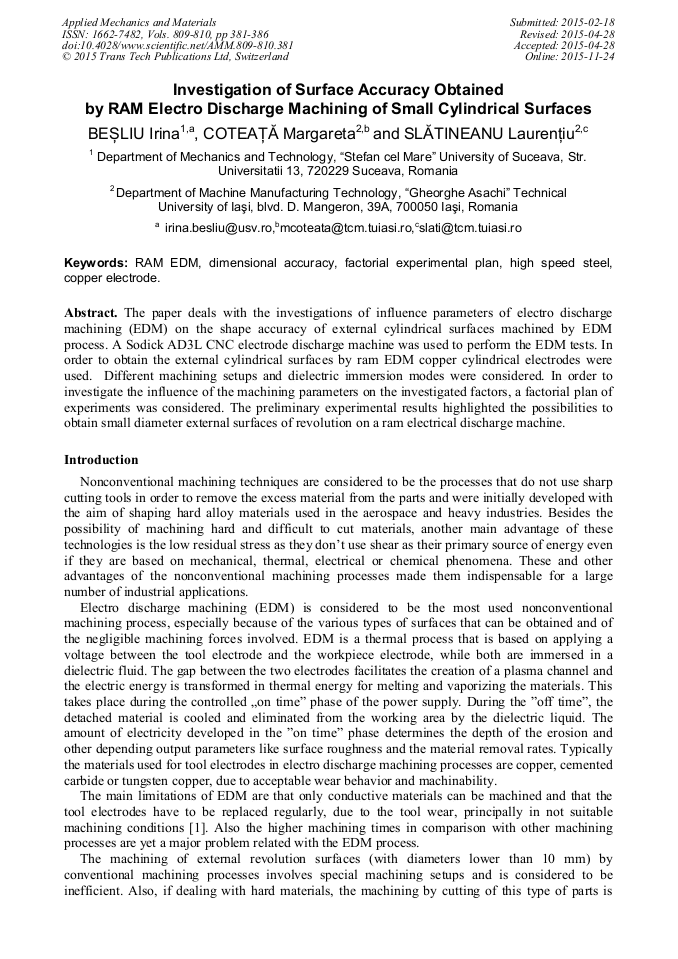

Investigation of Surface Accuracy Obtained by RAM Electro Discharge Machining of Small Cylindrical Surfaces

Abstract:

The paper deals with the investigations of influence parameters of electro discharge machining (EDM) on the shape accuracy of external cylindrical surfaces machined by EDM process. A Sodick AD3L CNC electrode discharge machine was used to perform the EDM tests. In order to obtain the external cylindrical surfaces by RAM EDM copper cylindrical electrodes were used. Different machining setups and dielectric immersion modes were considered. In order to investigate the influence of the machining parameters on the investigated factors a factorial plan of experiments was considered. The preliminary experimental results highlighted the possibilities to obtain small diameter external surfaces of revolution on a ram electrical discharge machine.

• Periodical: Applied Mechanics and Materials (Volumes 809-810)
• Pages: 381-386
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.809-810.381
• Online since: November 2015
• Authors: Irina Beşliu*, Margareta Coteaţă, Laurenţiu Slătineanu
• Keywords: Cooper Electrode, Dimensional Accuracy, Factorial Experimental Plan, High Speed Steel, RAM EDM

References

[1] D. Gurguí, E. Vázquez, I. Ferrer, Influence of the Process Parameters to Manufacture Microcavities by Electro Discharge Machining (EDM), Proceedings of the 5th Manufacturing Engineering Society International Conference, Zaragoza, 2013, pp.179-185.

DOI: 10.1016/j.proeng.2013.08.254

[2] L. Slătineanu, M. Coteaţă, L. Gherman, O. Dodun, I. Beşliu, Ş. Stoica, RAM electrical discharge machining of small diameter external surfaces of revolution, Annals of MTeM for 2013 & Proceedings of the 11th International MTeM Conference, Cluj-Napoca, Romania, 2013, pp.247-252.

DOI: 10.4028/www.scientific.net/kem.611-612.650

[3] L. Slătineanu, M. Coteaţă, L. Gherman, I. Beşliu, M. Radovanovic, C. Mircescu, Ş. Stoica, Diminishing Shape Errors at Electrical Discharge Machining of External Cylindrical Surfaces, Applied Mechanics and Materials. 371 (2013) 305-309.

DOI: 10.4028/www.scientific.net/amm.371.305

[4] L. Slătineanu, M. Coteaţă, I. Beşliu, L. Gherman, O. Dodun, Machining of external cylindrical surfaces on a RAM electrical discharge machine, Key Engineering Materials 554-557 (2013) 1800-1805.

DOI: 10.4028/www.scientific.net/kem.554-557.1800

[5] L. Slatineanu, M. Coteață, H. -P. Schulze, O. Dodun, I. Beşliu, L. Gherman, Small Diameter External Cylindrical Surfaces Obtained by Ram Electrical Discharge Machining, Key Engineering Materials. 05 (2014) 650-655.

DOI: 10.4028/www.scientific.net/kem.611-612.650

[6] S. Spadło, D. Dudek, Investigation of the shape accuracy of cylindrical holes machined by EDM process, Journal of Machine Engineering. 12, 2 (2012) 98-104.
