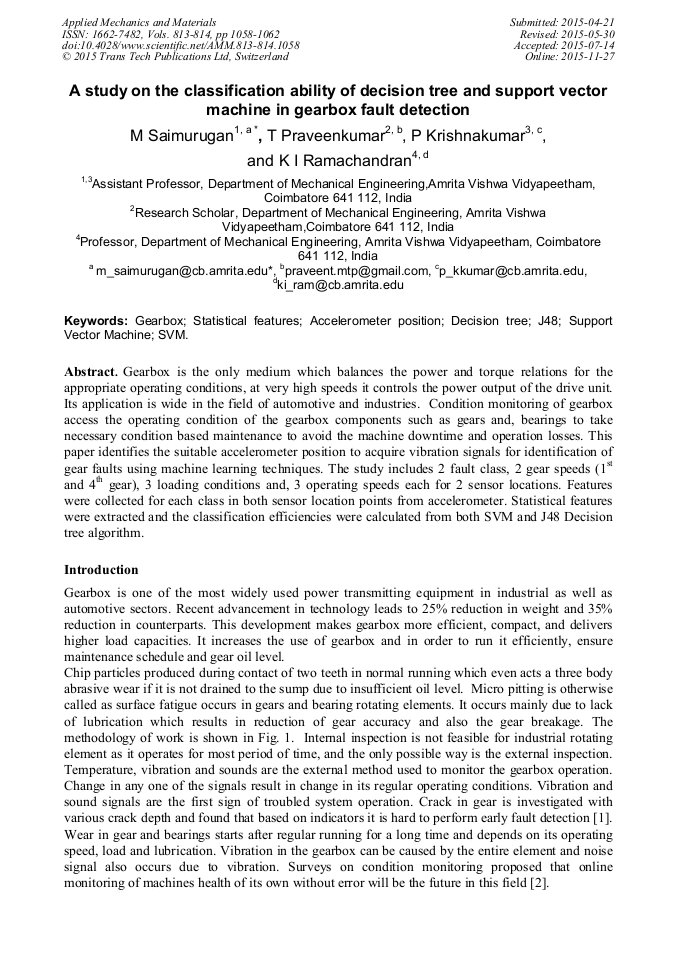

A Study on the Classification Ability of Decision Tree and Support Vector Machine in Gearbox Fault Detection

Abstract:

Gearbox is the only medium which balances the power and torque relations for the appropriate operating conditions, at very high speeds it controls the power output of the drive unit. Its application is wide in the field of automotive and industries. Condition monitoring of gearbox access the operating condition of the gearbox components such as gears and, bearings to take necessary condition based maintenance to avoid the machine downtime and operation losses. This paper identifies the suitable accelerometer position to acquire vibration signals for identification of gear faults using machine learning techniques. The study includes 2 fault class, 2 gear speeds (1^st and 4^th gear), 3 loading conditions and, 3 operating speeds each for 2 sensor locations. Features were collected for each class in both sensor location points from accelerometer. Statistical features were extracted and the classification efficiencies were calculated from both SVM and J48 Decision tree algorithm.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 1058-1062
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.1058
• Online since: November 2015
• Authors: M. Saimurugan*, T. Praveenkumar, P. Krishnakumar, K.I. Ramachandran
• Keywords: Accelerometer Position, Decision Tree, Gearbox, J48, Statistical Features, Support Vector Machine, SVM

References

[1] Omar D. Mohammed, Matti Rantatalo, Jan-Olov Aidanpaa, Uday Kumar, Vibration signal analysis for gear fault diagnosis with various crack progression scenarios, Mechical Systems and Signal Processing. 41 (2013) 176-195.

DOI: 10.1016/j.ymssp.2013.06.040

[2] K S. Andrew, Jardine, Daming Lin, Dragan Banjevic, A review on machinery diagnostics and prognostics implementing condition-based maintenance, Mechanical systems and signal processing. 20 (2006) 1483–1510.

DOI: 10.1016/j.ymssp.2005.09.012

[3] Mohamed Meselhy Eltoukhy, Ibrahima Faye, Brahim Belhaouari Samir, A statistical based feature extraction method for breast cancer diagnosis in digital mammogram using multi resolution representation, Computers in Biology and Medicine. 42 (2012).

DOI: 10.1016/j.compbiomed.2011.10.016

[4] V. Muralidharan, S. Ravikumar, H. Kangasabapathy, Condition monitoring of Self aligning carrying idler (SAI) in belt-conveyor system using statistical features and decision tree algorithm, Measurement. 58 (2014) 274–279.

DOI: 10.1016/j.measurement.2014.08.047

[5] Wei Li, Zhencai Zhu, Fan Jiang, Gongbo Zhou, Guoan Chen, Fault diagnosis of rotating machinery with a novel statistical feature extraction and evaluation method, Mechical Systems and Signal Processing. 50-51 (2015) 414–426.

DOI: 10.1016/j.ymssp.2014.05.034

[6] Achmad Widodo, Bo-Suk Yang, Support vector machine in machine condition monitoring and fault diagnosis, Mechanical systems and signal processing. 21 (2007) 2560–2574.

DOI: 10.1016/j.ymssp.2006.12.007

[7] S. Bansal, S. Sahoo, R. Tiwari, D.J. Bordoloi, Multiclass fault diagnosis in gears using support vector machine algorithms based on frequency domain data, Measurement. 46 (2013) 3469-3481.

DOI: 10.1016/j.measurement.2013.05.015

[8] S. Pavlos, Georgilakis, T. Alkiviadis, Gioulekas, T. Athanassios, Souflaris, A decision tree method for the selection of winding material in power transformers, Journal of Materials Processing Technology. 181 (2007) 281–285.

DOI: 10.1016/j.jmatprotec.2006.03.036

[9] M. Saimurugan, K.I. Ramachandran, V. Sugumaran and N.R. Sakthivel. Multi component fault diagnosis of rotational mechanical system based on decision tree and support vector machine, Expert Systems with Applications. 38 (2011) 3819–3826.

DOI: 10.1016/j.eswa.2010.09.042

[10] W. Bartelmus, R. Zimroz, Vibration condition monitoring of planetary gearbox under varying external load, Mechanical systems and signal processing. 23 (2009) 246–257.

DOI: 10.1016/j.ymssp.2008.03.016
