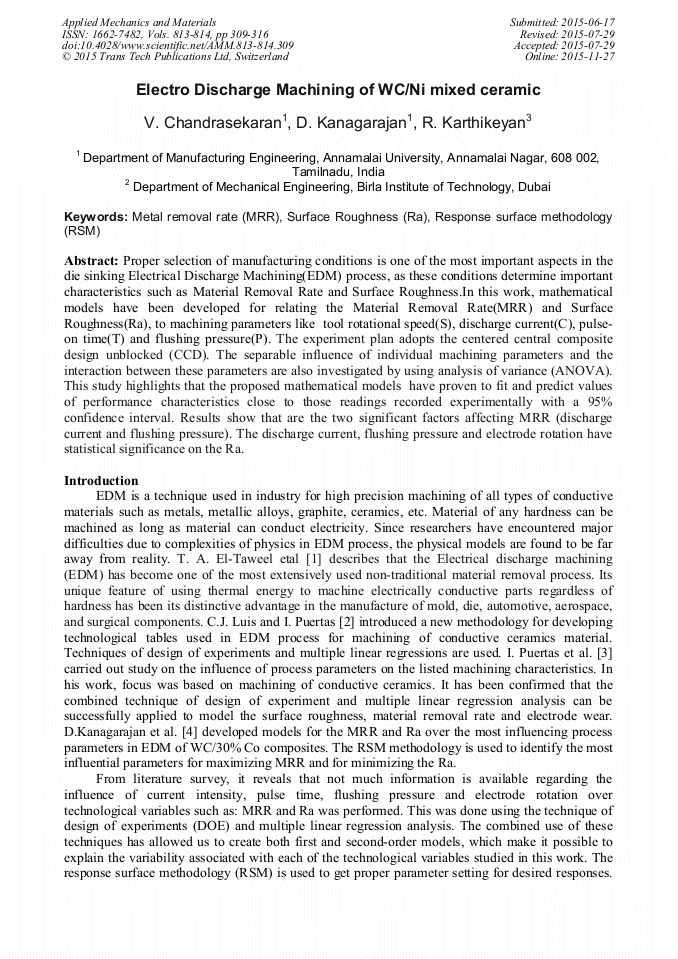

Electro Discharge Machining of WC/Ni Mixed Ceramic

Abstract:

Proper selection of manufacturing conditions is one of the most important aspects in the die sinking Electrical Discharge Machining (EDM) process, as these conditions determine important characteristics such as Material Removal Rate and Surface Roughness.In this work, mathematical models have been developed for relating the Material Removal Rate (MRR) and Surface Roughness (Ra), to machining parameters like tool rotational speed (S), discharge current (C), pulse-on time (T) and flushing pressure (P). The experiment plan adopts the centered central composite design unblocked (CCD). The separable influence of individual machining parameters and the interaction between these parameters are also investigated by using analysis of variance (ANOVA). This study highlights that the proposed mathematical models have proven to fit and predict values of performance characteristics close to those readings recorded experimentally with a 95% confidence interval. Results show that are the two significant factors affecting MRR (discharge current and flushing pressure). The discharge current, flushing pressure and electrode rotation have statistical significance on the Ra.

• Periodical: Applied Mechanics and Materials (Volumes 813-814)
• Pages: 309-316
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.813-814.309
• Online since: November 2015
• Authors: Vasudevan Chandrasekaran*, D. Kanagarajan, R. Karthikeyan
• Keywords: Metal Removal Rate (MRR), Response Surface Methodology (RSM), Surface Roughness (Ra)

References

[1] El-Taweel, T. A. Modelling and analysis of hybrid electrochemical turning magnetic abrasive finishing of 6061 Al/Al2O3 composite. International Journal of Advanced Manufacturing Technology DOI 10. 1007/s00170-007-1019-7l.

DOI: 10.1007/s00170-007-1019-7

[2] Luis, C.J.; Puertas, I.; Methodology for developing technological tables used in EDM process of conductive ceramics. Journal of Material Processing Technology 2007, (89), 301-309.

DOI: 10.1016/j.jmatprotec.2007.01.041

[3] Puertas, I.; Luis, C.J.; Alvarez, L.; Analysis of the influence of EDM parameters on surface quality, MRR and EW of WC-Co. Journal of Material Processing Technology 2004, 1(153-154), 1026-1032.

DOI: 10.1016/j.jmatprotec.2004.04.346

[4] Kanagarajan, D.; Karthikeyan, R.; Palanikumar, K.; Sivaraj, P.; Influence of process parameters on electric discharge machining of WC/30%Co composites. International Journal of Proceedings. I, Mech, E Part B: J. Engineering Manufacture 2008, 222, 10. 1243/09544054JEM925.

DOI: 10.1243/09544054jem925

[5] Kansal, H.K.; Sehijpal singh, Kumar, P.; Parametric optimization of powder mixed electrical discharge machining by response surface methodology, Journal of Material Processing Technology 2005, 169, 427-436.

DOI: 10.1016/j.jmatprotec.2005.03.028

[6] Ghoreishi, M.; Atkinson, J.; A comparative experimental study of machining characteristics in vibratory rotary, and vibro rotary electro discharge machining, Journal of Material Processing Technology 2002, 120, 374-384.

DOI: 10.1016/s0924-0136(01)01160-8

[7] Ko-Ta Chiang. Modeling and analysis of the effects of machining parameters on the performance characteristics in the EDM process of Al2O3+TiC mixed ceramic, International Journal of Advanced Manufacturing Technology 2008, 37, 523–533.

DOI: 10.1007/s00170-007-1002-3

[8] Pérez, Y.; Delgado, Baets, P. De.; Bonny, K.; Carretero Olalla, V.; Vleugels, J.; Lawers, B.; Staia, M.H.; Influence of wire-EDM on high temperature sliding wear behavior of WC10Co(Cr/V) cemented carbide. International Journal of Refractory Metals and Hard Materials 2013. (article in press 3).

DOI: 10.1016/j.ijrmhm.2013.03.013

[9] Arun, B.; Kumar, Vivek Babu, Amibilikumar, C.K.; Electro discharge machining of Aluminium alloy (LM6)-5wt%SiCp Composites using copper electrodes, International journal of emerging technology and advanced engineering 2013, 3, 105-108.

[10] Rajaneesh.; Marigoudar, N.; Kanakuppi sadasivappa,; Effect of machining parameters on MRR and surface roughness in machining of ZA43/SiCp composite by WEDM, International journal of applied sceience and enngineering 2013, 3, 317-330.
