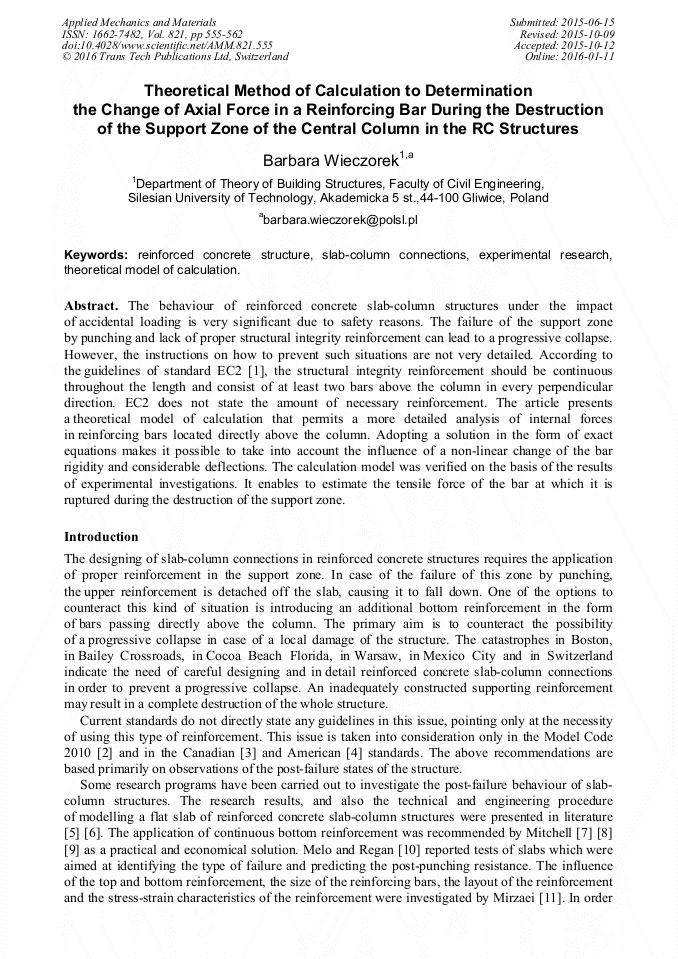

Theoretical Method of Calculation to Determination the Change of Axial Force in a Reinforcing Bar during the Destruction of the Support Zone of the Central Column in the RC Structures

Abstract:

The behaviour of reinforced concrete slab-column structures under the impact of accidental loading is very significant due to safety reasons. The failure of the support zone by punching and lack of proper structural integrity reinforcement can lead to a progressive collapse. However, the instructions on how to prevent such situations are not very detailed. According to the guidelines of standard EC2, the structural integrity reinforcement should be continuous throughout the length and consist of at least two bars above the column in every perpendicular direction. EC2 does not state the amount of necessary reinforcement. The article presents a theoretical model of calculation that permits a more detailed analysis of internal forces in reinforcing bars located directly above the column. Adopting a solution in the form of exact equations makes it possible to take into account the influence of a non-linear change of the bar rigidity and considerable deflections. The calculation model was verified on the basis of the results of experimental investigations. It enables to estimate the tensile force of the bar at which it is ruptured during the destruction of the support zone.

• Periodical: Applied Mechanics and Materials (Volume 821)
• Pages: 555-562
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.821.555
• Online since: January 2016
• Authors: Barbara Wieczorek*
• Keywords: Experimental Research, Reinforced Concrete Structure, Slab-Column Connections, Theoretical Model of Calculation

References

[1] PN-EN 1992-1-1: 2004/AC, Eurocode 2, Design of concrete structures - Part 1-1: General rules and rules for buildings, European Standard, (2010).

DOI: 10.3403/03178016

[2] CEB-FIB, Model Code for Concrete Structures 2010, FIB - International Federation for Structural Concrete (2013).

DOI: 10.35789/fib.bull.0002

[3] CSA Standard A23. 3, Design of concrete structures, Canadian Standard Association, (2004).

[4] ACI Committee 318, Building code requirements for structural concrete and commentary, American Concrete Institute, United State America, (2011).

[5] M. Wieczorek, Influence of amount and arrangement of reinforcement on the mechanism of destruction of the corner part of a slab-column structure, Procedia Engineering, 57 (2013) 1260–1268.

DOI: 10.1016/j.proeng.2013.04.159

[6] M. Wieczorek, Investigations concerning the corner part of the reinforced concrete structures in the emergency of removing the corner support, Procedia Engineering, 65 (2013) 135–142.

DOI: 10.1016/j.proeng.2013.09.023

[7] F. Habibi, E. Redi, W.D. Cook, D. Mitchell, Assessment of CSA A23. 3 structural integrity requirements for two-way slabs, Canadian Journal of Civil Engineering, 39 (2012).

DOI: 10.1139/l2012-013

[8] N.M. Hawkins, D. Mitchell, Progressive collapse of flat plate structures, Journal of the American Concrete Institute, 76(7) (1979).

[9] D. Mitchell, W.D. Cook, Preventing Progressive Collapse of Slabs Structures. Journal of Structural Engineering, 110(7) (1984).

[10] G.S.S.A. Melo, P.E. Regan, Post-punching resistance of connections between flat slabs and interior columns, Magazine of Concrete Research, 50(4) (1998).

DOI: 10.1680/macr.1998.50.4.319

[11] Y. Mirzaei, Post-punching behavior of reinforced concrete slabs, School of Architecture, Civil and Environmental Engineering, Ecole polytechnique fédérale de Lausanne (EPFL), Switzerland, (2010).

DOI: 10.3940/rina.innovsail.2010.14

[12] B. Wieczorek, Influence of the location of the column on the load capacity of a slab-column connection for the inner column after punching, Procedia Engineering, 57 (2013) 1251–1259.

DOI: 10.1016/j.proeng.2013.04.158

[13] B. Wieczorek, Experimental tests for the analysis of a load-bearing capacity of an internal slab-column connection after its punching at various positions of the column, Advanced Materials Research, 969 (2014) 169-175.

DOI: 10.4028/www.scientific.net/amr.969.169

[14] B. Wieczorek, Idea of a simplified model to determination of the load capacity of and inner slab-column connection after its punching, Procedia Engineering, 65 (2013) 126–134.

DOI: 10.1016/j.proeng.2013.09.022

[15] B. Wieczorek, Load-bearing capacity of reinforcing bars in the zone of the slab-column connection determined experimentally and in the result of numerical calculations, Procedia Engineering, 65 (2013) 149–157.

DOI: 10.1016/j.proeng.2013.09.025

[16] B. Wieczorek, Numerical analysis of reinforcing bars in the support zone of central slab-column connections subjected to eccentric tension, Applied Mechanics and Materials, 769 (2015) 245-251.

DOI: 10.4028/www.scientific.net/amm.769.245

[17] B. Wieczorek, Load capacity of an internal slab-column connection depending on the geometric parameters of the reinforcement, Advanced Materials Research, 969 (2014) 234-240.

DOI: 10.4028/www.scientific.net/amr.969.234
