Design Optimization of Rotor Lock Disc for Horizontal Axis Wind Turbine Generator

Abstract:

This study presents design optimization of rotor lock disc in the generator rotor which was analyzed by applying the respective lateral force taken from machine load calculation for a 2.5 MW permanent magnet direct-drive wind turbine generator. The machine load calculation result was derived from GH Bladed software output. The maximum tensile stress, internal stresses such as von Misses, maximum displacement and corresponding safety factor were calculated in terms of theoretical stress concentration factor due to discontinuity or change in cross-section in the region where the rotor lock is present. The rotor lock disc configuration was optimized to satisfy a safety factor of unity using exhaustive search method and Cosmos works software. Calculation results indicated that the safety factor of rotor lock disc with 40 mm thickness failed when design lateral force taken from the extreme load of rotor locking torque was used. However, the safety factor of the optimized rotor lock disc with 60 mm thickness has been improved when the inner radius and the total arc subtended angle are properly identified.

You might also be interested in these eBooks

Materials and Technologies in Modern Mechanical Engineering

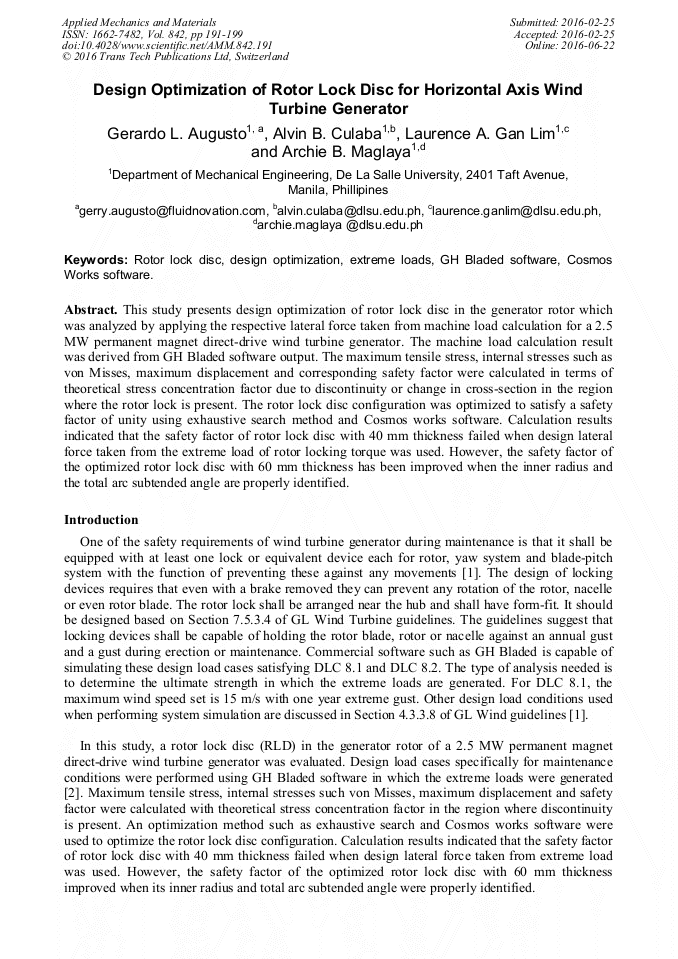

View Preview

Info:

Periodical:

Applied Mechanics and Materials (Volume 842)

Pages:

191-199

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.842.191

Citation:

Cite this paper

Online since:

June 2016

Authors:

Gerardo Lumagbas Augusto, Alvin B. Culaba, Laurence A. Gan Lim, Archie B. Maglaya

Keywords:

Cosmos Works Software, Design Optimization, Extreme Loads, Gh Bladed Software, Rotor Lock Disc

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Guideline for the Certification of Wind Turbines, Germanischer Lloyd (GL) Wind, (2003).

Google Scholar

[2] Garrad Hassan, GH Bladed, (2011).

Google Scholar

[3] Structural Research and Analysis Corporation, COSMOS Works, (2008).

Google Scholar

[4] R. L. Norton, Machine Design An Integrated Approach 4th ed., Pearson Education Inc., New Jersey, (2011).

Google Scholar

[5] W. C. Young, and R. G. Budynas, Stress concentration in Roark's Formulas for Stress and Strain 7th ed., McGraw-Hill International, Singapore, (2002).

Google Scholar

[6] P. Black, O. E. Adams, Machine Design 3rd ed., McGraw-Hill Book Co., Singapore, (1981).

Google Scholar

[7] V. M. Faires, Variable loads and stress concentrations, in Design of Machine Elements 4th ed. New York, U.S. A, (1969).

Google Scholar
