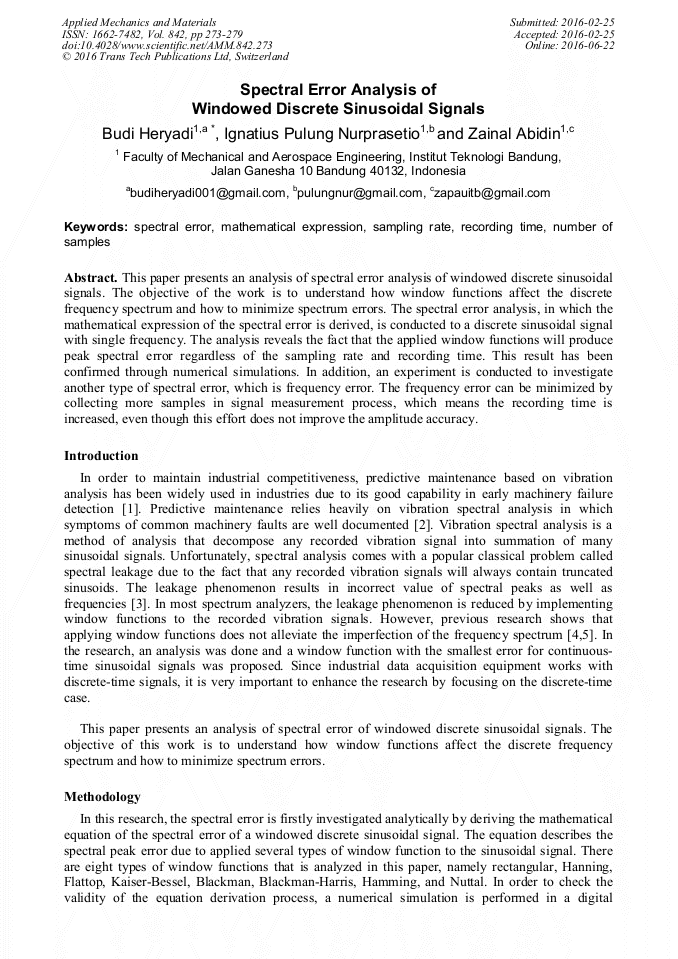

Spectral Error Analysis of Windowed Discrete Sinusoidal Signals

Abstract:

This paper presents an analysis of spectral error analysis of windowed discrete sinusoidal signals. The objective of the work is to understand how window functions affect the discrete frequency spectrum and how to minimize spectrum errors. The spectral error analysis, in which the mathematical expression of the spectral error is derived, is conducted to a discrete sinusoidal signal with single frequency. The analysis reveals the fact that the applied window functions will produce peak spectral error regardless of the sampling rate and recording time. This result has been confirmed through numerical simulations. In addition, an experiment is conducted to investigate another type of spectral error, which is frequency error. The frequency error can be minimized by collecting more samples in signal measurement process, which means the recording time is increased, even though this effort does not improve the amplitude accuracy.

• Periodical: Applied Mechanics and Materials (Volume 842)
• Pages: 273-279
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.842.273
• Online since: June 2016
• Authors: Budi Heryadi*, Ignatius Pulung Nurprasetio, Zainal Abidin
• Keywords: Mathematical Expression, Number of Samples, Recording Time, Sampling Rate, Spectral Error

References

[1] Alecsandri, V., Theoretical Study about the Influence of Predictive Maintenance on Process Equipment Lifetime, Journal of Engineering Studies and Research – Volume 18, (2012).

[2] Gyzhko, Y., Myslovych, M., and Sysak, R. The Use of Spectral Windows in Analysis of Vibration Signals, Research Report, Institute of Electrodynamics, Ukrainian National Academy of Science , (2013).

[3] McConnell, K. G., Vibration Testing, John Wiley & Sons, Inc., New York, (1995).

[4] Heryadi, B., Abidin, Z., Nurprasetio, I. P., Kesalahan Puncak Spektrum akibat Penggunaan Fungsi Window untuk Kasus Sinyal Sinus Kontinu, Prosiding, SNTTM XIII, Depok, (2014).

DOI: 10.9744/jtm.12.1.21-26

[5] Khuschandra, Analisis Perilaku Kesalahan Puncak Spektrum akibat Penggunaan Fungsi Jendela Kotak, Hanning, dan Flattop pada Sinyal Sinus, Magister Tesis, Mechanical Engineering Department, ITB, (2010).

DOI: 10.9744/jtm.12.1.21-26

[6] Sinha, N. K., Linear Systems, John Wiley & Sons, Inc., Canada, (1991).

[7] Harris, F. J., On the Use of Windows for Harmonic Analysis with the Discrete Fourier Transform, Proceedings of the IEEE. Vol. 66 (January 1978). pp.51-84.

[8] Nuttall, A. H., Some Windows with Very Good Sidelobe Behavior, IEEE Transactions on Acoustics, Speech, and Signal Processing. Vol. ASSP-29 (February 1981). pp.84-91.

DOI: 10.1109/tassp.1981.1163506

[9] Oppenheim, A.V., and R.W. Schafer, Discrete-Time Signal Processing, Prentice-Hall, 1989, pp.447-448.

[10] Oppenheim, A.V., and R.W. Schafer. Discrete-Time Signal Processing,. Upper Saddle River, NJ: Prentice-Hall, 1999, pp.468-471.
