Stress-Distribution around Pin-Loaded Hole for Orthotropic Laminates

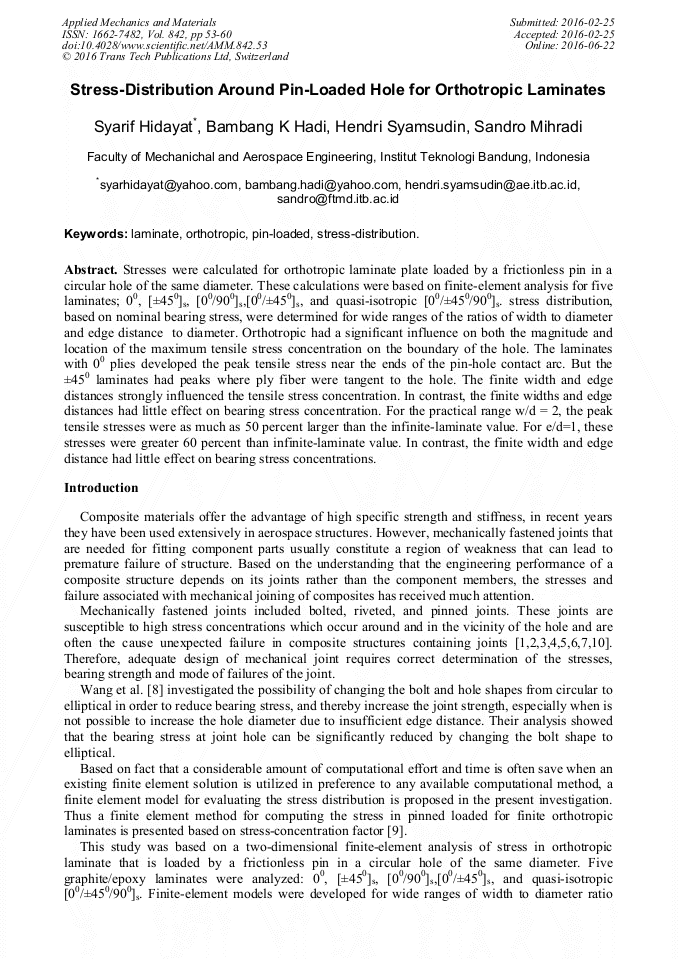

Abstract:

Stresses were calculated for orthotropic laminate plate loaded by a frictionless pin in a circular hole of the same diameter. These calculations were based on finite-element analysis for five laminates; 0⁰, [±45⁰]_s, [0⁰/90⁰]_s,[0⁰/±45⁰]_s, and quasi-isotropic [0⁰/±45⁰/90⁰]_s. stress distribution, based on nominal bearing stress, were determined for wide ranges of the ratios of width to diameter and edge distance to diameter. Orthotropic had a significant influence on both the magnitude and location of the maximum tensile stress concentration on the boundary of the hole. The laminates with 0⁰ plies developed the peak tensile stress near the ends of the pin-hole contact arc. But the ±45⁰ laminates had peaks where ply fiber were tangent to the hole. The finite width and edge distances strongly influenced the tensile stress concentration. In contrast, the finite widths and edge distances had little effect on bearing stress concentration. For the practical range w/d = 2, the peak tensile stresses were as much as 50 percent larger than the infinite-laminate value. For e/d=1, these stresses were greater 60 percent than infinite-laminate value. In contrast, the finite width and edge distance had little effect on bearing stress concentrations.

• Periodical: Applied Mechanics and Materials (Volume 842)
• Pages: 53-60
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.842.53
• Online since: June 2016
• Authors: Syarif Hidayat*, Bambang Kismono Hadi, Hendri Syamsudin, Sandro Mihradi
• Keywords: Laminate, Orthotropic, Pin-Loaded, Stress-Distribution

References

[1] T. De Jong, Stresses around pin-loaded holes in composite materials, Mechanics of composite materials recent advances. New York: Pergamon Press, 1982, pp.339-353.

DOI: 10.1016/b978-0-08-029384-4.50028-6

[2] H. A. Whitworth, M. Othieno, and O. Barton, Failure analysis of Composite pin loaded Joints, composite Structures, 59, 2003, pp.261-266.

DOI: 10.1016/s0263-8223(02)00056-9

[3] J.M. Whitney, and R.J. Nuismer, Stress Fracture Criteria for Laminated Composites Containing stress Concentrations, " Journal of Composite Materials, 10, 1974, pp.253-265.

DOI: 10.1177/002199837400800303

[4] F.K. Chang, and R.A. Scott, Strength of mechanically Fastened Composite joints, Journal of Composite Materials, 16, 1982, pp.470-494.

DOI: 10.1177/002199838201600603

[5] J. Choi and Y. Chun, Failure Load Prediction of Mechanically Fastened Composite Joints, Journal of Composite Materials, 37(24), 2003, pp.2163-2177.

DOI: 10.1177/002199803038108

[6] K. Zhang, and C.E.S. Ueng, Stress Around a Pin Loaded Hole in Orthotropic Plates, Journal of Composite Materials, 18, 1984, pp.432-446.

DOI: 10.1177/002199838401800503

[7] H.J. Konish and J.M. Whitney, Approximate Stresses in an Orthotropic Plate Containing a Circular Hole, Journal of Composite Materials, 9, 1975, pp.157-166.

DOI: 10.1177/002199837500900206

[8] J.T. Wang, C.G. Lotts, and D.D. Davis, Analysis of bolt-loaded elliptical holes in laminated composite joints. Journal of reinforced plastics and composites, 12, 1993, pp.128-138.

DOI: 10.1177/073168449301200201

[9] John H Crews jr., C. S. Hong, and I. S. Raju, Stress-Concentration Factor for Finite Orthotropic Laminates with a Pin-loaded Hole, Nasa Technical paper, May (1981).

[10] O. Aluko, An Analytical Method for Failure Prediction of Composite Pinned Joints, Proceding of the World Congress on Engineering 2011 vol III, WCE 2011, July 6-8, 2011, London , UK.
