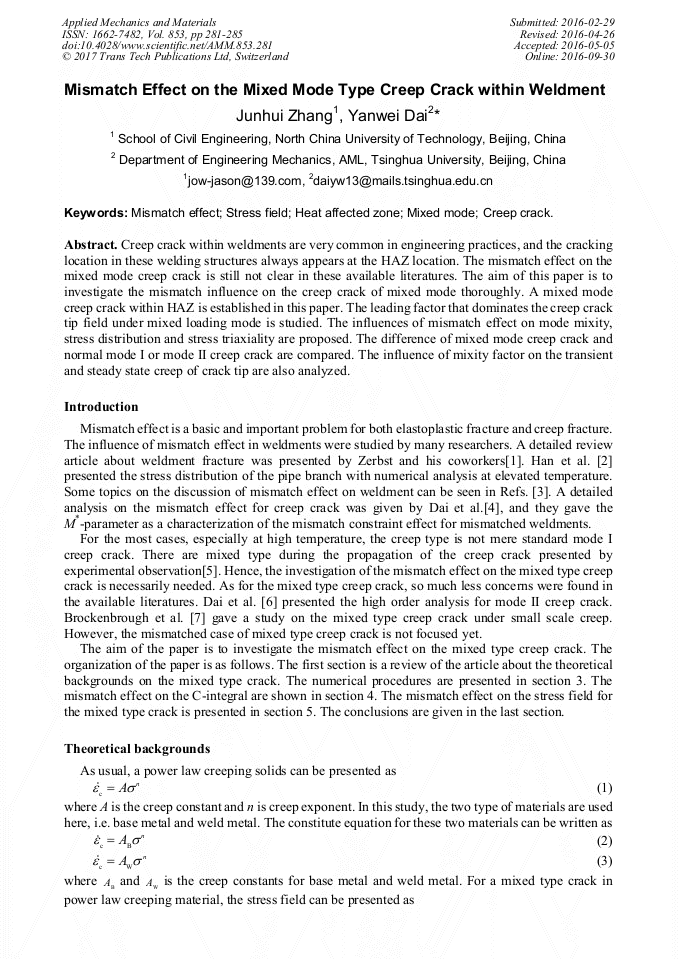

Mismatch Effect on the Mixed Mode Type Creep Crack within Weldment

Abstract:

Creep crack within weldments are very common in engineering practices, and the cracking location in these welding structures always appears at the HAZ location. The mismatch effect on the mixed mode creep crack is still not clear in these available literatures. The aim of this paper is to investigate the mismatch influence on the creep crack of mixed mode thoroughly. A mixed mode creep crack within HAZ is established in this paper. The leading factor that dominates the creep crack tip field under mixed loading mode is studied. The influences of mismatch effect on mode mixity, stress distribution and stress triaxiality are proposed. The difference of mixed mode creep crack and normal mode I or mode II creep crack are compared. The influence of mixity factor on the transient and steady state creep of crack tip are also analyzed.

• Periodical: Applied Mechanics and Materials (Volume 853)
• Pages: 281-285
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.853.281
• Online since: September 2016
• Authors: Jun Hui Zhang, Yan Wei Dai*
• Keywords: Creep Crack, Heat Affected Zone, Mismatch Effect, Mixed Mode, Stress Field

References

[1] Zerbst U, Ainsworth RA, Beier HT, Pisarski H, Zhang ZL, Nikbin K, et al. Review on fracture and crack propagation in weldments – A fracture mechanics perspective. Engineering Fracture Mechanics. 2014; 132: 200-76.

DOI: 10.1016/j.engfracmech.2014.05.012

[2] Han JJ, Kim YJ, Jerng D, Nikbin K, Dean D. Quantification of creep stresses within HAZ in welded branch junctions. Fatigue & Fracture of Engineering Materials & Structures. 2015; 38: 113-24.

DOI: 10.1111/ffe.12223

[3] Dai Y, Liu Y, Chen H, Liu D. The interacting effect for collinear cracks near mismatching bimaterial interface under elastic creep. Journal of Pressure Vessel Technology. (2015).

DOI: 10.1115/1.4031725

[4] Dai Y, Liu D, Liu Y. Mismatch Constraint Effect of Creep Crack With Modified Boundary Layer Model. Journal of Applied Mechanics. 2016; 83: 031008-16.

DOI: 10.1115/1.4032025

[5] Tabuchi M, Watanabe T, Kubo K, Matsui M, Kinugawa J, Abe F. Creep crack growth behavior in the HAZ of weldments of W containing high Cr steel. International Journal of Pressure Vessels and Piping. 2001; 78: 779-84.

DOI: 10.1016/s0308-0161(01)00090-4

[6] Dai Y, Liu Y, Chao YJ. High Order Analysis of Stress Field for Mode II Creep Crack. International Journal of Solids and Structures. 2016: to be submitted.

[7] Brockenbrough J, Shih C, Suresh S. Transient crack-tip fields for mixed-mode power law creep. International Journal of Fracture. 1991; 49: 177-202.

DOI: 10.1007/bf00035041

[8] Bassani J, McClintock F. Creep relaxation of stress around a crack tip. International Journal of Solids and Structures. 1981; 17: 479-92.

DOI: 10.1016/0020-7683(81)90055-x
