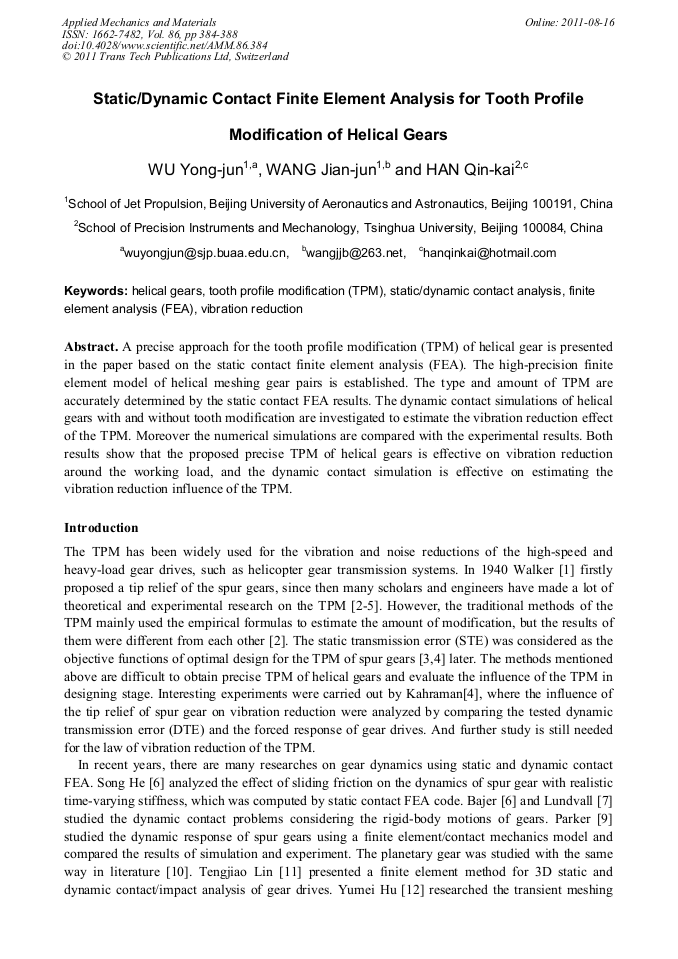

Static/Dynamic Contact Finite Element Analysis for Tooth Profile Modification of Helical Gears

Abstract:

A precise approach for the tooth profile modification (TPM) of helical gear is presented in the paper based on the static contact finite element analysis (FEA). The high-precision finite element model of helical meshing gear pairs is established. The type and amount of TPM are accurately determined by the static contact FEA results. The dynamic contact simulations of helical gears with and without tooth modification are investigated to estimate the vibration reduction effect of the TPM. Moreover the numerical simulations are compared with the experimental results. Both results show that the proposed precise TPM of helical gears is effective on vibration reduction around the working load, and the dynamic contact simulation is effective on estimating the vibration reduction influence of the TPM.

• Periodical: Applied Mechanics and Materials (Volume 86)
• Pages: 384-388
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.86.384
• Online since: August 2011
• Authors: Yong Jun Wu, Jian Jun Wang, Qin Kai Han
• Keywords: Finite Element Analysis (FEA), Helical Gear, Static/Dynamic Contact Analysis, Tooth Profile Modification (TPM), Vibration Reduction

References

[1] H. Walker: Engineer, Vol. 170 (1940), p.102.

[2] Runfang Li: Modification method and stiffness analysis of gear drives (Chongqing University Press, Chongqing 1998).

[3] R.G. Munro, N. Yildirim, D.M. Hall: Proceedings of Institution of Mechanical Engineers, Vol. C 404/013 (1990), p.35.

[4] Giorgio Bonori, Marco Barbieri, Francesco Pellicano: Journal of sound and vibration, Vol. 313 (2008), p.603.

[5] A. Kahraman, G.W. Blankenship: Journal of Mechanical Design, Vol. 121(1999), p.313.

[6] Song He, Rajendra Gunda, Rajendra Singh: Jounal of sound and vibration, Vol. 301 (2007), p.927.

[7] A. Bajer, L. Demkowicz: Computer methods in applied mechanics and engineering, Vol. 191(2002), p.4159.

[8] Lundvall, N. Stromberg, A. Klarbing: Journal of sound and vibration, Vol. 278(2004), p.479.

[9] R.G. Parker, S.M. Vijayakar, T. Imajo: Journal of sound and vibration, , Vol. 237 (2000), p.435.

[10] V.K. Ambarisha, R.G. Parker: Journal of sound and vibration, Vol. 302(2007), p.577.

[11] Tengjiao Lin, H. Ou, Runfang Li: Computer methods in applied mechanics and engineering, Vol. 196(2007), p.1716.

[12] Yumei Hu, Yimin Shao, Zaigang Chen, Ming J Zuo: Mechanical system and signal, 2010, in press.

[13] Huan Sun: Zuomo Chen. Mechanical Theory(6th) (Higher Education Press, Beijing 2003).
