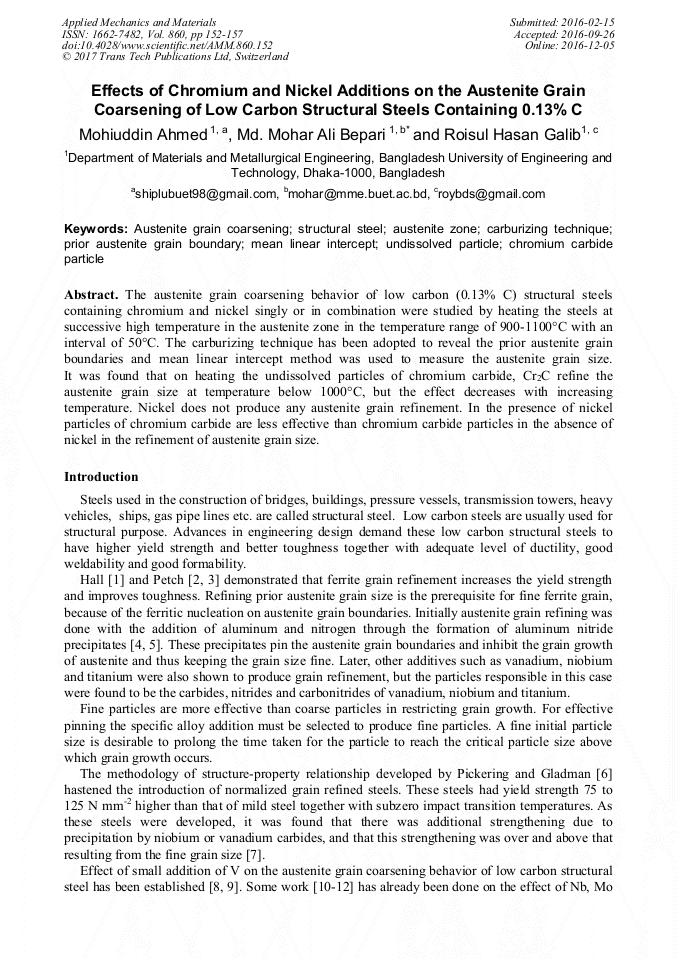

Effects of Chromium and Nickel Additions on the Austenite Grain Coarsening of Low Carbon Structural Steels Containing 0.13% C

Abstract:

The austenite grain coarsening behavior of low carbon (0.13% C) structural steels containing chromium and nickel singly or in combination were studied by heating the steels at successive high temperature in the austenite zone in the temperature range of 900-1100°C with an interval of 50°C. The carburizing technique has been adopted to reveal the prior austenite grain boundaries and mean linear intercept method was used to measure the austenite grain size.It was found that on heating the undissolved particles of chromium carbide, Cr₂C refine the austenite grain size at temperature below 1000°C, but the effect decreases with increasing temperature. Nickel does not produce any austenite grain refinement. In the presence of nickel particles of chromium carbide are less effective than chromium carbide particles in the absence of nickel in the refinement of austenite grain size.

• Periodical: Applied Mechanics and Materials (Volume 860)
• Pages: 152-157
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.860.152
• Online since: December 2016
• Authors: Mohiuddin Ahmed, Md Mohar Ali Bepari*, Roisul Hasan Galib
• Keywords: Austenite Grain Coarsening, Austenite Zone, Carburizing Technique, Chromium Carbide Particle, Mean Linear Intercept, Prior Austenite Grain Boundary, Structural Steel, Undissolved Particle

References

[1] E.O. Hall, Proc. Phys. Soc., 1951, Series B, 64, p.747.

[2] N.J. Petch, J.I.S.I., 1953, 174, p.25.

[3] N.J. Petch, Swampscott conf., 1959, M.I.T. Press, p.54.

[4] H.J. Wiester, H.A. Vogles, and H. Ulmer, Stahlund Eisen, 1959, 79, No. 16, 1120.

[5] S. Preston, G. Hale, and J. Nutting, Materials Science and Technology, March, 1985, 1, p.192.

[6] F.B. Pickering, and T. Gladman, Metallurgical Development in Carbon Steels, I.S.I. Special Report, 1963, 81, p.10.

[7] W.B. Morrison, J.H. Woodhead, J. Iron steel Inst., 1963, 201, pp.43-46.

[8] M.M.A. Bepari, 1981, Ph. D. Thesis, University of Sheffield, U. K.

[9] M.M.A. Bepari, Materials Transaction A, Jan, 1989, (20A), p.13.

[10] M. Z. Hoque, M. Sc. Engineering Thesis, 1989, Dept. of Materials and Metallurgical Engineering, BUET, Dhaka, Bangladesh.

[11] M.A. Rahman, M. Sc. Engineering Thesis, 1998, Dept. of Materials and Metallurgical Engineering, BUET, Dhaka, Bangladesh.

[12] M.A. Rahman, and M.M.A. Bepari, Proceedings of the International Conference on Advances in Materials And Processing Technology (AMPT 2009), 26-29 October, 2009, Kuala Lumpur, Malaysia.
