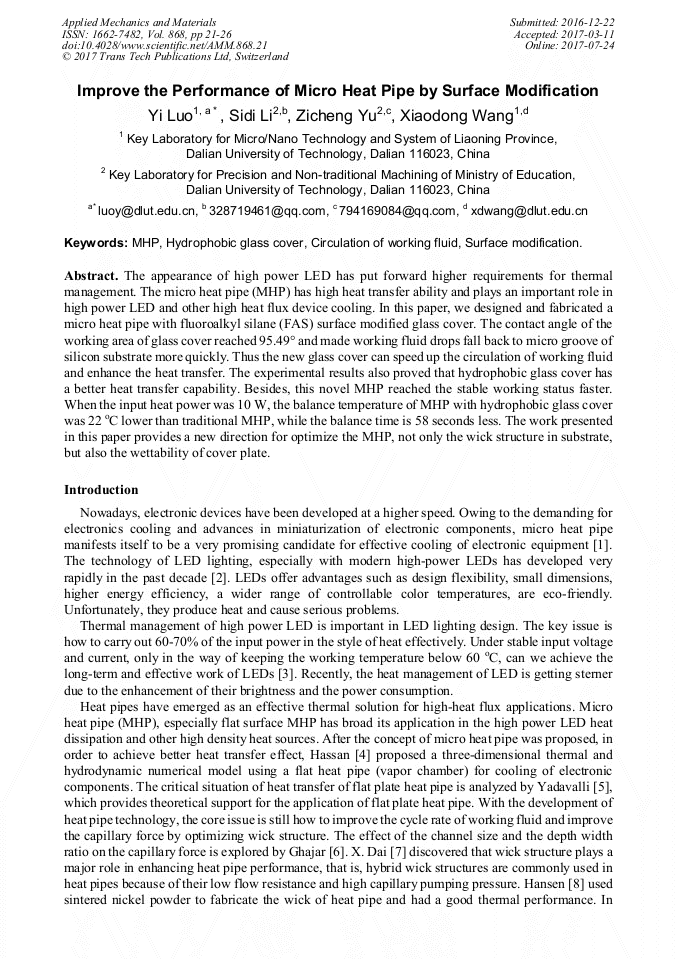

Improve the Performance of Micro Heat Pipe by Surface Modification

Abstract:

The appearance of high power LED has put forward higher requirements for thermal management. The micro heat pipe (MHP) has high heat transfer ability and plays an important role in high power LED and other high heat flux device cooling. In this paper, we designed and fabricated a micro heat pipe with fluoroalkyl silane (FAS) surface modified glass cover. The contact angle of the working area of glass cover reached 95.49° and made working fluid drops fall back to micro groove of silicon substrate more quickly. Thus the new glass cover can speed up the circulation of working fluid and enhance the heat transfer. The experimental results also proved that hydrophobic glass cover has a better heat transfer capability. Besides, this novel MHP reached the stable working status faster. When the input heat power was 10 W, the balance temperature of MHP with hydrophobic glass cover was 22 oC lower than traditional MHP, while the balance time is 58 seconds less. The work presented in this paper provides a new direction for optimize the MHP, not only the wick structure in substrate, but also the wettability of cover plate.

• Periodical: Applied Mechanics and Materials (Volume 868)
• Pages: 21-26
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.868.21
• Online since: July 2017
• Authors: Yi Luo*, Si Di Li, Zi Cheng Yu, Xiao Dong Wang
• Keywords: Circulation of Working Fluid, Hydrophobic Glass Cover, Micro Heat Pipe (MHP), Surface Modification

References

[1] Hung, Yew Mun, et al. Thermal Analysis of a Water-Filled Micro Heat Pipe with Phase-Change Interfacial Resistance. J. 134(11), (2012).

DOI: 10.1115/1.4006898

[2] Mehmet A, Stanton W. Chip Scale Thermal Management of High Brightness Packages. Proc. SPIE 5530(2004) 214-223.

[3] Shen S. C, Huang, H.J. Shaw, H.J. Design and Estimation of a MCPCB-Flat Plate Heat Pipe for LED Array Module. IEEE ICMA, August 4-7, 2013, 158-163.

DOI: 10.1109/icma.2013.6617910

[4] Hassan, Hamdy, Harmand and Souad. A Three-Dimensional Study of Electronic Component Cooling Using a Flat Heat Pipe. Heat Transfer Engineering. 34(7), 2013, 596-607.

DOI: 10.1080/01457632.2013.730426

[5] Yadavalli, Yashwanth, Weibel, etal. Flat Heat Pipe Performance Thresholds at Ultra-Thin Form Factors. Thermomechanical Phenomena in Electronic Systems-Proceedings of the Intersociety Conference, September 4, 2014, 527-534.

DOI: 10.1109/itherm.2014.6892326

[6] Ghajar, M. Darabi, J. Evaporative Heat Transfer Analysis of a Micro Loop Heat Pipe with Rectangular Grooves. J. Thermal Sciences, 79(2014) 51-59.

DOI: 10.1016/j.ijthermalsci.2013.12.014

[7] X. Dai, L . Tran, F. Yang, et al. Characterization of Hybrid Wicked Copper Heat Pipe. ASME Conference Proceedings. (38921) T30005, Hawaii, USA, (2011).

[8] Hansen. Geir, Naess, Erling, et al. Sintered Nickel Powder Wicks for Flat Vertical Heat Pipes. Energies. 8(4), 2337-2357.

DOI: 10.3390/en8042337

[9] Xian, Haizhen. Liu, Dengying. et al. Heat transfer Characteristics of Oscillating Heat Pipe with Ethanol as Working Fluid. Proceedings of the ASME Micro/Nanoscale Heat and Mass Transfer International Conference 2009, 3(2010), 375-380.

DOI: 10.1115/mnhmt2009-18189

[10] Kim, Hyun Jin. Lee, Seung Hyun. et al. The Effect of Nanoparticle Shape on the Thermal Resistance of a Flat-plate Heat Pipe using Acetone-based Al2O3 Nanofluids. Heat and Mass Transfer, 92(2016), January 1, 572-577.

DOI: 10.1016/j.ijheatmasstransfer.2015.09.013

[11] Pingyang Wang, Yanjun Chen, Zhenhua Liu. Performance Improvement of Wire-bonded Mesh Screen Flat Heat pipe Using Water-based Nanofluid. Heat and Mass Transfer. 2016: 1-11. DOI: 10. 1007/s00231-016-1758-9.

DOI: 10.1007/s00231-016-1758-9

[12] Yi Luo, Beike Yu, Liangliang Zou, Chuanpeng Zhou, Xiaodong Wang. Micro Heat Pipe Integrated with LED Silicon Substrate. ICEPT 2015, September 1, 85-88.

[13] Xiaodong Wang, Liangliang Zou, Gang Liu, Yi Luo. Vacuum Fluid Charging and Packaging Technique for Micro Heat Pipes. 14th International Conference on Electronic Packaging Technology, 2013, 46-49.

DOI: 10.1109/icept.2013.6756418

[14] Congming Li, Yi Luo, Chuanpeng Zhou, Qing Shan, Xiaodong Wang. Charging Method of Micro Heat Pipe for High-power Light-emitting Diode. Micro and Nano Letters, 10(10), October 1, 2015, 518-522.

DOI: 10.1049/mnl.2015.0097
