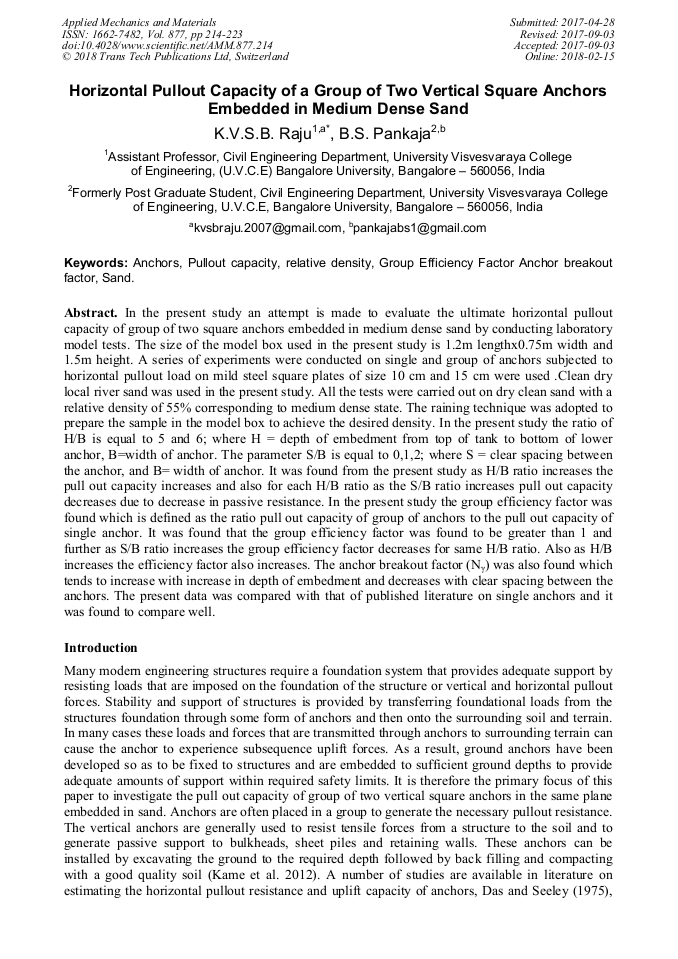

Horizontal Pullout Capacity of a Group of Two Vertical Square Anchors Embedded in Medium Dense Sand

Abstract:

In the present study an attempt is made to evaluate the ultimate horizontal pullout capacity of group of two square anchors embedded in medium dense sand by conducting laboratory model tests. The size of the model box used in the present study is 1.2m lengthx0.75m width and 1.5m height. A series of experiments were conducted on single and group of anchors subjected to horizontal pullout load on mild steel square plates of size 10 cm and 15 cm were used .Clean dry local river sand was used in the present study. All the tests were carried out on dry clean sand with a relative density of 55% corresponding to medium dense state. The raining technique was adopted to prepare the sample in the model box to achieve the desired density. In the present study the ratio of H/B is equal to 5 and 6; where H = depth of embedment from top of tank to bottom of lower anchor, B=width of anchor. The parameter S/B is equal to 0,1,2; where S = clear spacing between the anchor, and B= width of anchor. It was found from the present study as H/B ratio increases the pull out capacity increases and also for each H/B ratio as the S/B ratio increases pull out capacity decreases due to decrease in passive resistance. In the present study the group efficiency factor was found which is defined as the ratio pull out capacity of group of anchors to the pull out capacity of single anchor. It was found that the group efficiency factor was found to be greater than 1 and further as S/B ratio increases the group efficiency factor decreases for same H/B ratio. Also as H/B increases the efficiency factor also increases. The anchor breakout factor (N_γ) was also found which tends to increase with increase in depth of embedment and decreases with clear spacing between the anchors. The present data was compared with that of published literature on single anchors and it was found to compare well.

• Periodical: Applied Mechanics and Materials (Volume 877)
• Pages: 214-223
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.877.214
• Online since: February 2018
• Authors: K V S B RAJU*, B.S. Pankaja
• Keywords: Anchors, Group Efficiency Factor Anchor Breakout Factor, Pullout Capacity, Relative Density, Sand

References

[1] Das, B. M., Seeley G R (1975) Load- displacement relationships for vertical anchor plates., J. of Geotech. Eng., ASCE, 101(7): 711-715.

DOI: 10.1061/ajgeb6.0000180

[2] Dickin, E. A. (1988) Uplift behaviour of horizontal anchor plates in sand., J. of Geotech. Eng., Vol. 114, No. 11, 1300-1317.

DOI: 10.1061/(asce)0733-9410(1988)114:11(1300)

[3] Jyant Kumar & Manas Kumar Bhoi (2009) Vertical uplift capacity of equally spaced multiple strip anchors in sand, Geotechnical and Geological Engineering , Vol. 27: 461-472.

DOI: 10.1007/s10706-008-9247-7

[4] Kame G. S et. al., (2012) "Pullout capacity of vertical plate anchor embedded in cohesion- less soil. Earth Science Research, Vol. 1, No. 1, 27- 56.

DOI: 10.5539/esr.v1n1p27

[5] Laman M, Bildik S (2010) Experimental Investigations on Uplift Behaviour of Plate Anchors in Cohesionless Soil, The Ninth International Congress on Advances in Civil Engineering (ACE2010), Karadeniz Technical University, Trabzon, Turkey, 27-30.

[6] Merifield RS, Sloan SW (2006) The ultimate pullout capacity of anchors in frictional soil. Can Geotech J 43: 852–868.

DOI: 10.1139/t06-052

[7] Murray, E. J., and Geddes, J. D. (1987) Uplift of anchor plates in sand., J. Geotech. Eng., ASCE, 113(3), 202-215.

DOI: 10.1061/(asce)0733-9410(1987)113:3(202)

[8] Murray, E. J., and Geddes, J. D. (1989) Resistance of passive inclined anchors in cohesionless medium., Geotechnique, 39(3), 417-431.

DOI: 10.1680/geot.1989.39.3.417

[9] Niroumand, H. (2010) Numerical and Experimental Analysis of Pullout Test on Square Horizontal Anchor Plates in Sand, GEOTROPIKA 2010, 1-3 Dec, Sabah, Malaysia.

[10] Niroumand, H., and Kassim, Kh.A. (2010) Analytical and Numerical Studies of Horizontal Anchor Plates in Cohesionless Soils, Electronic Journal of Geotechnical Engineering (EJGE), Vol. 15, Page 281-292.

[11] Niroumand, H., and Kassim, Kh.A. (2010) Compare of Anchor Systems in Geotechnical Engineering, MICCE 2010, Makassar, Indonesia, 9-10 March.

[12] Ovesen, N. K. (1981) Centrifuge tests on the uplift capacity of anchors., Proceedings, 10th International Conference on Soil Mechanics and Foundation Engineering, 10(1): 717-722.

[13] Rowe R. K., and Davis E. H. (1978) The behavior of anchor plates in sand., Geotechnique, 32(1), 25-41.

[14] Sarac, D. Z. (1989) Uplift capacity of shallow buried anchor slabs., Proceedings, 12th International Conference on Soil Mechanics and Foundation Engineering, 12(2): 1213-1218.
