3-D Morphological Analysis of Carbon-Nickel Nanocomposite Thin Films

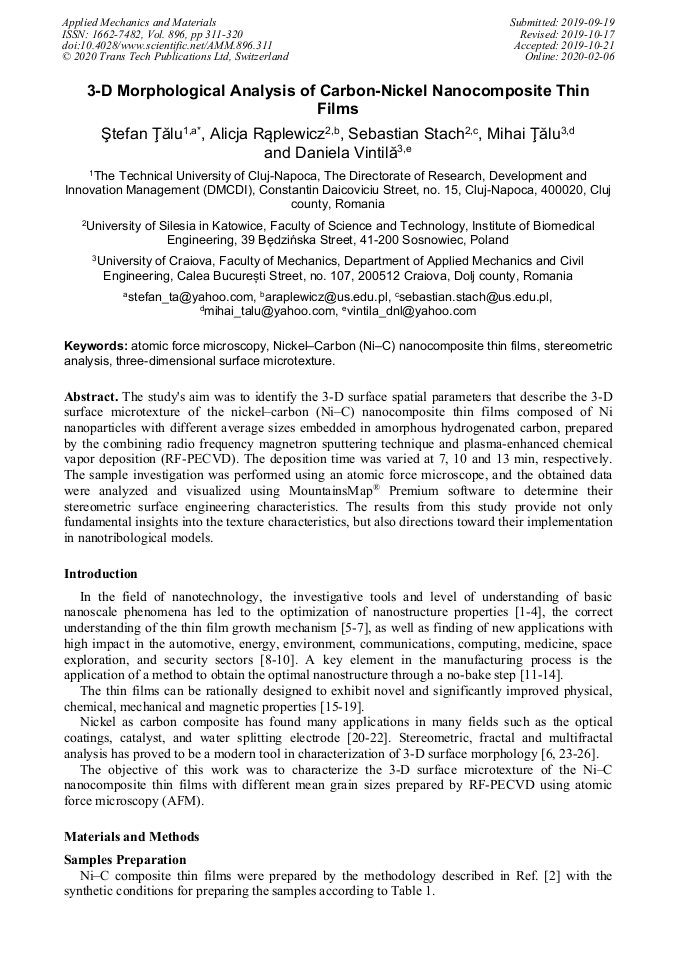

Article Preview

Abstract:

The study's aim was to identify the 3-D surface spatial parameters that describe the 3-D surface microtexture of the nickel–carbon (Ni–C) nanocomposite thin films composed of Ni nanoparticles with different average sizes embedded in amorphous hydrogenated carbon, prepared by the combining radio frequency magnetron sputtering technique and plasma-enhanced chemical vapor deposition (RF-PECVD). The deposition time was varied at 7, 10 and 13 min, respectively. The sample investigation was performed using an atomic force microscope, and the obtained data were analyzed and visualized using MountainsMap^® Premium software to determine their stereometric surface engineering characteristics. The results from this study provide not only fundamental insights into the texture characteristics, but also directions toward their implementation in nanotribological models.

You might also be interested in these eBooks

Achievements and Solutions in Mechanical Engineering II

Info:

Periodical:

Applied Mechanics and Materials (Volume 896)

Pages:

311-320

DOI:

https://doi.org/10.4028/www.scientific.net/AMM.896.311

Citation:

Cite this paper

Online since:

February 2020

Authors:

Ştefan Ţălu*, Alicja Rąplewicz, Sebastian Stach, Mihai Ţălu, Daniela Vintilă

Keywords:

Atomic Force Microscopy, Nickel-Carbon (Ni-C) Nanocomposite Thin Films, Stereometric Analysis, Three-Dimensional Surface Microtexture

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2020 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] Z-C. Hong, H-C. Hsueh, S-T. Shiue, Characteristics of carbon-nickel nanocomposite thin films prepared by reactive sputtering under different radio frequency powers and their applications for electronic devices, Thin Solid Films, 653 (2018) 350-358.

DOI: 10.1016/j.tsf.2018.03.066

[2] Ş. Ţălu, C. Luna, A. Ahmadpourian, A. Achour, A. Arman, S. Naderi, N. Ghobadi, S. Stach, B. Safibonab, Micromorphology and fractal analysis of nickel–carbon composite thin films, J. Mater. Sci. Mater. Electron, 27(11) (2016) 11425–11431. DOI: 10.1007/ s10854-016-5268-9.

DOI: 10.1007/s10854-016-5268-9

[3] A. Adamiec, S. Stach, Ş. Ţălu, Quantitative investigations about the surface texture characteristics of the nickel-carbon composite thin films using stereometric analysis. Advances in Intelligent Systems Research, 153 (2017) 98-101.

DOI: 10.2991/amms-17.2017.22

[4] Ş. Ţălu, M. Bramowicz, S. Kulesza, V. Dalouji, S. Solaymani, S. Valedbagi, Fractal features of carbon–nickel composite thin films, Microsc. Res. Tech., 79(12) (2016) 1208-1213.

DOI: 10.1002/jemt.22779

[5] S. Ramazanov, Ş. Ţălu, D. Sobola, S. Stach, G. Ramazanov, Epitaxy of silicon carbide on silicon: Micromorphological analysis of growth surface evolution, Superlattices Microstruct., 86 (2015) 395-402.

DOI: 10.1515/msp-2017-0049

[6] S. Stach, W. Sapota, Ş. Ţălu, A. Ahmadpourian, C. Luna, N. Ghobadi, A. Arman, M. Ganji, 3D Surface stereometry studies of sputtered TiN thin films obtained at different substrate temperatures. J. Mater. Sci. Mater. Electron., 28(2) (2017) 2113-2122.

DOI: 10.1007/s10854-016-5774-9

[7] A. Arman, Ş. Ţălu, C. Luna, A. Ahmadpourian, M. Naseri, M. Molamohammadi, Micromorphology characterization of copper thin films by AFM and fractal analysis, J. Mater. Sci. Mater. Electron., 26 (2015) 9630–9639.

DOI: 10.1007/s10854-015-3628-5

[8] N. Naseri, S. Solaymani, A. Ghaderi, M. Bramowicz, S. Kulesza, Ş. Ţălu, M. Pourreza, S. Ghasemi, Microstructure, morphology and electrochemical properties of Co nanoflake water oxidation electrocatalyst at micro- and nanoscale. RSC Advances, 7(21) (2017) 12923-12930.

DOI: 10.1039/c6ra28795f

[9] Ş. Ţălu, A.J. Ghazai, S. Stach, H. Abu Hassan, Z. Hassan, M. Ţălu, Characterization of surface roughness of Pt Schottky contacts on quaternary n-Al0.08In0.08Ga0.84N thin film assessed by atomic force microscopy and fractal analysis, J. Mater. Sci. Mater. Electron., 25(1) (2014) 466-477.

DOI: 10.1007/s10854-013-1611-6

[10] S. Stach, D. Dallaeva, Ş. Ţălu, P. Kaspar, P. Tománek, S. Giovanzana, L. Grmela, Morphological features in aluminum nitride epilayers prepared by magnetron sputtering, Mater. Sci. Poland, 33(1) (2015) 175-184.

DOI: 10.1515/msp-2015-0036

[11] Ş. Ţălu, Micro and nanoscale characterization of three dimensional surfaces. Basics and applications, Napoca Star Publishing House, Cluj-Napoca, Romania, (2015).

[12] T. Ghodselahi, A. Arman, Magnetoresistance of Cu–Ni nanoparticles in hydrogenated amorphous carbon thin films, J. Mater. Sci. Mater. Electron, 26(6) (2015) 4193–4197.

DOI: 10.1007/s10854-015-2965-8

[13] Ş. Ţălu, S. Stach, S. Valedbagi, S. M. Elahi, R. Bavadi, Surface morphology of titanium nitride thin films synthesised by DC reactive magnetron sputtering, Mater. Sci. Poland, 33(1) (2015) 137-143.

DOI: 10.1515/msp-2015-0010

[14] D. Elenkova, J. Zaharieva, M. Getsova, I. Manolov, M. Milanova, S. Stach, Ş. Ţălu, Morphology and Optical Properties of SiO2-Based Composite Thin Films with Immobilized Terbium(III) Complex with a Biscoumarin Derivative, Int. J. Polym. Anal. Charact., 20(1) (2015) 42-56.

DOI: 10.1080/1023666x.2014.955400

[15] Ş. Ţălu, S. Stach, J. Zaharieva, M. Milanova, D. Todorovsky, S. Giovanzana, Surface roughness characterization of poly(methylmethacrylate) films with immobi-lized Eu(III) β-Diketonates by fractal analysis. Int J Polym Anal Ch., 19 (2014) 1-18.

DOI: 10.1080/1023666x.2014.904149

[16] Ş. Ţălu, S. Stach, D. Raoufi, F. Hosseinpanahi, Film thickness efect on fractality of tin-doped In2O3 thin films, Electronic Materials Letters, 11(5) (2015) 749-757.

DOI: 10.1007/s13391-015-4280-1

[17] A. Ahmadpourian, C. Luna, A. Boochani, A. Arman, A. Achour, S. Rezaee, S. Naderi, The effects of deposition time on surface morphology, structural, electrical and optical properties of sputtered Ag-Cu thin films, The European Physical Journal Plus, 131(10) (2016) 381.

DOI: 10.1140/epjp/i2016-16381-2

[18] Ş. Ţălu, S. Solaymani, M. Bramowicz, S. Kulesza, A. Ghaderi, S. Shahpouri, S.M. Elahi, Effect of electric field direction and substrate roughness on three-dimensional self-assembly growth of copper oxide nanowires. J. Mater. Sci. Mater. Electron., 27(9) (2016) 9272-9277.

DOI: 10.1007/s10854-016-4965-8

[19] M. Molamohammadi, C. Luna, A. Arman, S. Solaymani, A. Boochani, A. Ahmadpourian, A. Shafiekhani, Preparation and magnetoresistance behavior of nickel nanoparticles embedded in hydrogenated carbon film, J. Mater. Sci. Mater. Electron, 26(9) (2015) 6814–6818.

DOI: 10.1007/s10854-015-3294-7

[20] B. Bayatsarmadi, Y. Zheng, V. Russo, L. Ge, C. S. S. Casari, S. Qiao, Highly active nickel–cobalt/nanocarbon thin films as efficient water splitting electrodes, Nanoscale, 8(43) (2016) 18507-18515.

DOI: 10.1039/c6nr06961d

[21] N. Bouts, M. Gaillard, L. Donero, A.A. El Mel, E. Gautron, B. Angleraud, C. Boulmer-Leborgne, P.Y. Tessier, Growth control of carbon nanotubes using nanocomposite nickel/carbon thin films, Thin Solid Films, 630 (2017) 38–47.

DOI: 10.1016/j.tsf.2016.10.025

[22] N. Bouts, B. Angleraud, M.D. Ynsa, B. Humbert, M. Manso, A.A. El Mel, P.Y. Tessier, Electrical behavior of nickel/carbon nanocomposite thin films, Carbon, 111 (2017) 878-886.

DOI: 10.1016/j.carbon.2016.10.053

[23] S. Stach, Ż. Garczyk, Ş. Ţălu, S. Solaymani, A. Ghaderi, R. Moradian, B. Nezafat Negin, S.M. Elahi, H. Gholamali, Stereometric parameters of the Cu/Fe NPs thin films, J. Phys. Chem. C, 119(31) (2015) 17887–17898.

DOI: 10.1021/acs.jpcc.5b04676

[24] D. Dallaeva, Ş. Ţălu, S. Stach, P. Škarvada, P. Tománek, L. Grmela, AFM imaging and fractal analysis of surface roughness of AlN epilayers on sapphire substrates, Appl. Surf. Sci., 312 (2014) 81-86. DOI: 10.1016/ j.apsusc.2014.05.086.

DOI: 10.1016/j.apsusc.2014.05.086

[25] Ş. Ţălu, S. Stach, S. Valedbagi, R. Bavadi, S. M. Elahi, M. Ţălu, Multifractal characteristics of titanium nitride thin films. Materials Science-Poland, 33(3) (2015) 541-548.

DOI: 10.1515/msp-2015-0086

[26] Ş. Ţălu, I.A. Morozov, R.P. Yadav, Multifractal analysis of sputtered indium tin oxide thin film surfaces. Appl Surf Sci., 484 (2019) 892-898.

DOI: 10.1016/j.apsusc.2019.04.170

[27] MountainsMap® 7 Software (Digital Surf, Besançon, France). Information on http://www.digitalsurf.fr (last accessed October 10th, 2019).

[28] ISO 25178-2: 2012, Geometrical product specifications (GPS) - Surface texture: Areal - Part 2: Terms, definitions and surface texture parameters. Information on http://www.iso.org.

DOI: 10.3403/30154352u
