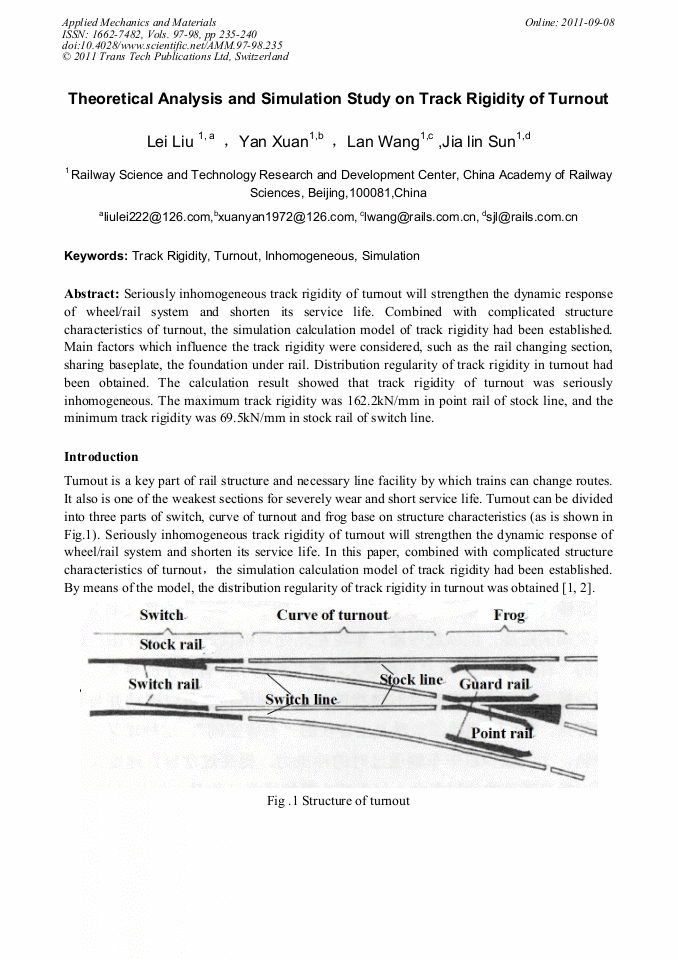

Theoretical Analysis and Simulation Study on Track Rigidity of Turnout

Abstract:

Seriously inhomogeneous track rigidity of turnout will strengthen the dynamic response of wheel/rail system and shorten its service life. Combined with complicated structure characteristics of turnout, the simulation calculation model of track rigidity had been established. Main factors which influence the track rigidity were considered, such as the rail changing section, sharing baseplate, the foundation under rail. Distribution regularity of track rigidity in turnout had been obtained. The calculation result showed that track rigidity of turnout was seriously inhomogeneous. The maximum track rigidity was 162.2kN/mm in point rail of stock line, and the minimum track rigidity was 69.5kN/mm in stock rail of switch line.

• Periodical: Applied Mechanics and Materials (Volumes 97-98)
• Pages: 235-240
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.97-98.235
• Online since: September 2011
• Authors: Lei Liu, Yan Xuan, Lan Wang, Jia Lin Sun
• Keywords: Inhomogeneous, Simulation, Track Rigidity, Turnout

References

[1] Ren Z S,et al. Study on lateral dynamic characteristics of vehicle/turnout system[J]. Vehicle System Dynamics, 2005, 23(4): 285-303

DOI: 10.1080/00423110500083262

[2] Elias K,et al. Simulation of dynamic interaction between train and railway turnout[J]. Vehicle System Dynamics, 2006, 44(3): 247-285

DOI: 10.1080/00423110500233487

[3] Yasuo S,et al.Characteristics of lateral force acting at guard rail on turnout[J].Q Rep RTRI(Jpn),1988,29(2):62-66

[4] Clasa A,Tore D.Load impacts at railway turnout crossing[J]. Vehicle System Dynamics, 2000, 33(suppl): 131-142

DOI: 10.1080/00423114.1999.12063076

[5] Kenney J T.Steady 2 state Vibrations of Beam on Elastic Foundation for Moving Load[J].Journal of Applied Mechanics,1954,21(12):36-43

DOI: 10.1115/1.4010934
