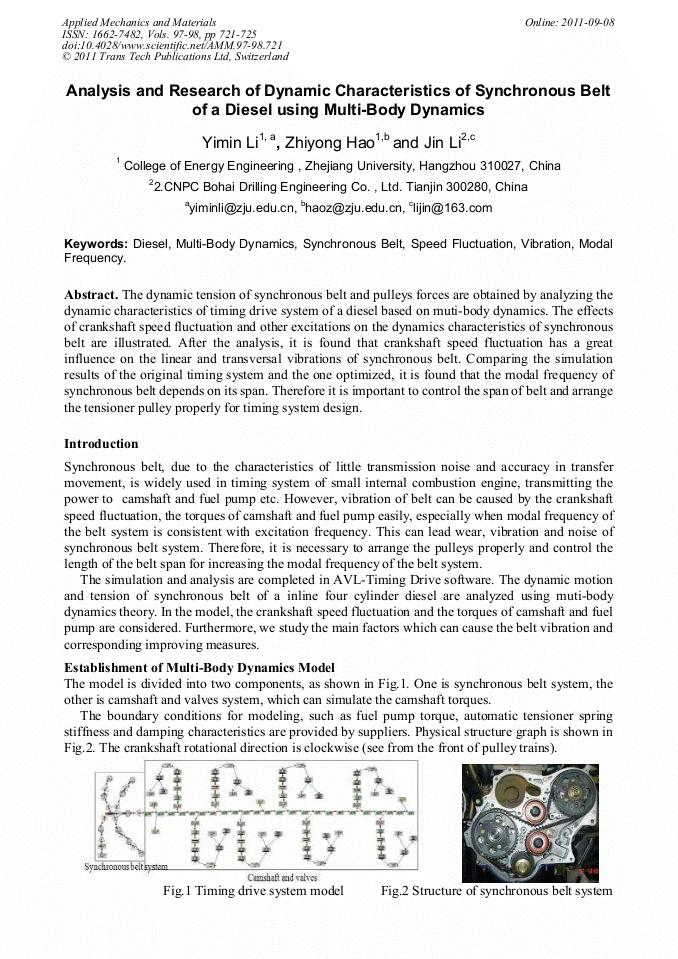

Analysis and Research of Dynamic Characteristics of Synchronous Belt of a Diesel Using Multi-Body Dynamics

Abstract:

The dynamic tension of synchronous belt and pulleys forces are obtained by analyzing the dynamic characteristics of timing drive system of a diesel based on muti-body dynamics. The effects of crankshaft speed fluctuation and other excitations on the dynamics characteristics of synchronous belt are illustrated. After the analysis, it is found that crankshaft speed fluctuation has a great influence on the linear and transversal vibrations of synchronous belt. Comparing the simulation results of the original timing system and the one optimized, it is found that the modal frequency of synchronous belt depends on its span. Therefore it is important to control the span of belt and arrange the tensioner pulley properly for timing system design.

• Periodical: Applied Mechanics and Materials (Volumes 97-98)
• Pages: 721-725
• DOI: https://doi.org/10.4028/www.scientific.net/AMM.97-98.721
• Online since: September 2011
• Authors: Yi Min Li, Zhi Yong Hao, Jin Li
• Keywords: Diesel, Modal Frequency, Multibody Dynamics (MBD), Speed Fluctuation, Synchronous Belt, Vibration
