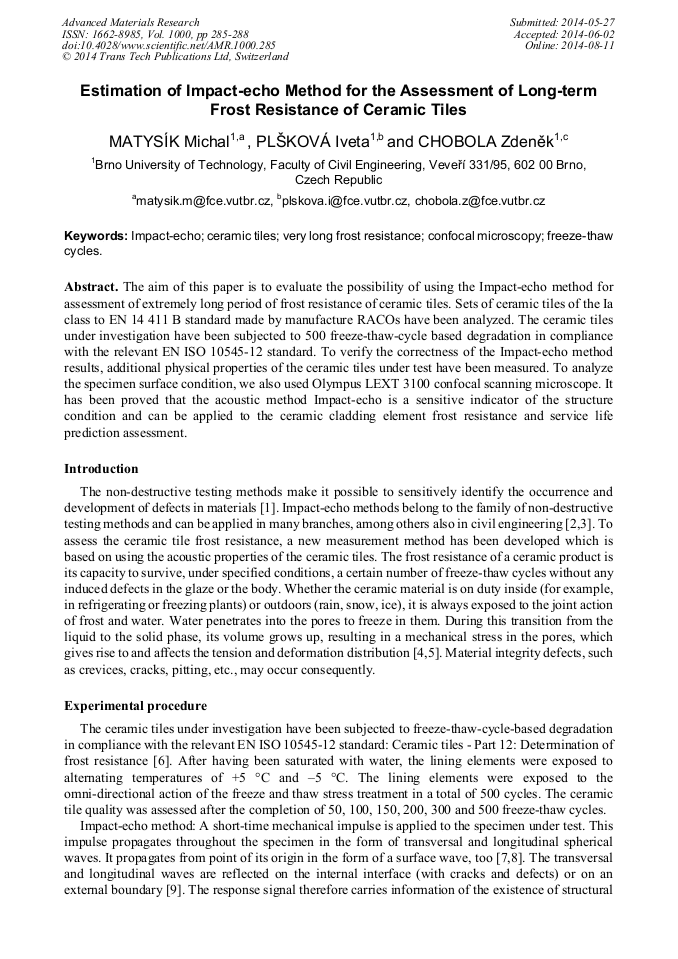

Estimation of Impact-Echo Method for the Assessment of Long-Term Frost Resistance of Ceramic Tiles

Abstract:

The aim of this paper is to evaluate the possibility of using the Impact-echo method for assessment of extremely long period of frost resistance of ceramic tiles. Sets of ceramic tiles of the Ia class to EN 14 411 B standard made by manufacture RACOs have been analyzed. The ceramic tiles under investigation have been subjected to 500 freeze-thaw-cycle based degradation in compliance with the relevant EN ISO 10545-12 standard. To verify the correctness of the Impact-echo method results, additional physical properties of the ceramic tiles under test have been measured. To analyze the specimen surface condition, we also used Olympus LEXT 3100 confocal scanning microscope. It has been proved that the acoustic method Impact-echo is a sensitive indicator of the structure condition and can be applied to the ceramic cladding element frost resistance and service life prediction assessment.

• Periodical: Advanced Materials Research (Volume 1000)
• Pages: 285-288
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1000.285
• Online since: August 2014
• Authors: Michal Matysík*, Iveta Plšková, Zdeněk Chobola
• Keywords: Ceramic Tiles, Confocal Microscopy, Freeze-Thaw Cycles, Impact-Echo, Very Long Frost Resistance

References

[1] H.S. Limaye and Krause R.J.: Nondestructive evaluation of concrete with impact-echo and pulse-velocity techniques. Materials Evaluation. 1991. 49(10). 1312–1315.

[2] M. Krause, M. Barmann, R. Frielinghaus, and et al.: Comparison of pulse-echo methods for testing concrete. NDT & E International. 1997. 30(4). 195–204.

DOI: 10.1016/s0963-8695(96)00056-4

[3] I. Plšková, Z. Chobola, M. Matysík: Assessment of ceramic tile frost resistance by means of the frequency inspection method. Ceramics-Silikáty. 2011. 55(2). pp.176-182. ISSN 0862-5468.

[4] T. Ficker: Quasi-static compressive strength of cement-based materials. Cement and Concrete Research. 2011. 41(1), 129–132.

DOI: 10.1016/j.cemconres.2010.09.005

[5] B. Kucharczykova, Z. Kersner, O. Pospichal, P. Misak, T. Vymazal: Influence of freeze-thaw cycles on fracture parameters values of lightweight concrete. Procedia Engineering. 2010. 2(1). pp.959-966. ISSN 1877-7058.

DOI: 10.1016/j.proeng.2010.03.104

[6] EN ISO 10545-12: 1997 Ceramic tiles - Part 12: Determination of frost resistance, European Committee for Standardization, Brussels, (1998).

[7] M. Matysík, L. Topolář, P. Daněk, T. Vymazal, I. Plšková: The Effect of Concrete Quality on the Acoustic Emission Parameters During Three-point Bending Fracture Test. Advanced Materials Research. 2014. 2014(897). pp.149-152. ISSN 1022-6680.

DOI: 10.4028/www.scientific.net/amr.897.149

[8] M. Kořenská, M. Manychová, L. Pazdera: Experimental study of the nonlinear effects generated in a concrete structure with damaged integrity. Russian Journal of Nondestructive Testing. 2013. 49(9). pp.530-537. ISSN 1061-8309.

DOI: 10.1134/s1061830913090040

[9] L. Topolář, L. Pazdera, P. Cikrle: Acoustic Emission Monitoring during Static Modulus Elasticity Test of Concrete Specimen. In 51st Annual of the International Scientific Conference on Experimental Stress Analysis, EAN 2013;, Applied Mechanics and Materials. 1. Switzerland. 2014. pp.267-272.

DOI: 10.4028/www.scientific.net/amm.486.267

[10] E. Cam, S. Orhan, and M. Luy: An analysis of cracked beam structure using impact echo method. NDT & E International. 2005. 38(5), 368–373.

DOI: 10.1016/j.ndteint.2004.10.009

[11] M. Luňák, I. Kusák, Z. Chobola: Dielectric Properties of Concrete Specimens after Heat Stress. Applied Mechanics and Materials. 2014. 2014(446). pp.1389-1394. ISSN 1660-9336.

DOI: 10.4028/www.scientific.net/amm.446-447.1389

[12] L. Pazdera, L. Topolář, H. Šimonová, P. Fojtů, J. Smutný, I. Havlíková, Z. Keršner, V. Rodriguezová: Determine Parameters for Double-K Model at Three-Point Bending by Application of Acoustic Emission Method. In 51st Annual of the International Scientific Conference on Experimental Stress Analysis, EAN 2013, Applied Mechanics and Materials. 1. Switzerland. 2014. pp.151-156.

DOI: 10.4028/www.scientific.net/amm.486.151

[13] CSN 73 6174 Determination of the modulus of elasticity and modulus of deformation by testing concrete for flexural strength, Czech Office for Standards, Metrology and Testing, Praha, (1994).

[14] ISO 4013 Concrete - Determination of flexural strength of test specimens, International Organization for Standardization, Geneva, (1978).
