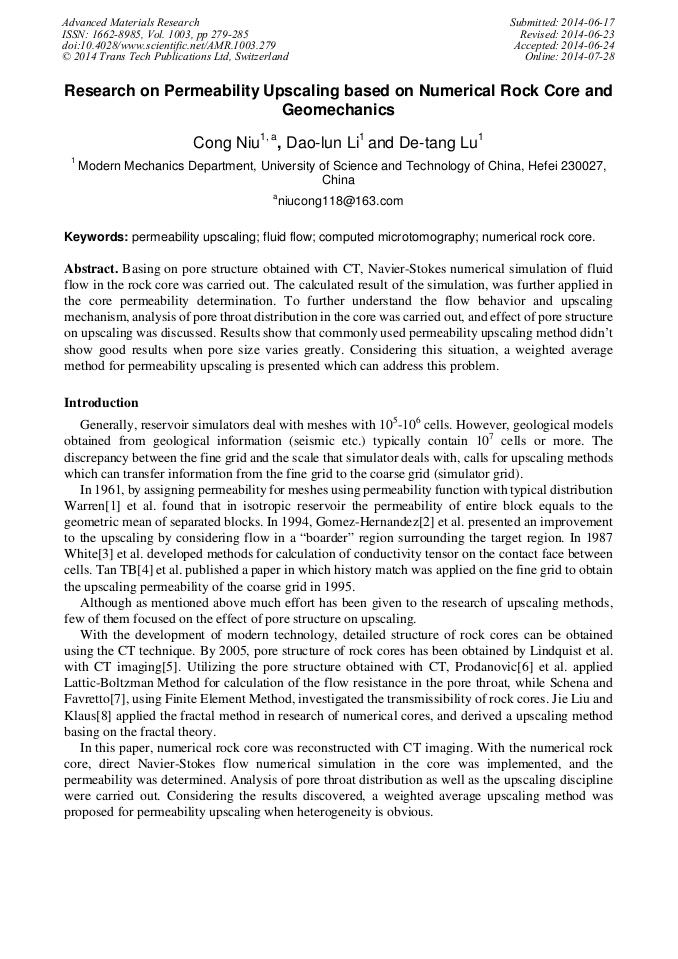

Research on Permeability Upscaling Based on Numerical Rock Core and Geomechanics

Abstract:

Basing on pore structure obtained with CT, Navier-Stokes numerical simulation of fluid flow in the rock core was carried out. The calculated result of the simulation, was further applied in the core permeability determination. To further understand the flow behavior and upscaling mechanism, analysis of pore throat distribution in the core was carried out, and effect of pore structure on upscaling was discussed. Results show that commonly used permeability upscaling method didn’t show good results when pore size varies greatly. Considering this situation, a weighted average method for permeability upscaling is presented which can address this problem.

• Periodical: Advanced Materials Research (Volume 1003)
• Pages: 279-285
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1003.279
• Online since: July 2014
• Authors: Cong Niu*, Dao Lun Li, De Tang Lu
• Keywords: Computed Microtomography, Fluid Flow, Numerical Rock Core, Permeability Upscaling

References

[1] Warren, J. and H. Price, SPE-001579-G-Flow in Heterogeneous Porous Media. Old SPE Journal, 1961. 1(3): pp.153-169.

[2] Gomez-Hernandez, J. and A. Journel, Stochastic characterization of gridblock permeabilities. SPE Formation Evaluation, 1994. 9(2): pp.93-99.

DOI: 10.2118/22187-pa

[3] White, C. and R. Horne. Computing absolute transmissibility in the presence of fine-scale heterogeneity. (1987).

DOI: 10.2118/16011-ms

[4] Tan, T. Estimating two and three dimensional pseudo-relative permeabilities with non-linear regression. (1995).

DOI: 10.2118/29129-ms

[5] Lindquist, W.B., et al., 3DMA-Rock: A software package for automated analysis of rock pore structure in 3-D computed microtomography images, (2005).

[6] Prodanovic, M., Fluid displacement in rock cores: a study based on three dimensional X-ray microtomography images, 2006, STATE UNIVERSITY OF NEW YORK AT STONY BROOK.

[7] Schena, G., et al., Pore Space Characterisation and Permeability Prediction Using Fast Network Extraction and Pore Throat Conductance Calculation, in Europec/EAGE Conference and Exhibition2008, Society of Petroleum Engineers: Rome, Italy.

DOI: 10.2118/113511-ms

[8] Liu, J. and K. Regenauer-Lieb, Application of percolation theory to microtomography of structured media: Percolation threshold, critical exponents, and upscaling. Physical Review E, 2011. 83(1): p.016106.

DOI: 10.1103/physreve.83.016106

[9] Ene, H.I.A., D. %B, Thermal flow in porous media1987. Medium: X; Size: Pages: 208.

[10] Deutsch, C., Calculating effective absolute permeability in sandstone/shale sequences. SPE Formation Evaluation, 1989. 4(3): pp.343-348.

DOI: 10.2118/17264-pa
