Numerical Simulation of Three Dimensional Unsteady Flow of the Ruston Turbine in Stirred Tank

Abstract:

Unsteady flow of a single six-blade ruston turbine in stirred tank is numerically simulated by using the large eddy simulation. Then the effect of the turbine installation position on mixing flow field is studied. The result shows that with a relatively low paddle installation position, mixing effect at the bottom of tank is obvious, while which go against the materials at the top layer mixing. When the paddle is installed at the top of the stirred tank, liquid splash and a concave downward liquid surface are easily caused. Finally the cavitation phenomenon is generated. When the paddle is installed from 1/3H to 2/3H, there are a uniform flow field distribution and higher average velocity flow. Large size vortex structures at the top and the bottom of the paddle are obvious which is beneficial to mix the materials.

You might also be interested in these eBooks

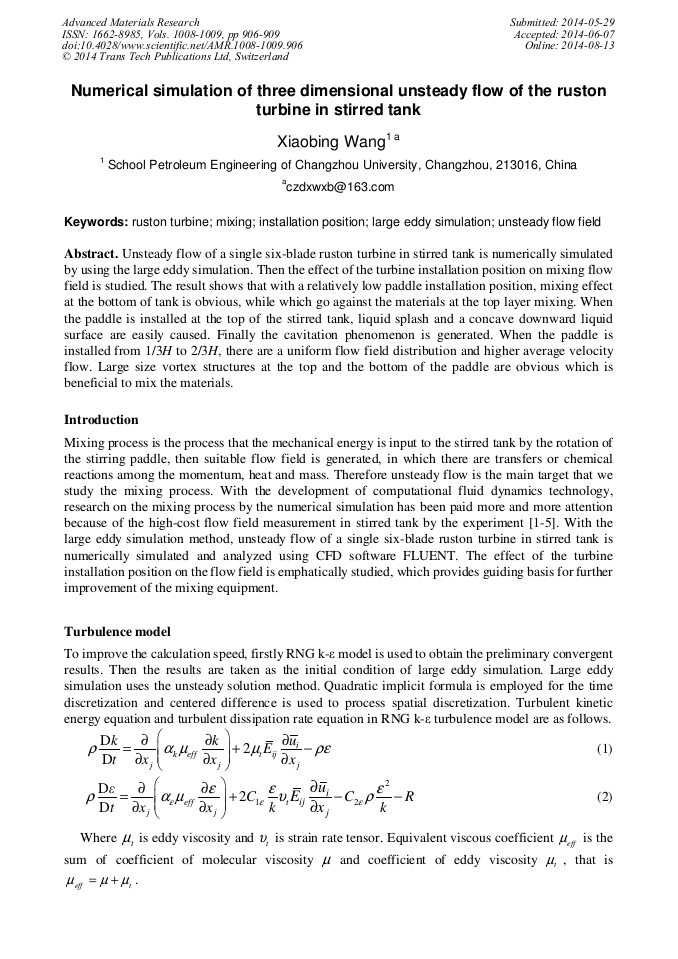

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1008-1009)

Pages:

906-909

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1008-1009.906

Citation:

Cite this paper

Online since:

August 2014

Authors:

Xiao Bing Wang*

Keywords:

Installation Position, Large Eddy Simulation, Mixing, Ruston Turbine, Unsteady Flow Field

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] I Z Jaworsk, I W Bujalsk, N Otiomo. CFD study of homogenization with dual Rushton turbines: Comparison with experimental results, J. Trans IChemE. Vol. 78A(2000), pp.327-333.

Google Scholar

[2] J Derksen, E A Harry, A Vanden. Large eddy simulations on the flow driven by a Rushton turbine, J. AIChE J. Vol. 45 (1999), pp.209-221.

DOI: 10.1002/aic.690450202

Google Scholar

[3] J Revsted, L Fuchs, C Tragardh. Large eddy simulation of the turbulent flow in a stirred reactor, J. Chem Eng Sci. Vol. 53 (1998), pp.4041-4053.

DOI: 10.1016/s0009-2509(98)00203-6

Google Scholar

[4] E Renaud, L Alain. Analysis of turbulence anisotropy in a mixing tank [J]. Chemical Engineering Science, 2006, 61: 2771-2779.

DOI: 10.1016/j.ces.2005.09.022

Google Scholar

[5] Y Chen, H Jiang, Y Y Bao, X B Huang. Turbulence properties of solid-liquid flow in the near-wall region stirred tank [J]. Journal of Chemical Engineering of Japan, 2011, 44(4): 224-232.

DOI: 10.1252/jcej.10we178

Google Scholar
