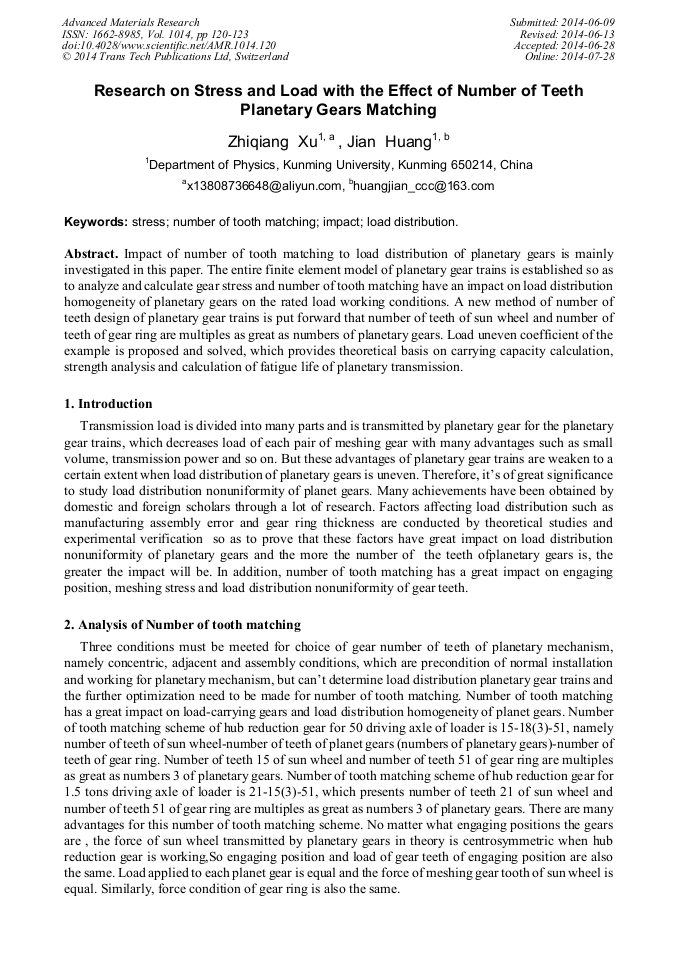

Research on Stress and Load with the Effect of Number of Teeth Planetary Gears Matching

Abstract:

Impact of number of tooth matching to load distribution of planetary gears is mainly investigated in this paper. The entire finite element model of planetary gear trains is established so as to analyze and calculate gear stress and number of tooth matching have an impact on load distribution homogeneity of planetary gears on the rated load working conditions. A new method of number of teeth design of planetary gear trains is put forward that number of teeth of sun wheel and number of teeth of gear ring are multiples as great as numbers of planetary gears. Load uneven coefficient of the example is proposed and solved, which provides theoretical basis on carrying capacity calculation, strength analysis and calculation of fatigue life of planetary transmission.

• Periodical: Advanced Materials Research (Volume 1014)
• Pages: 120-123
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1014.120
• Online since: July 2014
• Authors: Zhi Qiang Xu*, Jian Huang
• Keywords: Impact, Load Distribution, Number of Tooth Matching, Stress

References

[1] A. Kahraman, H. Ligata, A. Singh. Internal Gear Strains and Load Sharing in Planetary Transmissions: Model and Experiments [J]. ASME, 2010, 6: 95-103. Dj.M. Maric, P.F. Meier and S.K. Estreicher: Mater. Sci. Forum Vol. 83-87 (1992), p.119.

DOI: 10.1115/detc2007-35047

[2] Avinash Singh, Ahmet Kahraman, Haris Ligata. Internal Gear Strains and Load Sharing in Planetary Transmissions: Model and Experiments [J]. ASME, 2008, 130.M.A. Green: High Efficiency Silicon Solar Cells (Trans Tech Publications, Switzerland 1987).

DOI: 10.1115/1.2890110

[3] H. Ligata, A. Kahraman, A. Singh. An Experimental Study of the Impact of Manufacturing Errors on the Planetary Gear Stresses and Planet Load Sharing [J]. ASME, 2008, 130: .Y. Mishing, in: Diffusion Processes in Advanced Technological Materials, edtied by D. Gupta Noyes Publications/William Andrew Publising, Norwich, NY (2004).

DOI: 10.1115/1.2885194

[4] Avinash Singh. Application of a System Level Model to Study the Planetary Load Sharing Behavior [J]. ASME, 2005, 127: 469-476.G. Henkelman, G. Johannesson and H. Jónsson, in: Theoretical Methods in Condencsed Phase Chemistry, edited by S.D. Schwartz, volume 5 of Progress in Theoretical Chemistry and Physics, chapter, 10, Kluwer Academic Publishers (2000).

DOI: 10.1115/1.1864115

[5] Caichao Zhu , Jian Huang , Qian Tang. Study on Less Teeth Difference Planetary Gear Teeth and the Actual Contact Load Distribution [J]. China Mechanical Engineering. 2002, 13: 1586-1589.R.J. Ong, J.T. Dawley and P.G. Clem: submitted to Journal of Materials Research (2003).

[6] P.G. Clem, M. Rodriguez, J.A. Voigt and C.S. Ashley, U.S. Patent 6, 231, 666. (2001).

[7] Information on http: /www. weld. labs. gov. cn.
