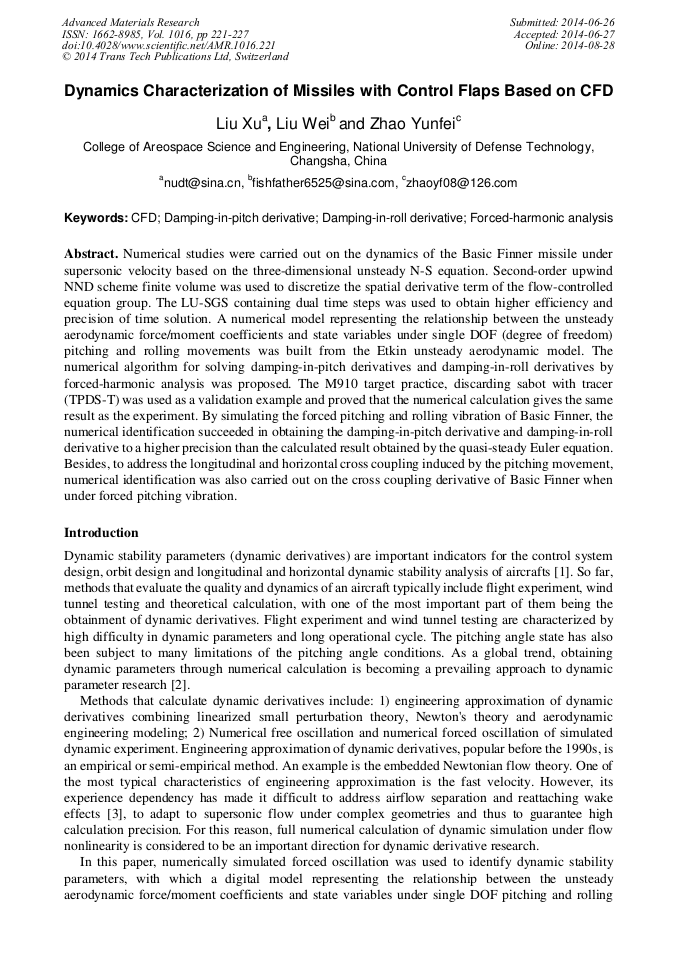

Dynamics Characterization of Missiles with Control Flaps Based on CFD

Abstract:

Numerical studies were carried out on the dynamics of the Basic Finner missile under supersonic velocity based on the three-dimensional unsteady N-S equation. Second-order upwind NND scheme finite volume was used to discretize the spatial derivative term of the flow-controlled equation group. The LU-SGS containing dual time steps was used to obtain higher efficiency and precision of time solution. A numerical model representing the relationship between the unsteady aerodynamic force/moment coefficients and state variables under single DOF (degree of freedom) pitching and rolling movements was built from the Etkin unsteady aerodynamic model. The numerical algorithm for solving damping-in-pitch derivatives and damping-in-roll derivatives by forced-harmonic analysis was proposed. The M910 target practice, discarding sabot with tracer (TPDS-T) was used as a validation example and proved that the numerical calculation gives the same result as the experiment. By simulating the forced pitching and rolling vibration of Basic Finner, the numerical identification succeeded in obtaining the damping-in-pitch derivative and damping-in-roll derivative to a higher precision than the calculated result obtained by the quasi-steady Euler equation. Besides, to address the longitudinal and horizontal cross coupling induced by the pitching movement, numerical identification was also carried out on the cross coupling derivative of Basic Finner when under forced pitching vibration.

• Periodical: Advanced Materials Research (Volume 1016)
• Pages: 221-227
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1016.221
• Online since: August 2014
• Authors: Xu Liu*, Wei Liu, Yun Fei Zhao
• Keywords: CFD, Damping-In-Pitch Derivative, Damping-In-Roll Derivative, Forced-Harmonic Analysis

References

[1] Da Ronch A. On the calculation of dynamic derivatives using computational fluid dynamics [D]; University of Liverpool, (2012).

[2] Liu W, Zhang H, Zhao H. Numerical simulation and physical characteristics analysis for slender wing rock [J]. Journal of aircraft, 2006, 43(3): 858-61.

DOI: 10.2514/1.18554

[3] Liu X, Zhao Y, Wang D, et al. Investigation of Dynamic Characteristics of Hypersonic Integrative Vehicle with Internal and External Flow [J]. Journal of Ballistics, 2013, 25(3): 38-43.

[4] Zhang H, Zhuang F. NND schemes and their applications to numerical simulation of two-and three-dimensional flows [J]. Advances in Applied Mechanics, 1992, 29(193): 764-85.

DOI: 10.1016/s0065-2156(08)70165-0

[5] Zhang L, Wang Z. A block LU-SGS implicit dual time-stepping algorithm for hybrid dynamic meshes [J]. Computers & fluids, 2004, 33(7): 891-916.

DOI: 10.1016/j.compfluid.2003.10.004

[6] Etkin B. Dynamics of atmospheric flight [M]. Courier Dover Publications, (2012).

[7] Wickert M, Salk M. Ballistics 2013: 27th International Symposium on Ballistics [M]. DEStech Publications, Inc, (2013).

[8] Sidra I. Silton. Navier-Stokes Computations for a Spinning Projectile From Subsonic to Supersonic Speeds [R]. ARL-TR-2850. (2002).

DOI: 10.2514/6.2003-3936

[9] James DeSpirito, Sidra I. Silton, Paul Weinacht. Navier–Stokes Predictions of Dynamic Stability Derivatives: Evaluation of Steady-State Methods [J]. Journal of Spacecraft and Rockets. (2009).

DOI: 10.2514/1.38666

[10] Paul Weinacht. Projectile Performance, Stability, and Free-Flight Motion Prediction Using Computational Fluid Dynamics [J]. Journal of Spacecraft and Rockets. (2004).

DOI: 10.2514/1.1037

[11] DeSpirito, Karen R. Heavey. CFD Computation of Magnus Moment and Roll Damping Moment of a Spinning Projectile. [R]. Rhode Island, USA: AIAA-2004-4713, (2004).

DOI: 10.2514/6.2004-4713

[12] Shantz I, Groves R T. Dynamic and Static Stability Measurements of the Basic Finner at Supersonic Speeds[R]. NAVORD Report 4516, Sept. (1960).

[13] Oktay E. CFD predictions of dynamic derivatives for missiles [C]. 40th AIAA Aerospace Sciences Meeting, (2002).

DOI: 10.2514/6.2002-276

[14] Regan F J. Roll Damping Moment Measurements for the Basic Finner at Subsonic and Supersonic Speeds [R]. NAVORD Report 6652, June (1964).

DOI: 10.21236/ad0600975

[15] Whyte R H. Spinner-a computer program for predicting the aerodynamic coefficients of spin stabilized projectiles [R]. Genera1 Electric Class 2 Reports, (1969).
