Modeling and Analysis of Kinetic Characteristics of a Gear-Linkage Mechanism

Abstract:

A gear-linkage mechanism, composed of a planetary gear mechanism and a four-bar mechanism, has the characteristic of step-cyclical output rotation under a reasonable geometric parameters. The analysis of stepping movement of the base unit and the motion characteristic of the combined mechanism was made, and the parameter equation was figured out. Motion simulation was carried out to analyze the influence of transmission ratio on the variation of the output shaft angular displacement, which proved that the output steps was in correspondence with , and as value of increasing, the rollback of the output motion was more apparent. The gear-linkage mechanism can be applied to engines, pumps and compressors.

You might also be interested in these eBooks

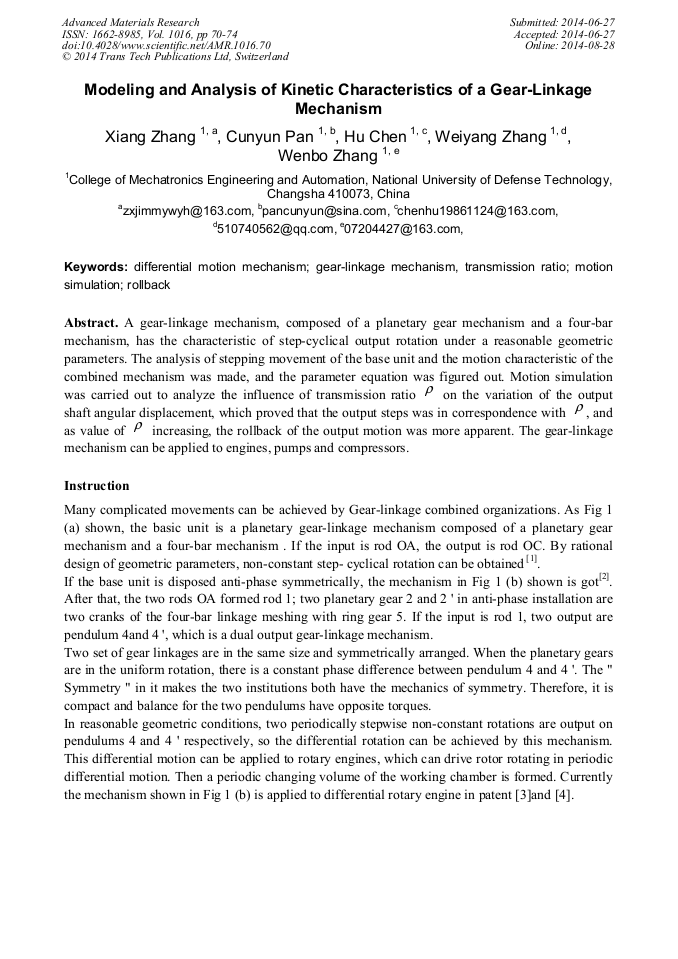

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1016)

Pages:

70-74

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1016.70

Citation:

Cite this paper

Online since:

August 2014

Authors:

Xiang Zhang*, Cun Yun Pan, Hu Chen, Wei Yang Zhang, Wen Bo Zhang

Keywords:

Differential Motion Mechanism, Geared Linkage Mechanism, Motion Simulation, Rollback, Transmission Ratio

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wenbo Zhang: Design and analysis on the transmission mechanism of differential blade compressor. Changsha : National University of Defense and Technology, 2010: 22-31.

Google Scholar

[2] Zhang Weiyang . Analysis of Dynamic Characteristics of the Power Transmission Equipment of a Differential Rotor Engine. Changsha : National University of Defense and Technology, 2011: 7-10.

Google Scholar

[3] Pan, C. -Y., Zhao,Y. -W. and Deng, H. A power transmission equipment of positive displacement machine. CN Patent 201110071446. X[P]. (2011).

Google Scholar

[4] Pan, C. -Y., Zhang,X. and Deng, H. A power transmission method of a positive displacement machine based on cycloid- linkage combined mechanism. CN Patent 201110071434. 7[P]. (2011).

Google Scholar

[5] DENG Hao, PAN Cunyun, XU Haijun, ZHANG xiang. Theoretical Research on the Power Transmission System of a Twin-rotor Piston Engine[J]. Chinese Journal of Mechanical Engineering, Vol. 48-1 (2012), pp.64-71.

DOI: 10.3901/jme.2012.01.064

Google Scholar

[6] Zhang Wen-bo，Pan Cun-yun，Deng Hao. The method of designing planar four-bar mechanism base on the transmission ratio required. Machine Design & Research. Vol. 26-6(2010), pp.23-26.

Google Scholar
