Investigations of the Ground Settlements of a Subway Station Constructed by the Method of Burning Shallow and Dig Invisible of Tunnel Construction

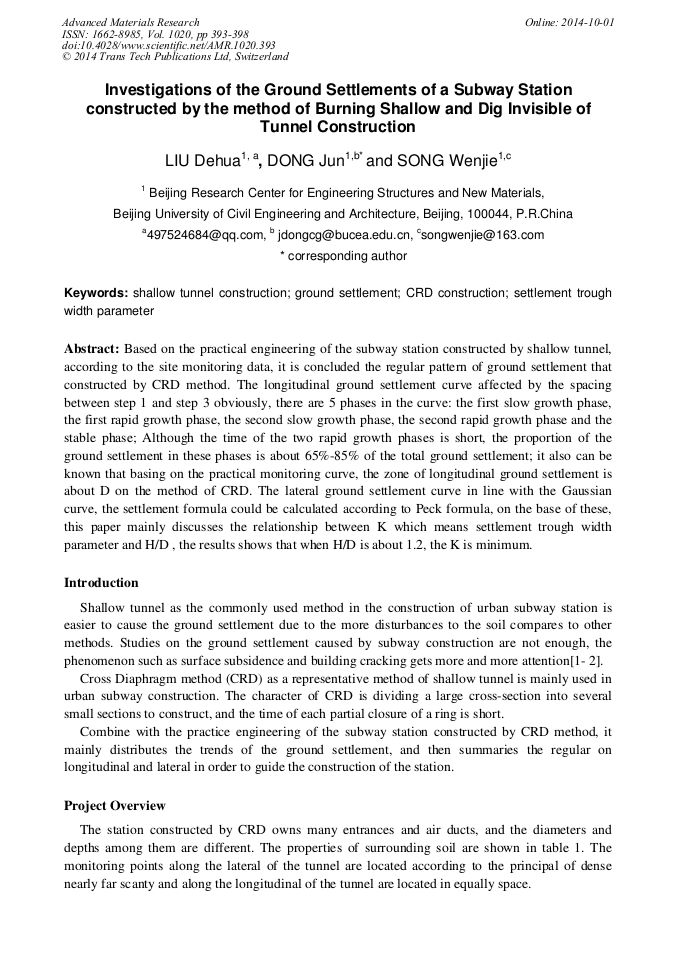

Abstract:

Based on the practical engineering of the subway station constructed by shallow tunnel, according to the site monitoring data, it is concluded the regular pattern of ground settlement that constructed in CRD method. The longitudinal ground settlement curve affected by the spacing between step 1 and step 3 obviously, there are 5 phases in the curve: the first slow growth phase, the first rapid growth phase, the second slow growth phase, the second rapid growth phase and the stable phase; Although the time of the two rapid growth phases is short, the proportion of the ground settlement in these phases is about 65%-85% of the total ground settlement; it also can be known that basing on the practical monitoring curve, the zone of longitudinal ground settlement is about D on the method of CRD. The lateral ground settlement curve in line with the Gaussian curve, the settlement formula could be calculated according to Peck formula, on the base of these, this paper mainly discusses the relationship between K which means settlement trough width parameter and H/D , the results shows that when H/D is about 1.2, the K is minimum.

• Periodical: Advanced Materials Research (Volume 1020)
• Pages: 393-398
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1020.393
• Online since: October 2014
• Authors: De Hua Liu, Jun Dong*, Wen Jie Song
• Keywords: CRD Construction, Ground Settlement, Settlement Trough Width Parameter, Shallow Tunnel Construction

References

[1] ZHOU Aiguo, Tunnel Construction Technology, first ed., China communications press, Beijing, (2004).

[2] Peck.R. B, Deep excavations and tunneling in soft ground State of the Art Report. Proc 17th Int. Conf. on Soil Mechanics and Foundation Engineering, Mexico City, 1969: 225-290.

[3] Attewell.P. B and Woodman.J. P(1982), Predicting the dynamics of ground settlement and its derivatives caused by tunneling in soil. Ground Engineering. Nov, 1982: 13-22.

[4] YAO Xuande, WANG Mengshu. Statistic Analysis of Guideposts for Ground settlement Induced by Shallow Tunnel Construction. Chinese Journal of Rock Mechanics and Engineering. 2006, 25(10): 2030-(2035).

[5] SHEN Peiliang, ZHANG Haibong, YIN Zongze. Ground Settlement Due to Shield Construction in Shanghai Metro Tunnel Project. Journal of Hohai University. 2003, 31(5): 556-559.

[6] ZHENG Pengwu, TAN Zhong, ZHU Yuansheng, ect. Application of Logistic Model in Prediction of Ground Sedimentation Caused by Subway Construction. China Safety Science Journal, 2006, 16(3): 24-31.

[7] ZHENG Baocai, CHENG Wenbin, HUN Weiguo. Analysis and Monitoring of Ground Subsidence Caused by Excavation of Adjacent and Crossing Metro Tunnel with Shallow-depth and Subsurface Excavation Method. Journal of Railway Engineering Society. 1(2009).

[8] HAN Xuan, LI Ning, J.R. Standing. An Adaptability Study of Gaussian Equation Applied to Predicting Ground Settlements Induced by Tunneling in China. Rock and Soil Mechanics. 2007, 28(1): 33-39.

[9] HAN Xuan, LI Ning, ect. Study on Subsurface Ground Movement Caused by Urban Tunneling. Rock and Soil Mechanics. 2007, 28(3): 609-613.

[10] WANG Ting, LIU Weining, etc. Study on Ground Settlement Induced by Shallow Metro Station Constructions. Chinese Journal of Rock Mechanics and Engineering. 2007, 26(9): 1855-1861.

[11] HAN Xuan. The Analysis and Prediction of Tunneling-induced Building Deformations. Xian: Xian University of Technology, (2006).
