Analysis of Current State and Integrity Evaluation for the Supply Tank of Generation Unit 6 of Thermal Power Plant Nikola Tesla ”A”, Obrenovac

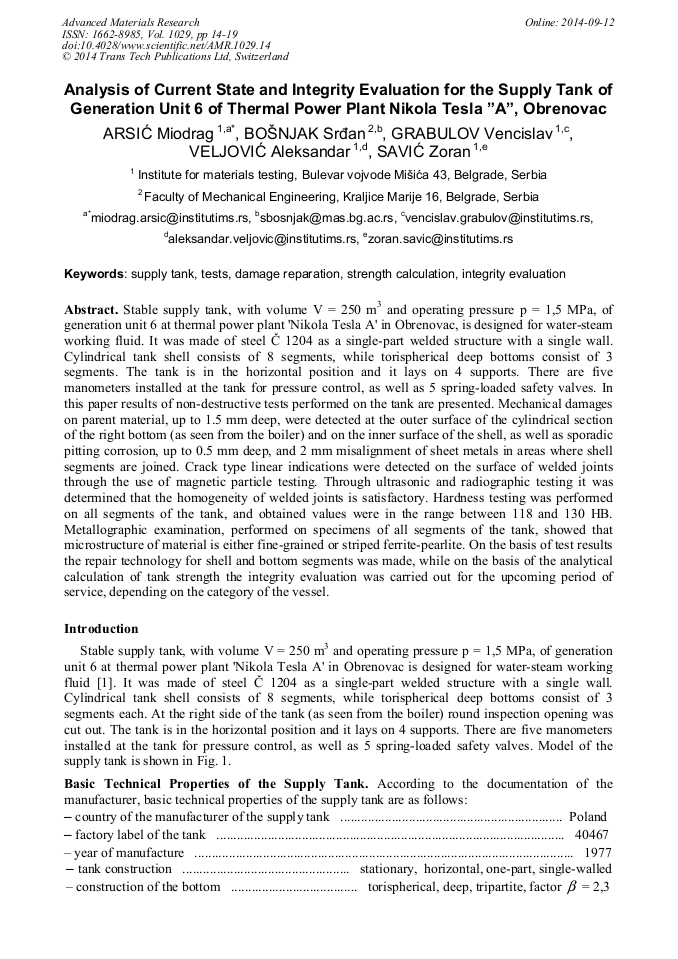

Abstract:

Stable supply tank, with volume V = 250 m³ and operating pressure p = 1,5 MPa, of generation unit 6 at thermal power plant 'Nikola Tesla A' in Obrenovac, is designed for water-steam working fluid. It was made of steel Č 1204 as a single-part welded structure with a single wall. Cylindrical tank shell consists of 8 segments, while torispherical deep bottoms consist of 3 segments. The tank is in the horizontal position and it lays on 4 supports. There are five manometers installed at the tank for pressure control, as well as 5 spring-loaded safety valves. In this paper results of non-destructive tests performed on the tank are presented. Mechanical damages on parent material, up to 1.5 mm deep, were detected at the outer surface of the cylindrical section of the right bottom (as seen from the boiler) and on the inner surface of the shell, as well as sporadic pitting corrosion, up to 0.5 mm deep, and 2 mm misalignment of sheet metals in areas where shell segments are joined. Crack type linear indications were detected on the surface of welded joints through the use of magnetic particle testing. Through ultrasonic and radiographic testing it was determined that the homogeneity of welded joints is satisfactory. Hardness testing was performed on all segments of the tank, and obtained values were in the range between 118 and 130 HB. Metallographic examination, performed on specimens of all segments of the tank, showed that microstructure of material is either fine-grained or striped ferrite-pearlite. On the basis of test results the repair technology for shell and bottom segments was made, while on the basis of the analytical calculation of tank strength the integrity evaluation was carried out for the upcoming period of service, depending on the category of the vessel.

• Periodical: Advanced Materials Research (Volume 1029)
• Pages: 14-19
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1029.14
• Online since: September 2014
• Authors: Miodrag Arsić*, Srđan M. Bošnjak, Vencislav Grabulov, Aleksandar Veljović, Zoran Savić
• Keywords: Damage Reparation, Integrity Evaluation, Strength Calculation, Supply Tank, Tests

References

[1] Documents of the Manufacturer for the supply reservoir, Poland, 1977.

[2] SRPS M. E2.159: Pressure vessels - Control of welding joints, Institute for Standardization of Serbia, 1998.

[3] EN 970: Non-destructive examination of fusion welds – Visual examination, European Committee for Standardization, 2003.

[4] EN 1290: Non-destructive testing of welds – Magnetic particle testing of welds, European Committee for Standardization, 2004.

DOI: 10.3403/2685598u

[5] EN 1291: Non-destructive testing of welds – Magnetic particle testing of welds – Acceptance levels, European Committee for Standardization, 2004.

DOI: 10.3403/2685598u

[6] EN 14127: Non-destructive testing – Ultrasonic thickness measurement, European Committee for Standardization, 2012.

[7] EN 1712: Non-destructive testing of welds – Ultrasonic testing of welded joints – Acceptance levels, European Committee for Standardization, 2007.

DOI: 10.3403/1337174

[8] EN ISO 5817: Welding – Fusion-welded joints in steel, nickel, titanium and their alloys (beam welding excluded) – Quality levels for imperfections, European Committee for Standardization, 2007.

DOI: 10.3403/30408358

[9] EN 1435: Non-destructive examination of welds – Radiographic examination of welded joints, European Committee for Standardization, 2007.

DOI: 10.3403/1859505

[10] ISO 1106-1: Recommended practice for radiographic examination of fusion welded joints, Part 1: Fusion welded butt joints in steel plates up to 50 mm thick, International Organization for Standardization, 1995.

DOI: 10.3403/00022312

[11] ISO 3057: Non-destructive testing, Metallographic replica techniques of surface examination, International Organization for Standardization, 2011.

DOI: 10.3403/01290376u

[12] EN ISO 643: Steels - Micrographic determination of the apparent grain size, European Committee for Standardization, 2012.

[13] EN 1024: Micrographic examination of the non-metallic inclusion content of steels using standard pictures, European Committee for Standardization, 2012.

DOI: 10.3403/30092927

[14] EN ISO 6506-1, Metallic materials, Brinell hardness test, International Organization for Standardization, 2011.

[15] М. A. Arsić, Repair technology for the supply tank No. TZ 421114-10028 ST, Institute for Materials Testing, 2012, Belgrade.

[16] The Pressure Equipment Directive 97/23/EC, 1997.

[17] SRPS M.E2.253: Pressure vessels – Cyllindrical and spherical shells subjected to internal pressure – Calculation, Institute for Standardization of Serbia, 1991.

[18] SRPS M.E0.020: Thermal power equipment and pressure vessels – Shallow dished heads – Shape and measures, Institute for Standardization of Serbia, 1991.

[19] SRPS M.E2.250: Pressure vessels – Calculation – General requirements, clause 9.2.1, Institute for Standardization of Serbia, 1991.
