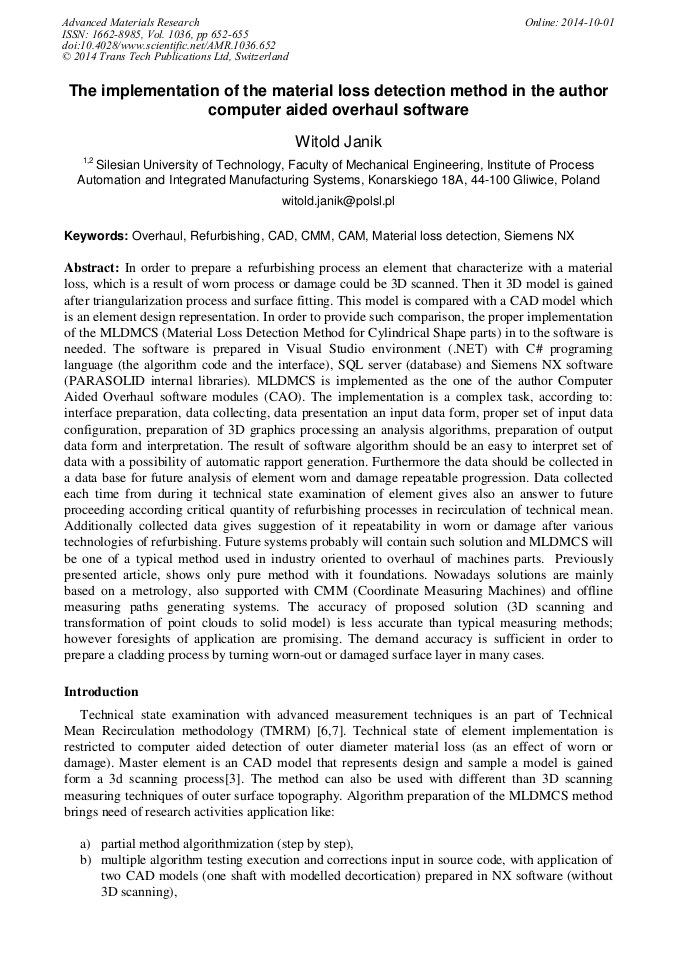

The Implementation of the Material Loss Detection Method in the Author Computer Aided Overhaul Software

Abstract:

In order to prepare a refurbishing process of an element that characterize with a material loss which is a result of worn process or damage could be 3D scanned. Then it 3D model is gained after triangularization process and surface fitting. This model is compared with a CAD model which is an element design representation. In order to provide such comparison, the proper implementation of the MLDMCS (Material Loss Detection Method for Cylindrical Shape parts) in to the software is needed. The software is prepared in Visual Studio environment (.NET) with C# programing language (the algorithm code and the interface), SQL server (database) and Siemens NX software (PARASOLID internal libraries). MLDMCS is implemented as the one of the author Computer Aided Overhaul software modules (CAO). The implementation is a complex task, according to: interface preparation, data collecting, data presentation an input data form, proper set of input data configuration, preparation of 3D graphics processing an analysis algorithms, preparation of output data form and interpretation. The result of software algorithm should be an easy to interpret set of data with a possibility of automatic rapport generation. Furthermore the data should be collected in a data base for future analysis of element worn and damage repeatable progression. Data collected each time from a element during it technical state examination gives also an answer to future proceeding according critical quantity of refurbishing processes in recirculation of technical mean. Additionally collected data gives suggestion of it repeatability in worn or damage after various technologies of refurbishing. Future systems probably will be set on such solution and MLDMCS will be one of typical method used in industry oriented to overhaul of machines parts. Previously presented article, shows only pure method with it foundations. Nowadays solutions are mainly based on a metrology, also supported with CMM (Coordinate Measuring Machines) and offline measuring paths generating systems. The accuracy of proposed solution (3D scanning and transformation of point clouds to solid model) is less accurate than typical measuring methods; however foresights of application are promising. The demand accuracy is sufficient in order to prepare a cladding process by turning worn-out or damaged surface layer.

• Periodical: Advanced Materials Research (Volume 1036)
• Pages: 652-655
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1036.652
• Online since: October 2014
• Authors: Witold Janik*
• Keywords: CAD, CAM, CMM, Material Loss Detection, Overhaul, Refurbishing, Siemens NX

References

[1] Ćwikła G., The methodology of development of the Manufacturing Information Acquisition System (MIAS) for production management. Applied Mechanics and Materials, Vol. 474 (2014), pp.27-32.

DOI: 10.4028/www.scientific.net/amm.474.27

[2] Dymarek A., Dzitkowski T., Method of active synthesis of discrete fixed mechanical systems, Journal of Vibroengineering, 14/2 (2012), pp.458-463.

[3] Grabowik C., Janik W.: The concrete casting matrixes inserts design preparation based on the master models. Advanced Materials Research Vol. 702 (2013), pp.259-262.

DOI: 10.4028/www.scientific.net/amr.702.259

[4] Hetmańczyk M.: The multilevel prognosis system based on matrices and digraphs methods [in: ] Mechatronic systems and materials V. [Eds: ] Z. Gosiewski, Z. Kulesza, Solid State Phenomena, vol. 199, Stafa-Zurich: Trans Tech Publications (2013).

DOI: 10.4028/www.scientific.net/ssp.199.79

[5] Janik W., The method of a material loss detection for cylindrical shape parts of elements with a 3D scanning application, International Journal of modern manufacturing Technologies, vol. 5 no. 2 (2013), pp.58-64.

[6] Janik W., Computer aided overhaul in expert system application - the disassembly module, Research Bulletin – Selected Engineering Problems, Silesian Uniwersity of Technology Publishing, 2/2011, no. 2, pp.151-158.

[7] Janik W., Computer aided overhaul in expert system application - the aggregation module, Research Bulletin – Selected Engineering Problems, Silesian Uniwersity of Technology Publishing, 2/2011, no. 2, pp.159-164.

[8] Kalinowski K.: Multistage decision making process of multicriteria production scheduling. Journal of Machine Engineering vol. 12 (2012), no. 3, pp.20-33.

[9] Malin V., Johnson N. R., Sciammarella M. F., Laser cladding helps refurbish US Navy ship components, Amptiac Quarterly, Volume 8 Number 3, New York, (2003).

[10] Paprocka I., Skołud B.: Robust scheduling, a production scheduling model of failures, Applied Mechanics and Materials Vol. 307 (2013), pp.443-446.

DOI: 10.4028/www.scientific.net/amm.307.443
