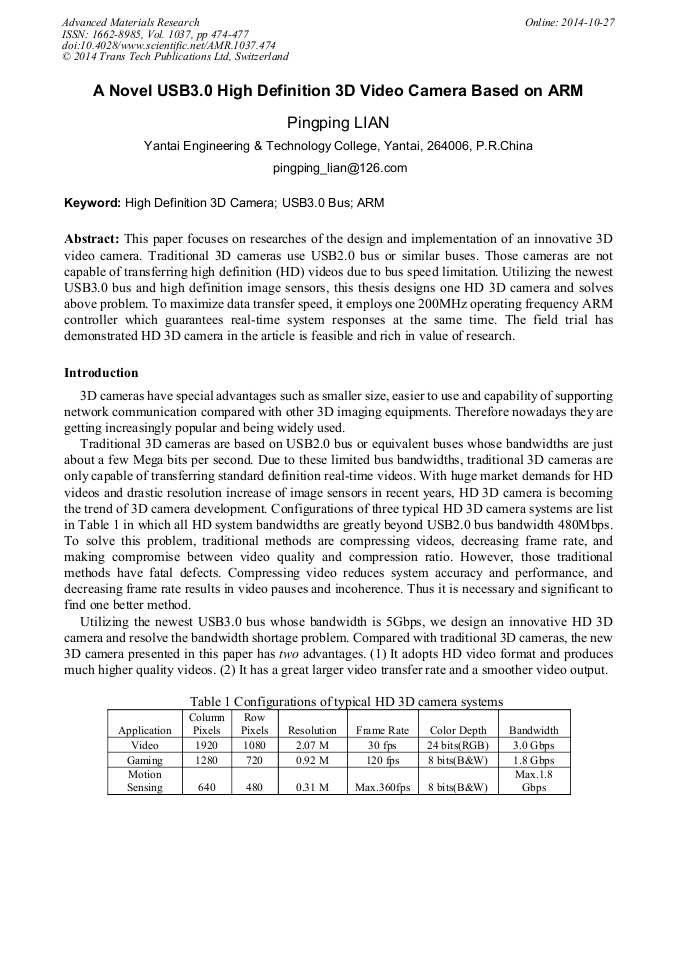

A Novel USB3.0 High Definition 3D Video Camera Based on ARM

Abstract:

This paper focuses on researches of the design and implementation of an innovative 3D video camera. Traditional 3D cameras use USB2.0 bus or similar buses. Those cameras are not capable of transferring high definition (HD) videos due to bus speed limitation. Utilizing the newest USB3.0 bus and high definition image sensors, this thesis designs one HD 3D camera and solves above problem. To maximize data transfer speed, it employs one 200MHz operating frequency ARM controller which guarantees real-time system responses at the same time. The field trial has demonstrated HD 3D camera in the article is feasible and rich in value of research.

• Periodical: Advanced Materials Research (Volume 1037)
• Pages: 474-477
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1037.474
• Online since: October 2014
• Authors: Ping Ping Lian*
• Keywords: ARM, High Definition 3D Camera, USB3.0 Bus

References

[1] Cheng Wen, et al: A low-cost, user-friendly, and real-time operating 3D camera. IEEE Transactions on Consumer Electronics, Vol. 51, Issue 4 (2005), pp.1085-1091.

DOI: 10.1109/tce.2005.1561828

[2] Aguirre, A., et al: Embedded stereoscopic 3D camera system for mobile platforms. 2012 IEEE International Conference on Acoustics, Speech and Signal Processing (2012), pp.1705-1708.

DOI: 10.1109/icassp.2012.6288226

[3] Holte, M.B. et al: Human pose estimation and activity recognition from multi-view videos: comparative explorations of recent developments. IEEE Journal of Selected Topics in Signal Processing, Vol. 6, Issue 5 (2012), pp.538-552.

DOI: 10.1109/jstsp.2012.2196975

[4] USB Implementers Forum, Inc.: Universal Serial Bus 3. 0 Specification revision 1. 0 (2011).

[5] Ligong Zhou, et al: Specification and developing guide of USB2. 0 and OTG (Beihang University Press, P.R. China 2004).

[6] Cypress Semiconductor: EZ-USB FX3 Technical Reference Manual (2013).

[7] Cypress Semiconductor: EZ-USB FX3 Super Speed USB Controller Datasheet (2013).

[8] Pingping Lian: USB2. 0 interface hardware circuit design based on DSP and Slave FIFO. Digital Technology & Application, Issue 1 (2012), p.46, 48.
